Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LBW7B-A1T3BLBW FLUSH PB MAIN. BLACK |
0 |
|
- |
LBW | Bulk | Active | Panel Mount, Front | Standard | 3PDT | On-On | 100mA (AC/DC) | 125 V | 30 V | Square, Button, Flush | No Marking | Black | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Square - 22.50mm x 22.50mm | -25°C ~ 60°C |
|
|
LBW7B-A1T3GLBW FLUSH PB MAIN. GREEN |
0 |
|
- |
LBW | Bulk | Active | Panel Mount, Front | Standard | 3PDT | On-On | 100mA (AC/DC) | 125 V | 30 V | Square, Button, Flush | No Marking | Green | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Square - 22.50mm x 22.50mm | -25°C ~ 60°C |
|
|
LBW7B-A1T3RLBW FLUSH PB MAIN. RED |
0 |
|
- |
LBW | Bulk | Active | Panel Mount, Front | Standard | 3PDT | On-On | 100mA (AC/DC) | 125 V | 30 V | Square, Button, Flush | No Marking | Red | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Square - 22.50mm x 22.50mm | -25°C ~ 60°C |
|
|
LBW7B-A1T3SLBW FLUSH PB MAIN. BLUE |
0 |
|
- |
LBW | Bulk | Active | Panel Mount, Front | Standard | 3PDT | On-On | 100mA (AC/DC) | 125 V | 30 V | Square, Button, Flush | No Marking | Blue | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Square - 22.50mm x 22.50mm | -25°C ~ 60°C |
|
|
LBW7B-A1T3VBLBW FLUSH PB MAIN. BLACK |
0 |
|
- |
LBW | Bulk | Active | Panel Mount, Front | Standard | 3PDT | On-On | 100mA (AC/DC) | 125 V | 30 V | Square, Button, Flush | No Marking | Black | - | - | PC Pin | IP65 - Dust Tight, Water Resistant | - | Square - 22.50mm x 22.50mm | -25°C ~ 60°C |
|
|
LBW7B-A1T3VGLBW FLUSH PB MAIN. GREEN |
0 |
|
- |
LBW | Bulk | Active | Panel Mount, Front | Standard | 3PDT | On-On | 100mA (AC/DC) | 125 V | 30 V | Square, Button, Flush | No Marking | Green | - | - | PC Pin | IP65 - Dust Tight, Water Resistant | - | Square - 22.50mm x 22.50mm | -25°C ~ 60°C |
|
|
LBW7B-A1T3VRLBW FLUSH PB MAIN. RED |
0 |
|
- |
LBW | Bulk | Active | Panel Mount, Front | Standard | 3PDT | On-On | 100mA (AC/DC) | 125 V | 30 V | Square, Button, Flush | No Marking | Red | - | - | PC Pin | IP65 - Dust Tight, Water Resistant | - | Square - 22.50mm x 22.50mm | -25°C ~ 60°C |
|
|
LBW7B-A1T3VSLBW FLUSH PB MAIN. BLUE |
0 |
|
- |
LBW | Bulk | Active | Panel Mount, Front | Standard | 3PDT | On-On | 100mA (AC/DC) | 125 V | 30 V | Square, Button, Flush | No Marking | Blue | - | - | PC Pin | IP65 - Dust Tight, Water Resistant | - | Square - 22.50mm x 22.50mm | -25°C ~ 60°C |
|
|
LBW7B-A1T3VWLBW FLUSH PB MAIN. WHITE |
0 |
|
- |
LBW | Bulk | Active | Panel Mount, Front | Standard | 3PDT | On-On | 100mA (AC/DC) | 125 V | 30 V | Square, Button, Flush | No Marking | White | - | - | PC Pin | IP65 - Dust Tight, Water Resistant | - | Square - 22.50mm x 22.50mm | -25°C ~ 60°C |
|
|
LBW7B-A1T3VYLBW FLUSH PB MAIN. YELLOW |
0 |
|
- |
LBW | Bulk | Active | Panel Mount, Front | Standard | 3PDT | On-On | 100mA (AC/DC) | 125 V | 30 V | Square, Button, Flush | No Marking | Yellow | - | - | PC Pin | IP65 - Dust Tight, Water Resistant | - | Square - 22.50mm x 22.50mm | -25°C ~ 60°C |
|
|
LBW7B-A1T3WLBW FLUSH PB MAIN. WHITE |
0 |
|
- |
LBW | Bulk | Active | Panel Mount, Front | Standard | 3PDT | On-On | 100mA (AC/DC) | 125 V | 30 V | Square, Button, Flush | No Marking | White | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Square - 22.50mm x 22.50mm | -25°C ~ 60°C |
|
|
LBW7B-A1T3YLBW FLUSH PB MAIN. YELLOW |
0 |
|
- |
LBW | Bulk | Active | Panel Mount, Front | Standard | 3PDT | On-On | 100mA (AC/DC) | 125 V | 30 V | Square, Button, Flush | No Marking | Yellow | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Square - 22.50mm x 22.50mm | -25°C ~ 60°C |
|
|
LBW7B-A1T7BLBW FLUSH PB MAIN. BLACK |
0 |
|
- |
LBW | Bulk | Active | Panel Mount, Front | Standard | 3PDT | On-On | 5A (AC/DC) | 125 V | 30 V | Square, Button, Flush | No Marking | Black | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Square - 22.50mm x 22.50mm | -25°C ~ 60°C |
|
|
LBW7B-A1T7GLBW FLUSH PB MAIN. GREEN |
0 |
|
- |
LBW | Bulk | Active | Panel Mount, Front | Standard | 3PDT | On-On | 5A (AC/DC) | 125 V | 30 V | Square, Button, Flush | No Marking | Green | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Square - 22.50mm x 22.50mm | -25°C ~ 60°C |
|
|
LBW7B-A1T7RLBW FLUSH PB MAIN. RED |
0 |
|
- |
LBW | Bulk | Active | Panel Mount, Front | Standard | 3PDT | On-On | 5A (AC/DC) | 125 V | 30 V | Square, Button, Flush | No Marking | Red | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Square - 22.50mm x 22.50mm | -25°C ~ 60°C |
|
|
LBW7B-A1T7SLBW FLUSH PB MAIN. BLUE |
0 |
|
- |
LBW | Bulk | Active | Panel Mount, Front | Standard | 3PDT | On-On | 5A (AC/DC) | 125 V | 30 V | Square, Button, Flush | No Marking | Blue | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Square - 22.50mm x 22.50mm | -25°C ~ 60°C |
|
|
LBW7B-A1T7WLBW FLUSH PB MAIN. WHITE |
0 |
|
- |
LBW | Bulk | Active | Panel Mount, Front | Standard | 3PDT | On-On | 5A (AC/DC) | 125 V | 30 V | Square, Button, Flush | No Marking | White | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Square - 22.50mm x 22.50mm | -25°C ~ 60°C |
|
|
LBW7B-A1T7YLBW FLUSH PB MAIN. YELLOW |
0 |
|
- |
LBW | Bulk | Active | Panel Mount, Front | Standard | 3PDT | On-On | 5A (AC/DC) | 125 V | 30 V | Square, Button, Flush | No Marking | Yellow | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Square - 22.50mm x 22.50mm | -25°C ~ 60°C |
|

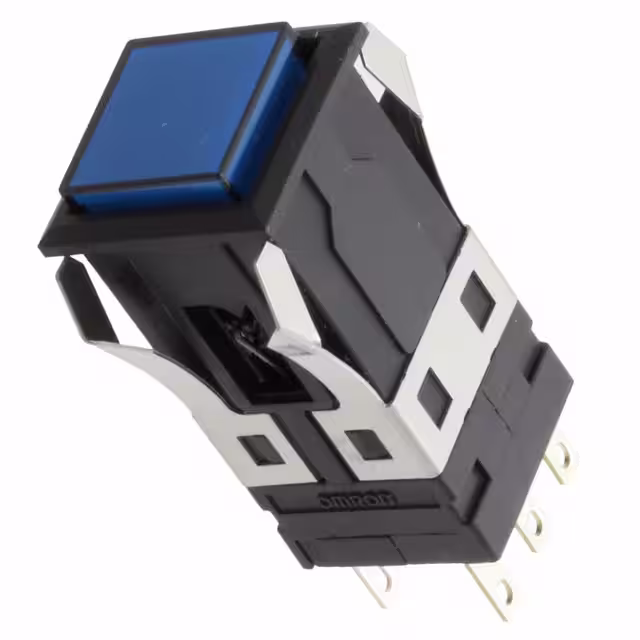

A3SA-90B1-24SASWITCH PUSHBUTTON SPDT 3A 125V |
4 |
|
Datasheet |
A3S | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 3A (AC), 2A (DC) | 125 V | 30 V | Square, Button | No Marking | Blue | LED, Blue | 24 VAC/DC | Quick Connect - 0.110" (2.8mm) | IP00 | - | Square - 16.20mm x 16.20mm | -10°C ~ 50°C |
|
|
PBAT5AF1000PUSHBUTTON SWITCH PBA PIEZO |
0 |
|
Datasheet |
PBA | Bulk | Active | Panel Mount, Front | Piezo | SPST-NO | Off-Mom | 200mA (AC/DC) | 24 V | 24 V | Round, Button, Flush | - | Blue | - | - | Wire Leads | IP68 - Dust Tight, Waterproof | - | Circular - 16.20mm Dia | -40°C ~ 75°C |
