Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
380LX181M450J452CAP ALUM 180UF 20% 450V SNAP TH |
0 |
|
Datasheet |
380LX | Bulk | Obsolete | 180 µF | ±20% | 450 V | 1.105Ohm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.4 A @ 120 Hz | 1.9 A @ 20 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
420BXW180MEFR18X45CAP ALUM 180UF 20% 420V RADIAL |
0 |
|
Datasheet |
BXW | Bulk | Active | 180 µF | ±20% | 420 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.1 A @ 120 Hz | 2.475 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
381LX391M250J032CAP ALUM 390UF 20% 250V SNAP TH |
0 |
|
Datasheet |
381LX | Bulk | Active | 390 µF | ±20% | 250 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.3 A @ 120 Hz | 1.8 A @ 20 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
380LQ122M180J052CAP ALUM 1200UF 20% 180V SNAP TH |
0 |
|
Datasheet |
380LQ | Bulk | Active | 1200 µF | ±20% | 180 V | 170mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.31 A @ 120 Hz | 4.63 A @ 20 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
380LQ271M350H452CAP ALUM 270UF 20% 350V SNAP TH |
0 |
|
Datasheet |
380LQ | Bulk | Active | 270 µF | ±20% | 350 V | 737mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.66 A @ 120 Hz | 2.32 A @ 20 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
380LQ331M315J042CAP ALUM 330UF 20% 315V SNAP TH |
0 |
|
Datasheet |
380LQ | Bulk | Active | 330 µF | ±20% | 315 V | 600mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.82 A @ 120 Hz | 2.55 A @ 20 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
381LQ153M035K042CAP ALUM 15000UF 20% 35V SNAP TH |
0 |
|
Datasheet |
381LQ | Bulk | Active | 15000 µF | ±20% | 35 V | 33mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.9 A @ 120 Hz | 4.49 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
ELG229M016AT2AACAP ALUM SNAP-IN 105C |
0 |
|
Datasheet |
ELG | Bulk | Active | 22 mF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.3 A @ 120 Hz | 3.828 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
250VXR390MEFCSN22X45CAP ALUM 390UF 20% 250V SNAP TH |
0 |
|
Datasheet |
VXR | Bulk | Not For New Designs | 390 µF | ±20% | 250 V | - | 7000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.3 A @ 120 Hz | 1.95 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
63VXG3300MEFCSN30X30CAP ALUM 3300UF 20% 63V SNAP TH |
0 |
|
Datasheet |
VXG | Bulk | Active | 3300 µF | ±20% | 63 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.15 A @ 120 Hz | 2.4725 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
B43509B9227M067CAP ALUM 400V POLAR |
0 |
|
Datasheet |
B43509 | Bulk | Active | 220 µF | ±20% | 400 V | 110mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.17 A @ 100 Hz | - | 530 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
160MXG820MEFCSN25X30CAP ALUM 820UF 20% 160V SNAP TH |
0 |
|
Datasheet |
MXG | Bulk | Active | 820 µF | ±20% | 160 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2 A @ 120 Hz | 3 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
380LX221M450J452CAP ALUM 220UF 20% 450V SNAP TH |
0 |
|
Datasheet |
380LX | Bulk | Obsolete | 220 µF | ±20% | 450 V | 754mOhm | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.4 A @ 120 Hz | 2 A @ 20 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|

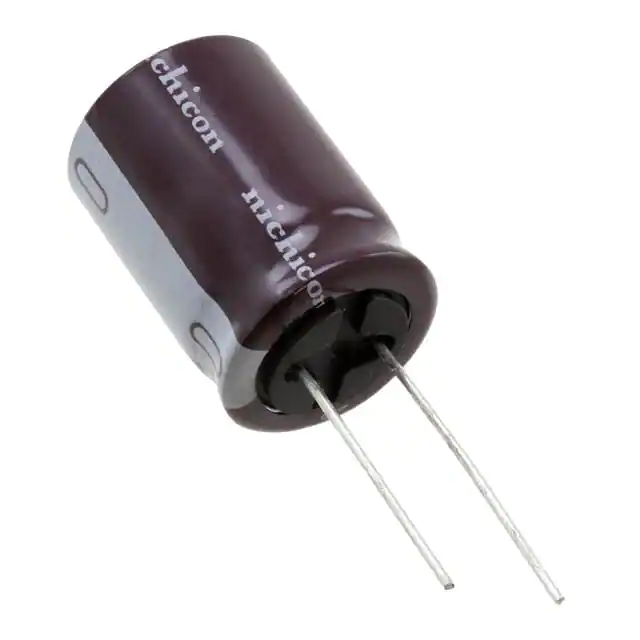

UCY2V820MHD3TNCAP ALUM 82UF 20% 350V RADIAL TH |
0 |
|
Datasheet |
UCY | Cut Tape (CT) | Active | 82 µF | ±20% | 350 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 765 mA @ 120 Hz | 1.53 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.043" (26.50mm) | - | Through Hole | |
|
|
UCM1E272MNJ1MSCAP ALUM 2700UF 20% 25V SMD |
0 |
|
Datasheet |
UCM | Tape & Reel (TR) | Active | 2700 µF | ±20% | 25 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 955 mA @ 120 Hz | 1.91 A @ 100 kHz | 47 mOhms | - | 0.630" Dia (16.00mm) | 0.689" (17.50mm) | 0.673" L x 0.673" W (17.10mm x 17.10mm) | Surface Mount | |
|
|
25MXC22000MEFC35X30CAP ALUM 22000UF 20% 25V SNAP TH |
0 |
|
Datasheet |
MXC | Bulk | Not For New Designs | 22000 µF | ±20% | 25 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.04 A @ 120 Hz | 4.646 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
420USG220MEFC30X25CAP ALUM 220UF 20% 420V SNAP TH |
0 |
|
Datasheet |
USG | Bulk | Active | 220 µF | ±20% | 420 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.65 A @ 120 Hz | 2.31 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
450MXG390MEFCSN30X40CAP ALUM 390UF 20% 450V SNAP TH |
0 |
|
Datasheet |
MXG | Bulk | Active | 390 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
50VXG5600MEFC35X30CAP ALUM 5600UF 20% 50V SNAP TH |
0 |
|
Datasheet |
VXG | Bulk | Active | 5600 µF | ±20% | 50 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.35 A @ 120 Hz | 2.7025 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
100VXG1200MEFC25X35CAP ALUM 1200UF 20% 100V SNAP TH |
0 |
|
Datasheet |
VXG | Bulk | Active | 1200 µF | ±20% | 100 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.76 A @ 120 Hz | 2.024 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole |
