Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ELXM251VSN471MQ40SCAP ALUM 470UF 20% 250V SNAP TH |
0 |
|
Datasheet |
LXM | Bulk | Active | 470 µF | ±20% | 250 V | - | 7000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.52 A @ 120 Hz | 2.28 A @ 50 kHz | - | 0.394" (10.00mm) | 1.000" Dia (25.40mm) | 1.654" (42.00mm) | - | Through Hole | |
|
B43624C5157M000CAP ALUM 150UF 20% 450V SNAP TH |
0 |
|
- |
B43624 | Bulk | Active | 150 µF | ±20% | 450 V | 720mOhm @ 100Hz | 8000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.21 A @ 100 Hz | - | 1.1 Ohms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
380LQ181M450J022CAP ALUM 180UF 20% 450V SNAP TH |
0 |
|
Datasheet |
380LQ | Bulk | Active | 180 µF | ±20% | 450 V | 1.105Ohm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.35 A @ 120 Hz | 1.89 A @ 20 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
SLPX122M200E4P3CAP ALUM 1200UF 20% 200V SNAP TH |
0 |
|
Datasheet |
SLPX | Bulk | Active | 1200 µF | ±20% | 200 V | 166mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.8 A @ 120 Hz | 5.59 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.772" (45.00mm) | - | Through Hole | |
|
SLP562M063E7P3CAP ALUM 5600UF 20% 63V SNAP TH |
0 |
|
Datasheet |
SLP0712TE (750W) | Bulk | Active | 5600 µF | ±20% | 63 V | 71mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.22 A @ 120 Hz | 4.03 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|
|
SLPX331M315E3P3CAP ALUM 330UF 20% 315V SNAP TH |
0 |
|
Datasheet |
SLPX | Bulk | Active | 330 µF | ±20% | 315 V | 603mOhm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.98 A @ 120 Hz | 2.91 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
381LX221M400H452CAP ALUM 220UF 20% 400V SNAP TH |
0 |
|
Datasheet |
381LX | Bulk | Active | 220 µF | ±20% | 400 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
LSM102M2D---3530SCAP ALUM 200V POLAR |
0 |
|
- |
LSM | Active | 1 mF | ±20% | 200 V | 199mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.51 A @ 120 Hz | 3.514 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | ||
|
|
PEH536VAD3100M2CAP ALUM SNAP-IN 105C |
0 |
|
Datasheet |
PEH536 | Box | Active | 100 µF | ±20% | 400 V | 870mOhm @ 100Hz | 4600 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 600 mA @ 100 Hz | 4.6 A @ 20 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
MAL211814332E3CAP ALUM 3300UF 20% 10V AXIAL TH |
0 |
|
Datasheet |
118 AHT | Bulk | Active | 3300 µF | ±20% | 10 V | 190mOhm | 8000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | Automotive | - | 1.284 A @ 10 kHz | 180 mOhms | - | 0.591" Dia x 1.181" L (15.00mm x 30.00mm) | - | - | Through Hole | |
|
|
PEH536MAD4180M2CAP ALUM SNAP-IN 105C |
0 |
|
Datasheet |
PEH536 | Box | Active | 1.8 mF | ±20% | 63 V | 100mOhm @ 100Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.9 A @ 100 Hz | 7.3 A @ 20 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
PEH506JAG4820M2CAP ALUM SNAP-IN 85C |
0 |
|
Datasheet |
PEH506 | Box | Active | 8.2 mF | ±20% | 35 V | 47mOhm @ 100Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5 A @ 100 Hz | 10.6 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
LKG1V682MESBBKCAP ALUM 6800UF 20% 35V SNAP TH |
0 |
|
Datasheet |
LKG | Bulk | Obsolete | 6800 µF | ±20% | 35 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 3.3 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.378" (35.00mm) | - | Through Hole | |
|

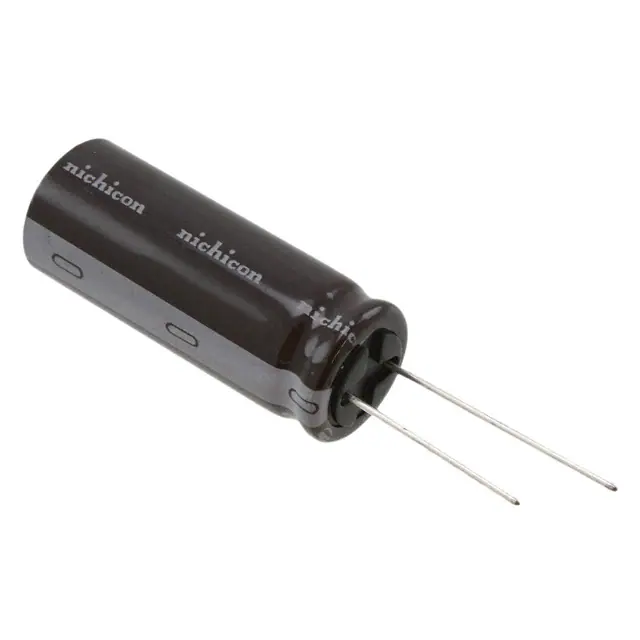

UPM1C562MHDCAP ALUM 5600UF 20% 16V RADIAL |
0 |
|
Datasheet |
UPM | Bulk | Not For New Designs | 5600 µF | ±20% | 16 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 2.79 A @ 120 Hz | 3.11 A @ 10 kHz | 19 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
ESMQ160ELL223MP40SCAP ALUM 22000UF 20% 16V RADIAL |
0 |
|
Datasheet |
SMQ | Bulk | Active | 22000 µF | ±20% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
380LX183M025K032CAP ALUM 18000UF 20% 25V SNAP TH |
0 |
|
Datasheet |
380LX | Bulk | Active | 18000 µF | ±20% | 25 V | 35mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.5 A @ 120 Hz | 6.3 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
ELH129M050AS6AACAP ALUM SNAP-IN 85C |
0 |
|
Datasheet |
ELH | Bulk | Active | 12 mF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.6 A @ 120 Hz | 6.496 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
MAL213244102E3CAP ALUM 1000UF 10V SNAP TH |
0 |
|
Datasheet |
132 ALL-DIN | Bulk | Active | 1000 µF | -10%, +50% | 10 V | 280mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 640 mA @ 100 Hz | - | - | - | 0.591" Dia (15.00mm) | 1.299" (33.00mm) | - | Through Hole | |
|
ELXM181VSN561MR25SCAP ALUM 560UF 20% 180V SNAP TH |
0 |
|
Datasheet |
LXM | Bulk | Active | 560 µF | ±20% | 180 V | - | 7000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.58 A @ 120 Hz | 2.37 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
ELG567M250AR5AACAP ALUM SNAP-IN 105C |
0 |
|
Datasheet |
ELG | Bulk | Active | 560 µF | ±20% | 250 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.8 A @ 120 Hz | 2.7 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.850" (47.00mm) | - | Through Hole |
