Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
420KXF120MEFCSN30X20CAP ALUM 120UF 20% 420V SNAP TH |
0 |
|
Datasheet |
KXF | Bulk | Active | 120 µF | ±20% | 420 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 700 mA @ 120 Hz | 980 mA @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
PEH534UBE3220M2CAP ALUM SNAP-IN HIGH RIPPLE |
0 |
|
Datasheet |
PEH534 | Box | Active | 220 µF | ±20% | 350 V | 560mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 900 mA @ 100 Hz | 5.8 A @ 20 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
381LX471M160J022CAP ALUM 470UF 20% 160V SNAP TH |
0 |
|
Datasheet |
381LX | Bulk | Obsolete | 470 µF | ±20% | 160 V | 423mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.4 A @ 120 Hz | 2 A @ 20 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
MAL204241689E3CAP ALUM 68UF 160V AXIAL TH |
0 |
|
Datasheet |
042 ASH | Tape & Box (TB) | Active | 68 µF | -10%, +50% | 160 V | 2.2Ohm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 420 mA @ 100 Hz | - | 1.4 Ohms | 0.689" (17.50mm) | 0.591" Dia (15.00mm) | 1.299" (33.00mm) | - | Through Hole | |
|
ELXS421VSN181MR25SCAP ALUM 180UF 20% 420V SNAP TH |
0 |
|
Datasheet |
LXS | Bulk | Active | 180 µF | ±20% | 420 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.06 A @ 120 Hz | 1.5158 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.083" (27.50mm) | - | Through Hole | |
|
450MXC150MEFCSN25X35CAP ALUM 150UF 20% 450V SNAP TH |
0 |
|
Datasheet |
MXC | Bulk | Not For New Designs | 150 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 880 mA @ 120 Hz | 1.232 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
B43630B9227M067CAP ALUM 400V POLAR |
0 |
|
Datasheet |
B43630 | Bulk | Active | 220 µF | ±20% | 400 V | 470mOhm @ 100Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.41 A @ 100 Hz | - | 700 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
400SXC150MEFCSN22X45CAP ALUM 150UF 20% 400V SNAP TH |
0 |
|
Datasheet |
SXC | Bulk | Active | 150 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 850 mA @ 120 Hz | 977.5 mA @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
LSG122M2C---3535SCAP ALUM 160V POLAR |
0 |
|
- |
LSG | Active | 1.2 mF | ±20% | 160 V | 166mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.5 A @ 120 Hz | 3.75 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | ||
|
LGJ2E471MELC20CAP ALUM 470UF 20% 250V SNAP TH |
0 |
|
Datasheet |
LGJ | Bulk | Active | 470 µF | ±20% | 250 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.47 A @ 120 Hz | 2.205 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
SLP821M180C7P3CAP ALUM 820UF 20% 180V SNAP TH |
0 |
|
Datasheet |
SLP0712TE (750W) | Bulk | Active | 820 µF | ±20% | 180 V | 243mOhm | 3000 Hrs @ 105°C | -25°C ~ 105°C | - | - | General Purpose | - | - | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|
SLPX271M385C7P3CAP ALUM 270UF 20% 385V SNAP TH |
0 |
|
Datasheet |
SLPX | Bulk | Active | 270 µF | ±20% | 385 V | 737mOhm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.61 A @ 120 Hz | 2.37 A @ 20 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
381LQ103M050J052CAP ALUM 10000UF 20% 50V SNAP TH |
0 |
|
Datasheet |
381LQ | Bulk | Active | 10000 µF | ±20% | 50 V | 41mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4 A @ 120 Hz | 4.6 A @ 20 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
|
381LQ151M450H032CAP ALUM 150UF 20% 450V SNAP TH |
0 |
|
Datasheet |
381LQ | Bulk | Active | 150 µF | ±20% | 450 V | 1.327Ohm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 800 mA @ 120 Hz | 1.1 A @ 20 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
381LQ181M420H042CAP ALUM 180UF 20% 420V SNAP TH |
0 |
|
Datasheet |
381LQ | Bulk | Active | 180 µF | ±20% | 420 V | 1.1Ohm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 900 mA @ 120 Hz | 1.3 A @ 20 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
LSK121M2H---2245SCAP ALUM 500V POLAR |
0 |
|
- |
LSK | Active | 120 µF | ±20% | 500 V | 1.659Ohm @ 120Hz | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 620 mA @ 120 Hz | 868 mA @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.850" (47.00mm) | - | Through Hole | ||
|
|
PEH532JBF5100M2CAP ALUM SNAP-IN 105C |
0 |
|
Datasheet |
PEH532 | Box | Active | 10 mF | ±20% | 35 V | 43mOhm @ 100Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.3 A @ 100 Hz | 9 A @ 20 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
80MXG2700MEFCSN25X35CAP ALUM 2700UF 20% 80V SNAP TH |
0 |
|
Datasheet |
MXG | Bulk | Active | 2700 µF | ±20% | 80 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.39 A @ 120 Hz | 2.7485 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|

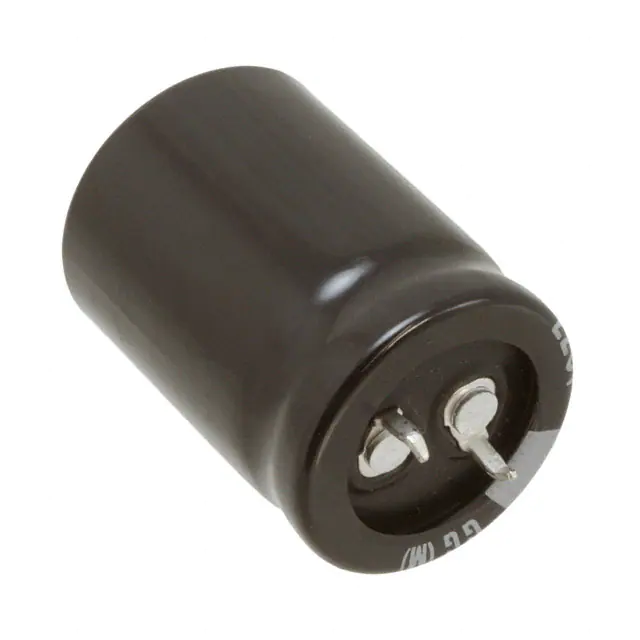

LGG2P681MELA35CAP ALUM 680UF 20% 220V SNAP TH |
0 |
|
Datasheet |
LGG | Bulk | Active | 680 µF | ±20% | 220 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.78 A @ 120 Hz | 2.67 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
LAQ2D331MELA25CAP ALUM 330UF 20% 200V SNAP TH |
0 |
|
Datasheet |
LAQ | Bulk | Active | 330 µF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.2 A @ 120 Hz | 1.44 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.063" (27.00mm) | - | Through Hole |
