Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LAQ2P181MELA25CAP ALUM 180UF 20% 220V SNAP TH |
0 |
|
Datasheet |
LAQ | Bulk | Active | 180 µF | ±20% | 220 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 700 mA @ 120 Hz | 840 mA @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
LAQ2P221MELZ30CAP ALUM 220UF 20% 220V SNAP TH |
0 |
|
Datasheet |
LAQ | Bulk | Active | 220 µF | ±20% | 220 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 900 mA @ 120 Hz | 1.08 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
LGY1K272MELB30CAP ALUM 2700UF 20% 80V SNAP TH |
0 |
|
Datasheet |
LGY | Bulk | Active | 2700 µF | ±20% | 80 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.2 A @ 120 Hz | 2.53 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
LQS2V271MELB25CAP ALUM 270UF 20% 350V SNAP TH |
0 |
|
Datasheet |
LQS | Bulk | Active | 270 µF | ±20% | 350 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.1 A @ 120 Hz | 1.573 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
MAL225638222E3CAP ALUM 2200UF 20% 63V SNAP TH |
0 |
|
- |
256 PMG-SI | Box | Active | 2200 µF | ±20% | 63 V | 181mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.6 A @ 120 Hz | 1.92 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
LSM681M2E---3530SCAP ALUM 250V POLAR |
0 |
|
- |
LSM | Active | 680 µF | ±20% | 250 V | 293mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.06 A @ 120 Hz | 2.884 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | ||
|

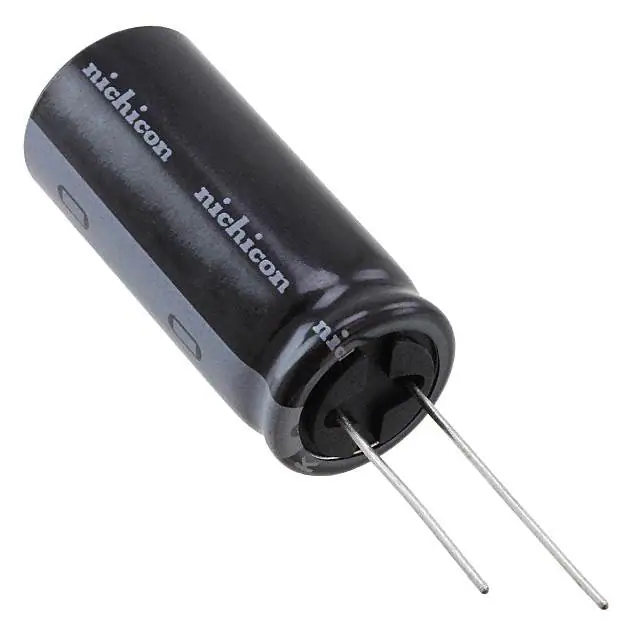

UKL1E332MHDCAP ALUM 3300UF 20% 25V RADIAL |
2 |
|
Datasheet |
UKL | Bulk | Not For New Designs | 3300 µF | ±20% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.72 A @ 120 Hz | 1.978 A @ 10 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.634" (41.50mm) | - | Through Hole | |
|
|
LSM332M2A---3045SCAP ALUM 100V POLAR |
0 |
|
- |
LSM | Active | 3.3 mF | ±20% | 100 V | 80mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.11 A @ 120 Hz | 4.354 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | ||
|
|
PEH536SBE3330M3CAP ALUM SNAP-IN 105C |
0 |
|
Datasheet |
PEH536 | Box | Active | 330 µF | ±20% | 250 V | 300mOhm @ 100Hz | 4600 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1 A @ 100 Hz | 8.1 A @ 20 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
381LX822M035K022CAP ALUM 8200UF 20% 35V SNAP TH |
0 |
|
Datasheet |
381LX | Bulk | Obsolete | 8200 µF | ±20% | 35 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.9 A @ 120 Hz | 3.3 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
100USC2200MEFC25X35CAP ALUM 2200UF 20% 100V SNAP TH |
0 |
|
Datasheet |
USC | Bulk | Not For New Designs | 2200 µF | ±20% | 100 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.12 A @ 120 Hz | 3.588 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
180USC1000MEFC30X30CAP ALUM 1000UF 20% 180V SNAP TH |
0 |
|
Datasheet |
USC | Bulk | Not For New Designs | 1000 µF | ±20% | 180 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.1 A @ 120 Hz | 4.65 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
220KXF220MEFC25X20CAP ALUM 220UF 20% 220V SNAP TH |
0 |
|
Datasheet |
KXF | Bulk | Active | 220 µF | ±20% | 220 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 850 mA @ 120 Hz | 1.275 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
|
250KXF390MEFC35X20CAP ALUM 390UF 20% 250V SNAP TH |
0 |
|
Datasheet |
KXF | Bulk | Active | 390 µF | ±20% | 250 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.25 A @ 120 Hz | 1.875 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
|
315VXH330MEFC22X45CAP ALUM 330UF 20% 315V SNAP TH |
0 |
|
Datasheet |
VXH | Bulk | Active | 330 µF | ±20% | 315 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.69 A @ 120 Hz | 2.366 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
350KXF180MEFC35X20CAP ALUM 180UF 20% 350V SNAP TH |
0 |
|
Datasheet |
KXF | Bulk | Active | 180 µF | ±20% | 350 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 850 mA @ 120 Hz | 1.19 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
|
400MXH680MEFC35X40CAP ALUM 680UF 20% 400V SNAP TH |
0 |
|
Datasheet |
MXH | Bulk | Active | 680 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.15 A @ 120 Hz | 3.01 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
LLG2C152MELC25CAP ALUM 1500UF 20% 160V SNAP TH |
0 |
|
Datasheet |
LLG | Bulk | Active | 1500 µF | ±20% | 160 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.4 A @ 120 Hz | 5.1 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
ELH108M250AS5AVCAP ALUM SNAP-IN 85C |
0 |
|
Datasheet |
ELH | Bulk | Active | 1 mF | ±20% | 250 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 3.3 A @ 120 Hz | 4.95 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
LAKW6151MELA40CAP ALUM 150UF 20% 420V SNAP TH |
0 |
|
Datasheet |
LAK | Bulk | Active | 150 µF | ±20% | 420 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 820 mA @ 120 Hz | 943 mA @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole |
