Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ALC80D221BB250CAP ALUM 220UF 20% 250V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 220 µF | ±20% | 250 V | 796mOhm @ 100Hz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.17 A @ 100 Hz | 2.7 A @ 10 kHz | 469 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
ALC80F221BB250CAP ALUM 220UF 20% 250V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 220 µF | ±20% | 250 V | 796mOhm @ 100Hz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.17 A @ 100 Hz | 2.7 A @ 10 kHz | 469 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
LKX2D561MESA35CAP ALUM 560UF 20% 200V SNAP TH |
0 |
|
Datasheet |
LKX | Bulk | Active | 560 µF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | Audio | 1.6 A @ 120 Hz | 2.4 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
ELXM161VSN821MR30SCAP ALUM 820UF 20% 160V SNAP TH |
0 |
|
Datasheet |
LXM | Bulk | Active | 820 µF | ±20% | 160 V | - | 7000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.96 A @ 120 Hz | 2.94 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
UKA0J682MHDCAP ALUM 6800UF 20% 6.3V RADIAL |
0 |
|
Datasheet |
UKA | Bulk | Not For New Designs | 6800 µF | ±20% | 6.3 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Audio | 1.36 A @ 120 Hz | 1.564 A @ 10 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.457" (37.00mm) | - | Through Hole | |
|

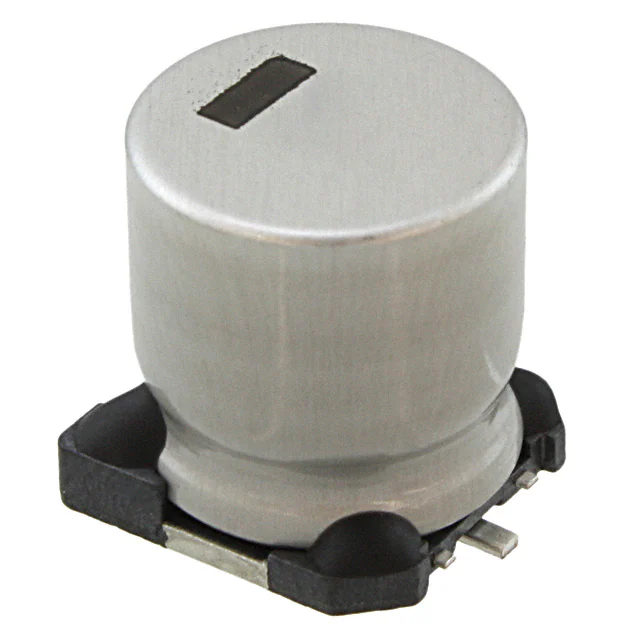

MAL216099601E3CAP ALUM 330UF 20% 25V SMD |
0 |
|
Datasheet |
160 CLA | Tape & Reel (TR) | Active | 330 µF | ±20% | 25 V | - | 1250 Hrs @ 150°C | -55°C ~ 150°C | Polar | AEC-Q200 | Automotive | - | 650 mA @ 100 kHz | 80 mOhms | - | 0.492" Dia (12.50mm) | 0.551" (14.00mm) | 0.508" L x 0.508" W (12.90mm x 12.90mm) | Surface Mount | |
|
|
MAL216099102E3CAP ALUM 150UF 20% 50V SMD |
0 |
|
Datasheet |
160 CLA | Tape & Reel (TR) | Active | 150 µF | ±20% | 50 V | - | 1250 Hrs @ 150°C | -55°C ~ 150°C | Polar | AEC-Q200 | Automotive | - | 450 mA @ 100 kHz | 120 mOhms | - | 0.492" Dia (12.50mm) | 0.551" (14.00mm) | 0.508" L x 0.508" W (12.90mm x 12.90mm) | Surface Mount | |
|
|
MAL216099502E3CAP ALUM 680UF 20% 16V SMD |
0 |
|
Datasheet |
160 CLA | Tape & Reel (TR) | Active | 680 µF | ±20% | 16 V | - | 1250 Hrs @ 150°C | -55°C ~ 150°C | Polar | AEC-Q200 | Automotive | - | 800 mA @ 100 kHz | 80 mOhms | - | 0.492" Dia (12.50mm) | 0.551" (14.00mm) | 0.508" L x 0.508" W (12.90mm x 12.90mm) | Surface Mount | |
|
|
MAL216099002E3CAP ALUM 330UF 20% 35V SMD |
0 |
|
Datasheet |
160 CLA | Tape & Reel (TR) | Active | 330 µF | ±20% | 35 V | - | 1250 Hrs @ 150°C | -55°C ~ 150°C | Polar | AEC-Q200 | Automotive | - | 650 mA @ 100 kHz | 80 mOhms | - | 0.492" Dia (12.50mm) | 0.551" (14.00mm) | 0.508" L x 0.508" W (12.90mm x 12.90mm) | Surface Mount | |
|
|
MAL216099501E3CAP ALUM 470UF 20% 16V SMD |
0 |
|
Datasheet |
160 CLA | Tape & Reel (TR) | Active | 470 µF | ±20% | 16 V | - | 1250 Hrs @ 150°C | -55°C ~ 150°C | Polar | AEC-Q200 | Automotive | - | 750 mA @ 100 kHz | 80 mOhms | - | 0.492" Dia (12.50mm) | 0.551" (14.00mm) | 0.508" L x 0.508" W (12.90mm x 12.90mm) | Surface Mount | |
|
16TGV1800M18X16.5CAP ALUM 1800UF 20% 16V SMD |
0 |
|
Datasheet |
TGV | Tape & Reel (TR) | Active | 1800 µF | ±20% | 16 V | 64mOhm @ 100kHz | 5000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 780 mA @ 120 Hz | 1.3 A @ 100 kHz | - | - | 0.709" Dia (18.00mm) | 0.669" (17.00mm) | 0.748" L x 0.748" W (19.00mm x 19.00mm) | Surface Mount | |
|
|
25TGV1500M18X16.5CAP ALUM 1500UF 20% 25V SMD |
0 |
|
Datasheet |
TGV | Tape & Reel (TR) | Active | 1500 µF | ±20% | 25 V | 64mOhm @ 100kHz | 5000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 780 mA @ 120 Hz | 1.3 A @ 100 kHz | - | - | 0.709" Dia (18.00mm) | 0.669" (17.00mm) | 0.748" L x 0.748" W (19.00mm x 19.00mm) | Surface Mount | |
|
|
MAL216099701E3CAP ALUM 68UF 20% 80V SMD |
0 |
|
Datasheet |
160 CLA | Tape & Reel (TR) | Active | 68 µF | ±20% | 80 V | - | 1000 Hrs @ 150°C | -55°C ~ 150°C | Polar | AEC-Q200 | Automotive | 162 mA @ 100 Hz | - | 780 mOhms | - | 0.492" Dia (12.50mm) | 0.551" (14.00mm) | 0.508" L x 0.508" W (12.90mm x 12.90mm) | Surface Mount | |
|
ELG157M450AT1AACAP ALUM SNAP-IN 105C |
0 |
|
Datasheet |
ELG | Bulk | Active | 150 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 750 mA @ 120 Hz | 1.0875 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
SLP181M420C7P3CAP ALUM 180UF 20% 420V SNAP TH |
0 |
|
Datasheet |
SLP0712TE (750W) | Bulk | Active | 180 µF | ±20% | 420 V | 1.843Ohm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 970 mA @ 120 Hz | 1.43 A @ 20 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
SLPX331M350C7P3CAP ALUM 330UF 20% 350V SNAP TH |
0 |
|
Datasheet |
SLPX | Bulk | Active | 330 µF | ±20% | 350 V | 603mOhm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.97 A @ 120 Hz | 2.9 A @ 20 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
PEH534PBE4150M2CAP ALUM SNAP-IN HIGH RIPPLE |
0 |
|
Datasheet |
PEH534 | Box | Active | 1.5 mF | ±20% | 100 V | 140mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.9 A @ 100 Hz | 7 A @ 20 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
515D478M035FV6AE3CAP ALUM 4700UF 20% 35V RADIAL |
0 |
|
Datasheet |
515D | Bulk | Obsolete | 4700 µF | ±20% | 35 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.49 A @ 120 Hz | 2.864 A @ 10 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|
EKMZ421VSN271MP40SCAP ALUM 270UF 20% 420V SNAP TH |
0 |
|
Datasheet |
KMZ | Box | Active | 270 µF | ±20% | 420 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.27 A @ 120 Hz | 1.8161 A @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.673" (42.50mm) | - | Through Hole | |
|
MAL224638102E3CAP ALUM 1000UF 20% 63V RADIAL |
0 |
|
- |
246 RTI-V | Box | Active | 1000 µF | ±20% | 63 V | - | 6000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive | 1.2 A @ 100 Hz | 2.4 A @ 100 kHz | 32 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.319" (33.50mm) | - | Through Hole |
