Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
420HXG150MEFC20X45CAP ALUM 150UF 20% 420V SNAP TH |
0 |
|
Datasheet |
HXG | Bulk | Active | 150 µF | ±20% | 420 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.6 A @ 120 Hz | 2.24 A @ 10 kHz | - | 0.394" (10.00mm) | 0.787" Dia (20.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
450MXC150MEFC35X25CAP ALUM 150UF 20% 450V SNAP TH |
0 |
|
Datasheet |
MXC | Bulk | Not For New Designs | 150 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 750 mA @ 120 Hz | 1.05 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
63MXC4700MEFC30X35CAP ALUM 4700UF 20% 63V SNAP TH |
0 |
|
Datasheet |
MXC | Bulk | Not For New Designs | 4700 µF | ±20% | 63 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.97 A @ 120 Hz | 3.4155 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
ELXM351VSN271MR35SCAP ALUM 270UF 20% 350V SNAP TH |
0 |
|
Datasheet |
LXM | Bulk | Active | 270 µF | ±20% | 350 V | - | 7000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.28 A @ 120 Hz | 1.8304 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
PEH536UAG3220M2CAP ALUM SNAP-IN 105C |
0 |
|
Datasheet |
PEH536 | Box | Active | 220 µF | ±20% | 350 V | 480mOhm @ 100Hz | 4600 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1 A @ 100 Hz | 6.5 A @ 20 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
|
LSR271M2W---2550SCAP ALUM 450V POLAR |
0 |
|
- |
LSR | Active | 270 µF | ±20% | 450 V | 442mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.74 A @ 120 Hz | 2.436 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 2.047" (52.00mm) | - | Through Hole | ||
|
380LX471M250K022CAP ALUM 470UF 20% 250V SNAP TH |
0 |
|
Datasheet |
380LX | Bulk | Obsolete | 470 µF | ±20% | 250 V | 423mOhm | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
380LX821M200K032CAP ALUM 820UF 20% 200V SNAP TH |
0 |
|
Datasheet |
380LX | Bulk | Obsolete | 820 µF | ±20% | 200 V | 243mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.9 A @ 120 Hz | 4.1 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
381LQ391M315A012CAP ALUM 390UF 20% 315V SNAP TH |
0 |
|
Datasheet |
381LQ | Bulk | Obsolete | 390 µF | ±20% | 315 V | 425mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.3 A @ 120 Hz | 1.82 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
381LX151M450J052CAP ALUM 150UF 20% 450V SNAP TH |
0 |
|
Datasheet |
381LX | Bulk | Obsolete | 150 µF | ±20% | 450 V | 1.768Ohm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 800 mA @ 120 Hz | 1.1 A @ 20 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
MAL213249101E3CAP ALUM 100UF 100V SNAP TH |
0 |
|
Datasheet |
132 ALL-DIN | Bulk | Active | 100 µF | -10%, +50% | 100 V | 950mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 380 mA @ 100 Hz | - | - | - | 0.591" Dia (15.00mm) | 1.299" (33.00mm) | - | Through Hole | |
|
|
LSM331M2G---3040SCAP ALUM 400V POLAR |
0 |
|
- |
LSM | Active | 330 µF | ±20% | 400 V | 603mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.39 A @ 120 Hz | 1.946 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | ||
|
|
PEH536YAG3120M2CAP ALUM SNAP-IN 105C |
0 |
|
Datasheet |
PEH536 | Box | Active | 120 µF | ±20% | 450 V | 600mOhm @ 100Hz | 4600 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 800 mA @ 100 Hz | 6 A @ 20 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
|
ERLA211LIN801KR35MCAP ALUM 800UF 10% 210V SNAP TH |
0 |
|
Datasheet |
RLA | Bulk | Active | 800 µF | ±10% | 210 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 4.48 A @ 120 Hz | 6.72 A @ 50 kHz | - | 0.559" (14.20mm) | 1.181" Dia (30.00mm) | 1.476" (37.50mm) | - | Through Hole | |
|
|
LSM121M2H---2545SCAP ALUM 500V POLAR |
0 |
|
- |
LSM | Active | 120 µF | ±20% | 500 V | 1.659Ohm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 980 mA @ 120 Hz | 1.372 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.850" (47.00mm) | - | Through Hole | ||
|
LAQ2D471MELA30CAP ALUM 470UF 20% 200V SNAP TH |
0 |
|
Datasheet |
LAQ | Bulk | Active | 470 µF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.45 A @ 120 Hz | 1.74 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|

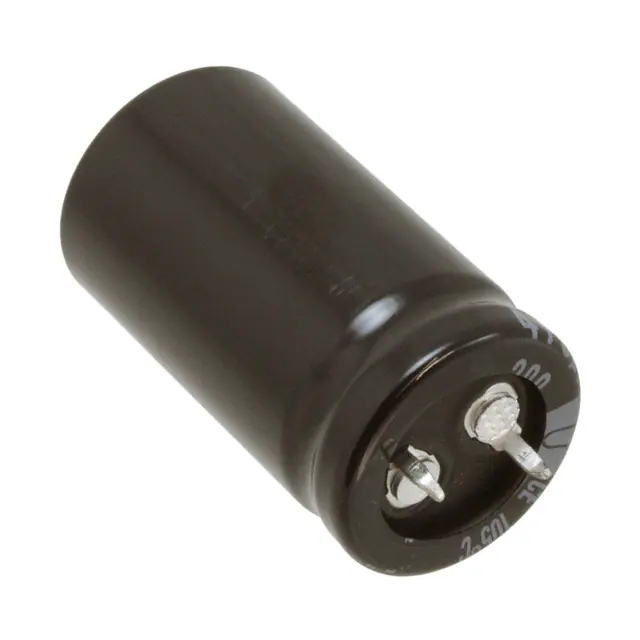

LAQ2D471MELZ40CAP ALUM 470UF 20% 200V SNAP TH |
0 |
|
Datasheet |
LAQ | Bulk | Active | 470 µF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.45 A @ 120 Hz | 1.74 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
LAQ2G101MELA25CAP ALUM 100UF 20% 400V SNAP TH |
0 |
|
Datasheet |
LAQ | Bulk | Active | 100 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 660 mA @ 120 Hz | 759 mA @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
LAQ2P271MELA30CAP ALUM 270UF 20% 220V SNAP TH |
0 |
|
Datasheet |
LAQ | Bulk | Active | 270 µF | ±20% | 220 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1 A @ 120 Hz | 1.2 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
LAQ2P331MELZ40CAP ALUM 330UF 20% 220V SNAP TH |
0 |
|
Datasheet |
LAQ | Bulk | Active | 330 µF | ±20% | 220 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.2 A @ 120 Hz | 1.44 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.654" (42.00mm) | - | Through Hole |
