Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

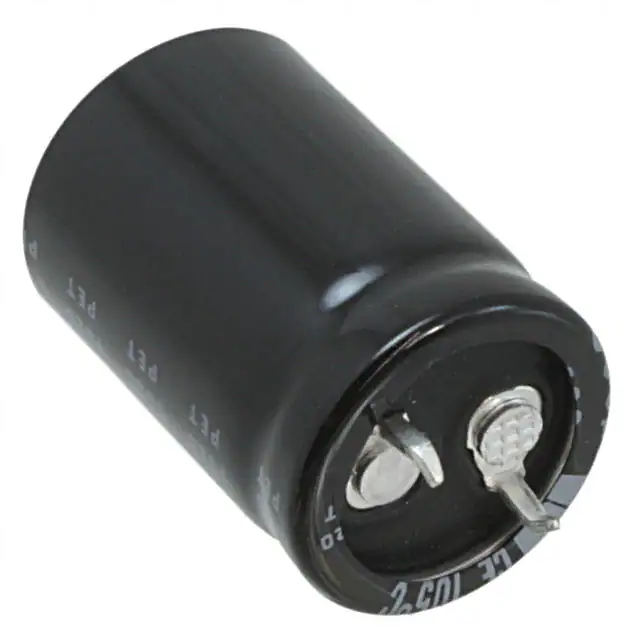

LGN2Z391MELY30CAP ALUM 390UF 20% 180V SNAP TH |
12 |
|
Datasheet |
LGN | Bulk | Active | 390 µF | ±20% | 180 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.28 A @ 120 Hz | 1.92 A @ 50 kHz | - | 0.394" (10.00mm) | 0.787" Dia (20.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|

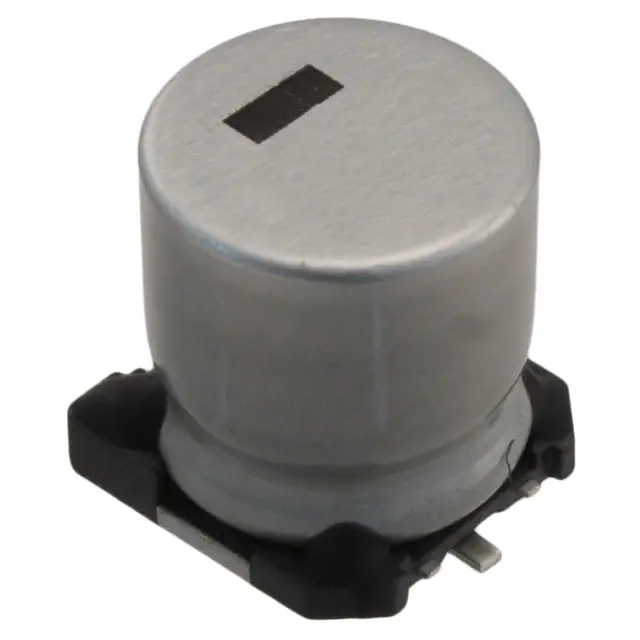

MAL215099414E3CAP ALUM 2200UF 20% 10V SMD |
0 |
|
Datasheet |
150 CRZ | Tape & Reel (TR) | Active | 2200 µF | ±20% | 10 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | - | 1.007 A @ 100 kHz | 60 mOhms | - | 0.492" Dia (12.50mm) | 0.650" (16.50mm) | 0.492" L x 0.492" W (12.50mm x 12.50mm) | Surface Mount | |
|

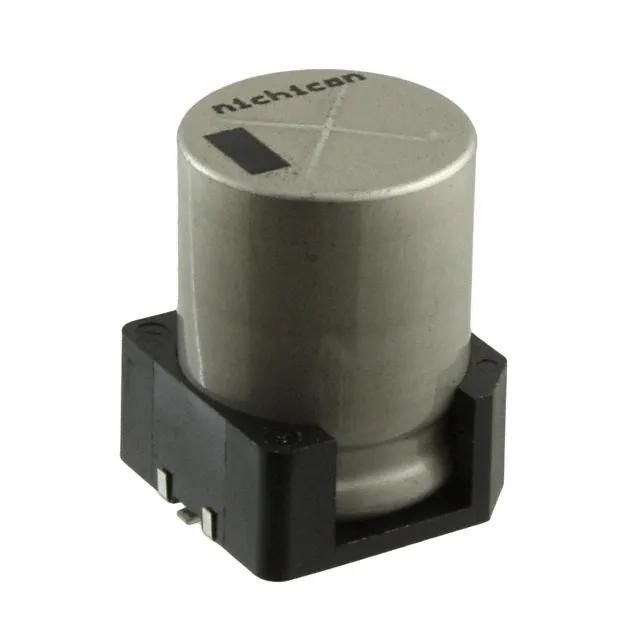

UBC1H331MNS1MSCAP ALUM 330UF 20% 50V SMD |
0 |
|
Datasheet |
UBC | Tape & Reel (TR) | Not For New Designs | 330 µF | ±20% | 50 V | - | 1000 Hrs @ 150°C | -55°C ~ 150°C | Polar | AEC-Q200 | Automotive | 435.5 mA @ 120 Hz | 650 mA @ 100 kHz | - | - | 0.630" Dia (16.00mm) | 0.886" (22.50mm) | 0.673" L x 0.673" W (17.10mm x 17.10mm) | Surface Mount | |
|
LKG1K222MESAAKCAP ALUM 2200UF 20% 80V SNAP TH |
0 |
|
Datasheet |
LKG | Bulk | Obsolete | 2200 µF | ±20% | 80 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 2.75 A @ 120 Hz | - | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
B43642B9187M000CAP ALUM 180UF 20% 400V SNAP TH |
0 |
|
Datasheet |
B43642 | Bulk | Active | 180 µF | ±20% | 400 V | 560mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 910 mA @ 100 Hz | - | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|

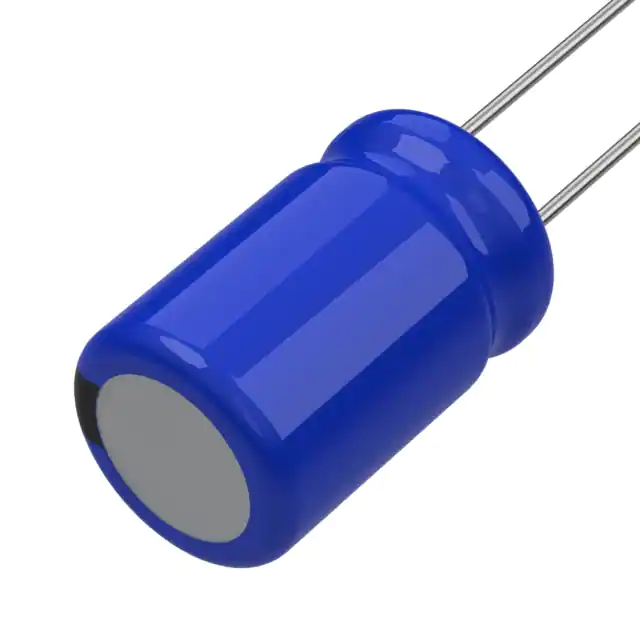

MAL214261016E3CAP ALUM 100UF 20% 400V RADIAL |
0 |
|
Datasheet |
142 RHS | Bulk | Active | 100 µF | ±20% | 400 V | - | 2500 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 530 mA @ 100 Hz | - | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
LKG1C123MESCAKCAP ALUM 12000UF 20% 16V SNAP TH |
0 |
|
Datasheet |
LKG | Bulk | Obsolete | 12000 µF | ±20% | 16 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 2.1 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
LKG1C153MESBAKCAP ALUM 15000UF 20% 16V SNAP TH |
0 |
|
Datasheet |
LKG | Bulk | Obsolete | 15000 µF | ±20% | 16 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 2.5 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
LKG1E103MESBBKCAP ALUM 10000UF 20% 25V SNAP TH |
0 |
|
Datasheet |
LKG | Bulk | Obsolete | 10000 µF | ±20% | 25 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 3.3 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
LKG1H392MESCAKCAP ALUM 3900UF 20% 50V SNAP TH |
0 |
|
Datasheet |
LKG | Bulk | Obsolete | 3900 µF | ±20% | 50 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 2.45 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
|
LKG2A821MESBBKCAP ALUM 820UF 20% 100V SNAP TH |
0 |
|
Datasheet |
LKG | Bulk | Obsolete | 820 µF | ±20% | 100 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 2.35 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
450VXR100MEFCSN30X30CAP ALUM 100UF 20% 450V SNAP TH |
0 |
|
Datasheet |
VXR | Bulk | Not For New Designs | 100 µF | ±20% | 450 V | - | 7000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 640 mA @ 120 Hz | 896 mA @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
450NXG180MEFCSN22X50CAP ALUM 180UF 20% 450V SNAP TH |
0 |
|
Datasheet |
NXG | Bulk | Active | 180 µF | ±20% | 450 V | - | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.41 A @ 120 Hz | 1.974 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
|
ALA8AF181BC450CAP ALUM SNAP-IN 105C |
0 |
|
Datasheet |
ALA8A | Box | Active | 180 µF | ±20% | 450 V | 778mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.2 A @ 100 Hz | 3.3 A @ 10 kHz | 454 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
ALA8AD181BC450CAP ALUM 450V POLAR |
0 |
|
Datasheet |
ALA8A | Bulk | Active | 180 µF | ±20% | 450 V | 778mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.2 A @ 100 Hz | 3.3 A @ 10 kHz | 454 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
ALC40F680BD450CAP ALUM SNAP-IN 105C |
0 |
|
Datasheet |
ALC40 | Box | Active | 68 µF | ±20% | 450 V | 1.391Ohm @ 100Hz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 880 mA @ 100 Hz | 2.34 A @ 10 kHz | 963 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
MAL225917689E3CAP ALUM 68UF 20% 450V SNAP TH |
0 |
|
- |
259 PHM-SI | Box | Active | 68 µF | ±20% | 450 V | 1.64Ohm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 690 mA @ 100 Hz | 1.035 A @ 10 kHz | 1.12 Ohms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
MAL225957689E3CAP ALUM 68UF 20% 450V SNAP TH |
0 |
|
- |
259 PHM-SI | Box | Active | 68 µF | ±20% | 450 V | 1.64Ohm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 690 mA @ 100 Hz | 1.035 A @ 10 kHz | 1.12 Ohms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
200SXG680MEFC25X35CAP ALUM 680UF 20% 200V SNAP TH |
0 |
|
Datasheet |
SXG | Bulk | Active | 680 µF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.78 A @ 120 Hz | 2.492 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
MAL225099316E3CAP ALUM 10000UF 20% 6.3V SMD |
0 |
|
Datasheet |
250 RMI-V | Box | Active | - | ±20% | - | - | - | -55°C ~ 105°C | Polar | AEC-Q200 | Audio, Automotive | - | - | - | - | 0.709" Dia (18.00mm) | 0.866" (22.00mm) | 0.748" L x 0.748" W (19.00mm x 19.00mm) | Surface Mount |
