Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SLPX562M080H5P3CAP ALUM 5600UF 20% 80V SNAP TH |
0 |
|
Datasheet |
SLPX | Bulk | Active | 5600 µF | ±20% | 80 V | 59mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.64 A @ 120 Hz | 5.8 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.378" (35.00mm) | - | Through Hole | |
|
SLP181M420E3P3CAP ALUM 180UF 20% 420V SNAP TH |
0 |
|
Datasheet |
SLP0712TE (750W) | Bulk | Active | 180 µF | ±20% | 420 V | 1.843Ohm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 960 mA @ 120 Hz | 1.41 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
SLP221M400A9P3CAP ALUM 220UF 20% 400V SNAP TH |
0 |
|
Datasheet |
SLP0712TE (750W) | Bulk | Active | 220 µF | ±20% | 400 V | 1.508Ohm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.1 A @ 120 Hz | 1.62 A @ 20 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
380LQ391M315J042CAP ALUM 390UF 20% 315V SNAP TH |
0 |
|
Datasheet |
380LQ | Bulk | Active | 390 µF | ±20% | 315 V | 510mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.01 A @ 120 Hz | 2.81 A @ 20 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
381LQ273M025K042CAP ALUM 27000UF 20% 25V SNAP TH |
0 |
|
Datasheet |
381LQ | Bulk | Active | 27000 µF | ±20% | 25 V | 21mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.8 A @ 120 Hz | 5.52 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
200VXG680MEFCSN22X45CAP ALUM 680UF 20% 200V SNAP TH |
0 |
|
Datasheet |
VXG | Bulk | Active | 680 µF | ±20% | 200 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.32 A @ 120 Hz | 3.48 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|

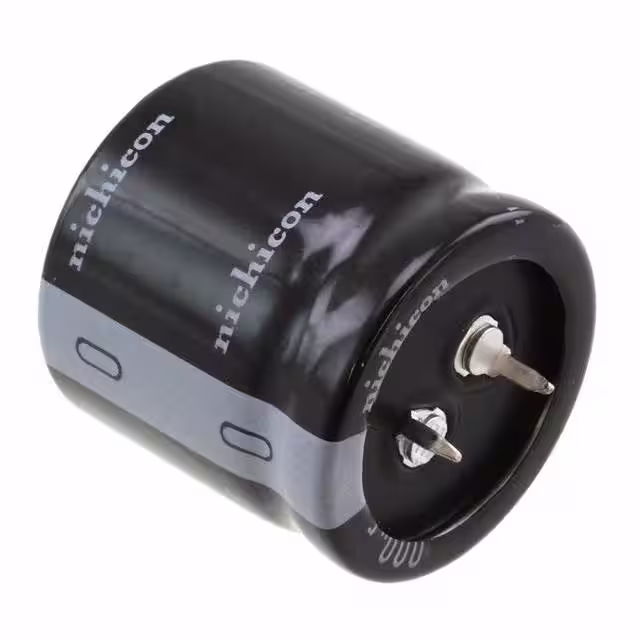

LLG2D102MELB30CAP ALUM 1000UF 20% 200V SNAP TH |
0 |
|
Datasheet |
LLG | Bulk | Active | 1000 µF | ±20% | 200 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.76 A @ 120 Hz | 4.14 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
PEH536MBD4220M2CAP ALUM SNAP-IN 105C |
0 |
|
Datasheet |
PEH536 | Box | Active | 2.2 mF | ±20% | 63 V | 88mOhm @ 100Hz | 4600 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.1 A @ 100 Hz | 7.8 A @ 20 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
B43509C5187M060CAP ALUM 450V POLAR |
0 |
|
Datasheet |
B43509 | Bulk | Active | 180 µF | ±20% | 450 V | 110mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.1 A @ 100 Hz | - | 830 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
MAL202149471E3CAP ALUM 470UF 20% 100V SNAP TH |
0 |
|
Datasheet |
021 ASM | Bulk | Active | 470 µF | ±20% | 100 V | 310mOhm @ 100Hz | 8000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 980 mA @ 100 Hz | - | 290 mOhms | 0.768" (19.50mm) | 0.709" Dia (18.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
567LBB250M2CFCAP ALUM 560UF 20% 250V SNAP TH |
0 |
|
Datasheet |
LBB | Bulk | Active | 560 µF | ±20% | 250 V | 296.05mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.74 A @ 120 Hz | 4.0278 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
PEH532SBD3390M3CAP ALUM SNAP-IN 105C |
0 |
|
Datasheet |
PEH532 | Box | Active | 390 µF | ±20% | 250 V | 300mOhm @ 100Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.1 A @ 100 Hz | 3 A @ 100 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
UPM1C682MHDCAP ALUM 6800UF 20% 16V RADIAL |
0 |
|
Datasheet |
UPM | Bulk | Not For New Designs | 6800 µF | ±20% | 16 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 2.74 A @ 120 Hz | 3.05 A @ 10 kHz | 18 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.476" (37.50mm) | - | Through Hole | |
|
|
PEH506VCD3220M2CAP ALUM SNAP-IN 85C |
0 |
|
Datasheet |
PEH506 | Box | Active | 220 µF | ±20% | 400 V | 520mOhm @ 100Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.5 A @ 100 Hz | 5.9 A @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
B41505A9158M000CAP ALUM 1500UF 20% 100V SNAP TH |
0 |
|
Datasheet |
B41505 | Bulk | Not For New Designs | 1500 µF | ±20% | 100 V | 66mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.9 A @ 100 Hz | - | 70 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
160VXR820MEFC25X40CAP ALUM 820UF 20% 160V SNAP TH |
0 |
|
Datasheet |
VXR | Bulk | Not For New Designs | 820 µF | ±20% | 160 V | - | 7000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2 A @ 120 Hz | 3 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
250VXG560MEFC25X40CAP ALUM 560UF 20% 250V SNAP TH |
0 |
|
Datasheet |
VXG | Bulk | Active | 560 µF | ±20% | 250 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.11 A @ 120 Hz | 3.165 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
25USC22000MEFC30X35CAP ALUM 22000UF 20% 25V SNAP TH |
0 |
|
Datasheet |
USC | Bulk | Not For New Designs | 22000 µF | ±20% | 25 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.19 A @ 120 Hz | 5.9685 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
400MXH270MEFC25X35CAP ALUM 270UF 20% 400V SNAP TH |
0 |
|
Datasheet |
MXH | Bulk | Active | 270 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.49 A @ 120 Hz | 2.086 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
400VXS330MEFC35X30CAP ALUM 330UF 20% 400V SNAP TH |
0 |
|
Datasheet |
VXS | Bulk | Not For New Designs | 330 µF | ±20% | 400 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.72 A @ 120 Hz | 2.408 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole |
