Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LKS1J392MESBCAP ALUM 3900UF 20% 63V SNAP TH |
0 |
|
Datasheet |
LKS | Bulk | Obsolete | 3900 µF | ±20% | 63 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 2.7 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
LKS2A152MESBCAP ALUM 1500UF 20% 100V SNAP TH |
0 |
|
Datasheet |
LKS | Bulk | Obsolete | 1500 µF | ±20% | 100 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 2.45 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
LKSA2682MESCCAP ALUM 6800UF 20% 42V SNAP TH |
0 |
|
Datasheet |
LKS | Bulk | Obsolete | 6800 µF | ±20% | 42 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 2.9 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
LKSH2332MESBCAP ALUM 3300UF 20% 71V SNAP TH |
0 |
|
Datasheet |
LKS | Bulk | Obsolete | 3300 µF | ±20% | 71 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 2.7 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
MAL211815332E3CAP ALUM 3300UF 20% 16V AXIAL TH |
0 |
|
Datasheet |
118 AHT | Bulk | Active | 3300 µF | ±20% | 16 V | 165mOhm | 8000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | Automotive | - | 1.56 A @ 10 kHz | 150 mOhms | - | 0.709" Dia x 1.181" L (18.00mm x 30.00mm) | - | - | Through Hole | |
|
MAL211844332E3CAP ALUM 3300UF 20% 10V TH |
0 |
|
Datasheet |
118 AHT | Tape & Reel (TR) | Active | 3300 µF | ±20% | 10 V | 190mOhm @ 100Hz | 8000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | Automotive | 1.07 A @ 100 Hz | - | 180 mOhms | - | 0.591" Dia (15.00mm) | - | - | Through Hole | |
|
B43644B9277M060CAP ALUM 270UF 20% 400V SNAP TH |
0 |
|
Datasheet |
B43644 | Bulk | Active | 270 µF | ±20% | 400 V | 330mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.37 A @ 100 Hz | - | 480 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
B43640A9337M067CAP ALUM 330UF 20% 400V SNAP TH |
0 |
|
Datasheet |
B43640 | Bulk | Active | 330 µF | ±20% | 400 V | 300mOhm @ 100Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.45 A @ 100 Hz | - | 440 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
LLG2G391MELA40CAP ALUM 390UF 20% 400V SNAP TH |
0 |
|
Datasheet |
LLG | Bulk | Active | 390 µF | ±20% | 400 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.9 A @ 120 Hz | 2.717 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
63MXC6800MEFCSN35X35CAP ALUM 6800UF 20% 63V SNAP TH |
0 |
|
Datasheet |
MXC | Bulk | Not For New Designs | 6800 µF | ±20% | 63 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.65 A @ 120 Hz | 4.1975 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|

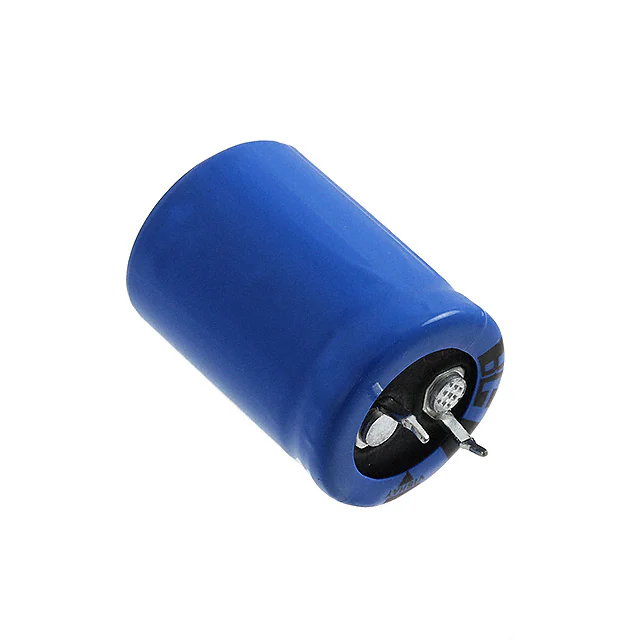

MAL209442561E3CAP ALUM 560UF 20% 200V SNAP TH |
0 |
|
Datasheet |
094 PME-SI | Bulk | Active | 560 µF | ±20% | 200 V | 220mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.61 A @ 120 Hz | - | 150 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
108LBA250M2DHCAP ALUM 1000UF 20% 250V SNAP TH |
0 |
|
Datasheet |
LBA | Bulk | Active | 1000 µF | ±20% | 250 V | 248.68mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.65 A @ 120 Hz | 5.3655 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
ELXM3B1VSN391MQ50SCAP ALUM 390UF 20% 315V SNAP TH |
0 |
|
Datasheet |
LXM | Bulk | Active | 390 µF | ±20% | 315 V | - | 7000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.59 A @ 120 Hz | 2.2737 A @ 50 kHz | - | 0.394" (10.00mm) | 1.000" Dia (25.40mm) | 2.047" (52.00mm) | - | Through Hole | |
|
|
B43643C9277M057CAP ALUM 270UF 20% 400V SNAP TH |
0 |
|
Datasheet |
B43643 | Bulk | Active | 270 µF | ±20% | 400 V | 360mOhm @ 100Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.19 A @ 100 Hz | - | 530 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
ETXH201VSN122MA40SCAP ALUM 1200UF 20% 200V SNAP TH |
0 |
|
Datasheet |
TXH | Bulk | Active | 1200 µF | ±20% | 200 V | - | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.4 A @ 120 Hz | 3.6 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
420USC270MEFCSN25X40CAP ALUM 270UF 20% 420V SNAP TH |
0 |
|
Datasheet |
USC | Bulk | Not For New Designs | 270 µF | ±20% | 420 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.74 A @ 120 Hz | 2.436 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
EKMM161VSN272MA50SCAP ALUM 2700UF 20% 160V SNAP TH |
0 |
|
Datasheet |
KMM | Bulk | Active | 2700 µF | ±20% | 160 V | 92mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 4 A @ 120 Hz | 6 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
LLS2Z182MELCCAP ALUM 1800UF 20% 180V SNAP TH |
0 |
|
Datasheet |
LLS | Bulk | Active | 1800 µF | ±20% | 180 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.54 A @ 120 Hz | 6.81 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.378" (35.00mm) | - | Through Hole | |
|
|
511D336M035AA4DCAP ALUM 33UF 20% 35V RADIAL TH |
0 |
|
Datasheet |
511D | Bulk | Active | 33 µF | ±20% | 35 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.098" (2.50mm) | 0.236" Dia (6.00mm) | 0.472" (12.00mm) | - | Through Hole | |
|
|
250VXG330MEFC22X35CAP ALUM 330UF 20% 250V SNAP TH |
0 |
|
Datasheet |
VXG | Bulk | Active | 330 µF | ±20% | 250 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.64 A @ 120 Hz | 2.46 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.457" (37.00mm) | - | Through Hole |
