Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ALC70A621CB200CAP ALUM 620UF 20% 200V SNAP TH |
0 |
|
Datasheet |
ALC70 | Bulk | Active | 620 µF | ±20% | 200 V | 352mOhm @ 100Hz | 13000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2 A @ 100 Hz | 4.02 A @ 10 kHz | 218 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
ALC70D621CB200CAP ALUM 620UF 20% 200V SNAP TH |
0 |
|
Datasheet |
ALC70 | Bulk | Active | 620 µF | ±20% | 200 V | 352mOhm @ 100Hz | 13000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2 A @ 100 Hz | 4.02 A @ 10 kHz | 218 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
ALC70F621CB200CAP ALUM 620UF 20% 200V SNAP TH |
0 |
|
Datasheet |
ALC70 | Bulk | Active | 620 µF | ±20% | 200 V | 352mOhm @ 100Hz | 13000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2 A @ 100 Hz | 4.02 A @ 10 kHz | 218 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
LSK331M2G---3530SCAP ALUM 400V POLAR |
0 |
|
- |
LSK | Active | 330 µF | ±20% | 400 V | 603mOhm @ 120Hz | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.21 A @ 120 Hz | 1.694 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | ||
|
380LX102M200K032CAP ALUM 1000UF 20% 200V SNAP TH |
0 |
|
Datasheet |
380LX | Bulk | Active | 1000 µF | ±20% | 200 V | 216mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.2 A @ 120 Hz | 4.5 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
LP181M200C1P3CAP ALUM 180UF 20% 200V SNAP TH |
0 |
|
Datasheet |
LP | Bulk | Active | 180 µF | ±20% | 200 V | 1.4Ohm @ 120Hz | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 571 mA @ 120 Hz | 799.4 mA @ 100 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
LPX471M200A5P3CAP ALUM 470UF 20% 200V SNAP TH |
0 |
|
Datasheet |
LPX | Bulk | Active | 470 µF | ±20% | 200 V | 423mOhm @ 120Hz | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.8 A @ 120 Hz | 1.98 A @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.378" (35.00mm) | - | Through Hole | |
|
|
ELD108M250AS6AACAP ALUM SNAP-IN 105C |
0 |
|
Datasheet |
ELD | Bulk | Active | 1 mF | ±20% | 250 V | 199mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.55 A @ 120 Hz | 3.57 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
ALC80A432CB063CAP ALUM 4300UF 20% 63V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 4300 µF | ±20% | 63 V | 82mOhm @ 100Hz | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.41 A @ 100 Hz | 6.8 A @ 10 kHz | 60 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
ALC80D432CB063CAP ALUM 4300UF 20% 63V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 4300 µF | ±20% | 63 V | 82mOhm @ 100Hz | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.41 A @ 100 Hz | 6.8 A @ 10 kHz | 60 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
ALC80F432CB063CAP ALUM 4300UF 20% 63V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 4300 µF | ±20% | 63 V | 82mOhm @ 100Hz | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.41 A @ 100 Hz | 6.8 A @ 10 kHz | 60 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
PEH536SBG3470M2SCAP ALUM SNAP-IN 105C |
0 |
|
Datasheet |
PEH536 | Box | Active | 470 µF | ±20% | 250 V | 210mOhm @ 100Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.3 A @ 100 Hz | 9.9 A @ 20 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|

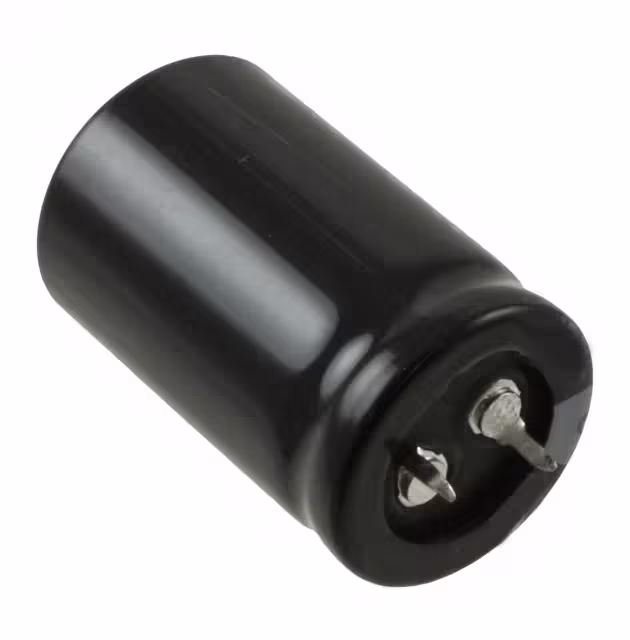

LGY2D681MELACAP ALUM 680UF 20% 200V SNAP TH |
0 |
|
Datasheet |
LGY | Bulk | Active | 680 µF | ±20% | 200 V | - | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.7 A @ 120 Hz | 1.955 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|
LAS2G181MELA30CAP ALUM 180UF 20% 400V SNAP TH |
0 |
|
Datasheet |
LAS | Bulk | Active | 180 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 950 mA @ 120 Hz | 1.0925 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
ALC80A750BB500CAP ALUM 75UF 20% 500V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 75 µF | ±20% | 500 V | 2.263Ohm @ 100Hz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 820 mA @ 100 Hz | 2.15 A @ 10 kHz | 1.564 Ohms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
ALC80D750BB500CAP ALUM 75UF 20% 500V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 75 µF | ±20% | 500 V | 2.263Ohm @ 100Hz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 820 mA @ 100 Hz | 2.15 A @ 10 kHz | 1.564 Ohms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
ALC80F750BB500CAP ALUM 75UF 20% 500V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 75 µF | ±20% | 500 V | 2.263Ohm @ 100Hz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 820 mA @ 100 Hz | 2.15 A @ 10 kHz | 1.564 Ohms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
757D187M025BB4DCAP ALUM 180UF 20% 25V RADIAL TH |
0 |
|
Datasheet |
757D | Bulk | Active | 180 µF | ±20% | 25 V | 851mOhm @ 120Hz | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 370 mA @ 120 Hz | 658 mA @ 40 kHz | 198 mOhms | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | |
|
UPT2P561MRDCAP ALUM 560UF 20% 220V RADIAL |
0 |
|
Datasheet |
UPT | Bulk | Obsolete | 560 µF | ±20% | 220 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.5 A @ 120 Hz | 2.4 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
MAL211918331E3CAP ALUM 330UF 63V AXIAL TH |
0 |
|
Datasheet |
119 AHT-DIN | Tape & Reel (TR) | Active | 330 µF | -10%, +50% | 63 V | 430mOhm @ 100Hz | 8000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 880 mA @ 100 Hz | - | 230 mOhms | - | 0.709" Dia x 1.181" L (18.00mm x 30.00mm) | - | - | Through Hole |
