Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ALC80D163CB025CAP ALUM 16000UF 20% 25V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 16000 µF | ±20% | 25 V | 71mOhm @ 100Hz | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 5.61 A @ 100 Hz | 7.27 A @ 10 kHz | 62 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
ALC80D331CB250CAP ALUM 330UF 20% 250V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 330 µF | ±20% | 250 V | 524mOhm @ 100Hz | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.62 A @ 100 Hz | 3.98 A @ 10 kHz | 306 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
ALC80F163CB025CAP ALUM 16000UF 20% 25V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 16000 µF | ±20% | 25 V | 71mOhm @ 100Hz | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 5.61 A @ 100 Hz | 7.27 A @ 10 kHz | 62 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
ALC80F331CB250CAP ALUM 330UF 20% 250V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 330 µF | ±20% | 250 V | 524mOhm @ 100Hz | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.62 A @ 100 Hz | 3.98 A @ 10 kHz | 306 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
MAL205753101E3CAP ALUM 100UF 20% 250V SNAP TH |
0 |
|
Datasheet |
057 PSM-SI | Tape & Box (TB) | Active | 100 µF | ±20% | 250 V | 1.44Ohm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 630 mA @ 100 Hz | - | 770 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
MAL205773101E3CAP ALUM 100UF 20% 250V SNAP TH |
0 |
|
Datasheet |
057 PSM-SI | Tape & Box (TB) | Active | 100 µF | ±20% | 250 V | 1.44Ohm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 630 mA @ 100 Hz | - | 770 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
UVY1C333MRDCAP ALUM 33000UF 20% 16V RADIAL |
0 |
|
Datasheet |
UVY | Bulk | Obsolete | 33000 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 3.45 A @ 120 Hz | 3.9675 A @ 10 kHz | - | 0.492" (12.50mm) | 0.984" Dia (25.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
MAL215299704E3CAP ALUM 10UF 20% 450V SMD |
0 |
|
Datasheet |
152 CME | Tape & Reel (TR) | Active | 10 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 90 mA @ 100 Hz | 225 mA @ 30 kHz | 2.9 Ohms | - | 0.630" Dia (16.00mm) | 0.689" (17.50mm) | 0.654" L x 0.654" W (16.60mm x 16.60mm) | Surface Mount | |
|
PEH506RBC3330M2SCAP ALUM SNAP-IN 85C |
0 |
|
Datasheet |
PEH506 | Box | Active | 330 µF | ±20% | 200 V | 420mOhm @ 100Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.4 A @ 100 Hz | 5.9 A @ 100 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|

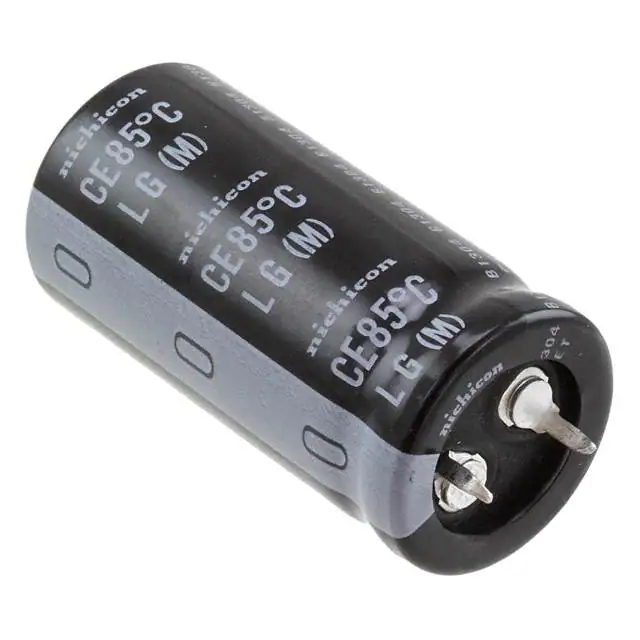

LLG2W271MELZ45CAP ALUM 270UF 20% 450V SNAP TH |
0 |
|
Datasheet |
LLG | Bulk | Active | 270 µF | ±20% | 450 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.66 A @ 120 Hz | 2.3738 A @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
380LQ122M200J042CAP ALUM 1200UF 20% 200V SNAP TH |
0 |
|
Datasheet |
380LQ | Bulk | Obsolete | 1200 µF | ±20% | 200 V | 166mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.5 A @ 120 Hz | 4.9 A @ 20 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
381LQ152M160J452CAP ALUM 1500UF 20% 160V SNAP TH |
0 |
|
Datasheet |
381LQ | Bulk | Obsolete | 1500 µF | ±20% | 160 V | 133mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.5 A @ 120 Hz | 3.5 A @ 20 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
381LX223M016A022CAP ALUM 22000UF 20% 16V SNAP TH |
0 |
|
Datasheet |
381LX | Bulk | Obsolete | 22000 µF | ±20% | 16 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.8 A @ 120 Hz | 4.4 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
381LX391M250K022CAP ALUM 390UF 20% 250V SNAP TH |
0 |
|
Datasheet |
381LX | Bulk | Obsolete | 390 µF | ±20% | 250 V | 510mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.3 A @ 120 Hz | 1.8 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
LSM391M2G---3045SCAP ALUM 400V POLAR |
0 |
|
- |
LSM | Active | 390 µF | ±20% | 400 V | 510mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.49 A @ 120 Hz | 2.086 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | ||
|
|
ALC40D332BC063CAP ALUM SNAP-IN 105C |
0 |
|
Datasheet |
ALC40 | Box | Active | 3.3 mF | ±20% | 63 V | 165mOhm @ 100Hz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.01 A @ 100 Hz | 2.35 A @ 10 kHz | 133 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
B43642B9227M000CAP ALUM 220UF 20% 400V SNAP TH |
0 |
|
Datasheet |
B43642 | Bulk | Active | 220 µF | ±20% | 400 V | 460mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.03 A @ 100 Hz | - | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
B43642B9227M007CAP ALUM 220UF 20% 400V SNAP TH |
0 |
|
Datasheet |
B43642 | Bulk | Active | 220 µF | ±20% | 400 V | 460mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.03 A @ 100 Hz | - | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|

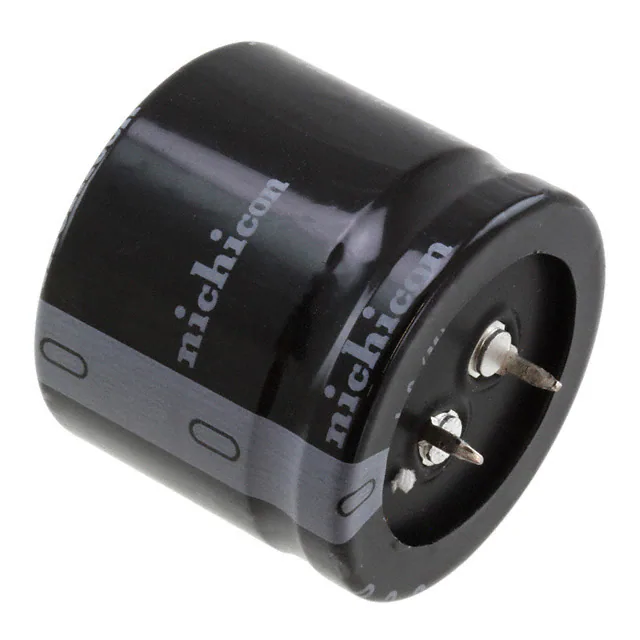

LLS2E821MELCCAP ALUM 820UF 20% 250V SNAP TH |
0 |
|
Datasheet |
LLS | Bulk | Active | 820 µF | ±20% | 250 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.96 A @ 120 Hz | 4.44 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
|
200USC330MEFC22X25CAP ALUM 330UF 20% 200V SNAP TH |
0 |
|
Datasheet |
USC | Bulk | Not For New Designs | 330 µF | ±20% | 200 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.51 A @ 120 Hz | 2.265 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole |
