Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
500MXH150MEFC22X45CAP ALUM 150UF 20% 500V SNAP TH |
0 |
|
Datasheet |
MXH | Bulk | Active | 150 µF | ±20% | 500 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
PEH536MAG4270M2CAP ALUM SNAP-IN 105C |
0 |
|
Datasheet |
PEH536 | Box | Active | 2.7 mF | ±20% | 63 V | 68mOhm @ 100Hz | 4600 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.5 A @ 100 Hz | 9.8 A @ 20 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
|
315VXH560MEFC35X30CAP ALUM 560UF 20% 315V SNAP TH |
0 |
|
Datasheet |
VXH | Bulk | Active | 560 µF | ±20% | 315 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.76 A @ 120 Hz | 2.464 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
35VXG10000MEFC35X30CAP ALUM 10000UF 20% 35V SNAP TH |
0 |
|
Datasheet |
VXG | Bulk | Active | 10000 µF | ±20% | 35 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.78 A @ 120 Hz | 3.197 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
400USG330MEFC30X30CAP ALUM 330UF 20% 400V SNAP TH |
0 |
|
Datasheet |
USG | Bulk | Active | 330 µF | ±20% | 400 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.9 A @ 120 Hz | 2.66 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
688LMB063M2DHCAP ALUM 6800UF 20% 63V SNAP TH |
0 |
|
Datasheet |
LMB | Bulk | Active | 6800 µF | ±20% | 63 V | 73.14mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.86 A @ 120 Hz | 4.825 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
380LX471M315A032CAP ALUM 470UF 20% 315V SNAP TH |
0 |
|
Datasheet |
380LX | Bulk | Active | 470 µF | ±20% | 315 V | 423mOhm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.3 A @ 120 Hz | 3.2 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
LAK2G181MELC25CAP ALUM 180UF 20% 400V SNAP TH |
0 |
|
Datasheet |
LAK | Bulk | Active | 180 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 800 mA @ 120 Hz | 920 mA @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
PEH532JDC5100M4CAP ALUM SNAP-IN 105C |
0 |
|
Datasheet |
PEH532 | Box | Active | 10 mF | ±20% | 35 V | 42mOhm @ 100Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.6 A @ 100 Hz | 9.6 A @ 100 kHz | - | 0.886" (22.50mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
PEH532JDC5100M4SCAP ALUM SNAP-IN 105C |
0 |
|
Datasheet |
PEH532 | Box | Active | 10 mF | ±20% | 35 V | 42mOhm @ 100Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.6 A @ 100 Hz | 9.6 A @ 20 kHz | - | 0.886" (22.50mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
ALA7AA331CC400CAP ALUMINUM |
0 |
|
Datasheet |
ALA7A | Tray | Active | 330 µF | ±20% | 400 V | 522mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 1.7 A @ 100 Hz | 3.9 A @ 10 kHz | 316 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|

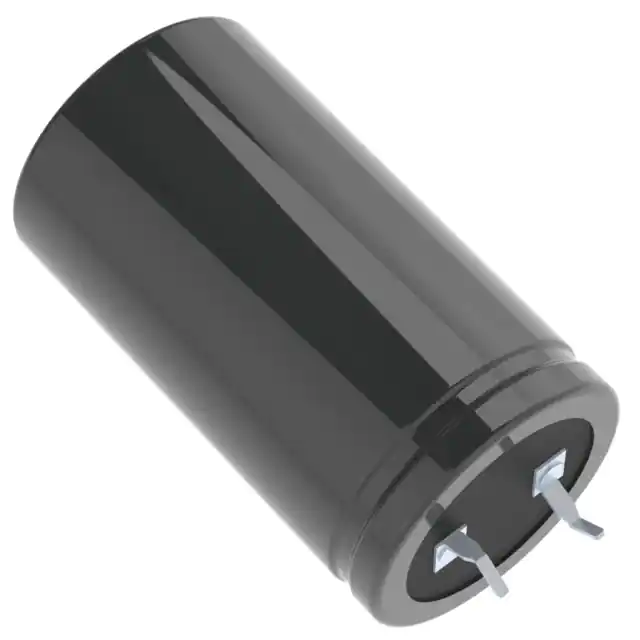

LKS1V123MESACAP ALUM 12000UF 20% 35V SNAP TH |
0 |
|
Datasheet |
LKS | Bulk | Obsolete | 12000 µF | ±20% | 35 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 3.25 A @ 120 Hz | - | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.772" (45.00mm) | - | Through Hole | |
|
LKS2A182MESACAP ALUM 1800UF 20% 100V SNAP TH |
0 |
|
Datasheet |
LKS | Bulk | Obsolete | 1800 µF | ±20% | 100 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 2.7 A @ 120 Hz | - | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
LKSA2103MESACAP ALUM 10000UF 20% 42V SNAP TH |
0 |
|
Datasheet |
LKS | Bulk | Obsolete | 10000 µF | ±20% | 42 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 3.5 A @ 120 Hz | - | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
|
LKFI6002H181MFCAP ALUM 500V POLAR |
3 |
|
Datasheet |
LKF | Case | Active | 180 µF | ±20% | 500 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 875 mA @ 120 Hz | 1.75 A @ 100 kHz | 500 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 2.441" (62.00mm) | - | Through Hole | |
|
SLP181M450C7P3CAP ALUM 180UF 20% 450V SNAP TH |
0 |
|
Datasheet |
SLP0712TE (750W) | Bulk | Active | 180 µF | ±20% | 450 V | 1.843Ohm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1 A @ 120 Hz | 1.47 A @ 20 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
SLPX471M315C4P3CAP ALUM 470UF 20% 315V SNAP TH |
0 |
|
Datasheet |
SLPX | Bulk | Active | 470 µF | ±20% | 315 V | 423mOhm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.39 A @ 120 Hz | 3.51 A @ 20 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
B43641A9337M050CAP ALUM 330UF 20% 400V SNAP TH |
0 |
|
Datasheet |
B43641 | Bulk | Active | 330 µF | ±20% | 400 V | 280mOhm @ 100Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.65 A @ 100 Hz | - | 410 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
LSG331M2W---3530SCAP ALUM 450V POLAR |
0 |
|
- |
LSG | Active | 330 µF | ±20% | 450 V | 603mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.27 A @ 120 Hz | 1.8161 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | ||
|
|
EKHS4H1VSN101MP30SCAP ALUM 100UF 20% 475V SNAP TH |
0 |
|
- |
KHS | Bulk | Active | 100 µF | ±20% | 475 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 780 mA @ 120 Hz | 1.1154 A @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.181" (30.00mm) | - | Through Hole |
