Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
450VXR120MEFCSN30X30CAP ALUM 120UF 20% 450V SNAP TH |
0 |
|
Datasheet |
VXR | Bulk | Not For New Designs | 120 µF | ±20% | 450 V | - | 7000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 720 mA @ 120 Hz | 1.008 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
250USC820MEFCSN25X45CAP ALUM 820UF 20% 250V SNAP TH |
0 |
|
Datasheet |
USC | Bulk | Not For New Designs | 820 µF | ±20% | 250 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.01 A @ 120 Hz | 4.515 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
40D256F050DC5ACAP ALUM 25UF 50V |
0 |
|
- |
40D | Bulk | Active | 25 µF | -10%, +50% | 50 V | 7.564Ohm | 500 Hrs @ 85°C | -20°C ~ 85°C | Polar | - | General Purpose | 212 mA @ 120 Hz | - | - | - | - | - | - | - | |
|
180MXG820MEFCSN30X25CAP ALUM 820UF 20% 180V SNAP TH |
0 |
|
Datasheet |
MXG | Bulk | Active | 820 µF | ±20% | 180 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2 A @ 120 Hz | 3 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
ELXS501VSN121MA25SCAP ALUM 120UF 20% 500V SNAP TH |
0 |
|
Datasheet |
LXS | Bulk | Active | 120 µF | ±20% | 500 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 880 mA @ 120 Hz | 1.2584 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.083" (27.50mm) | - | Through Hole | |
|
B43624B9227M002CAP ALUM 220UF 20% 400V SNAP TH |
0 |
|
Datasheet |
B43624 | Bulk | Active | 220 µF | ±20% | 400 V | 360mOhm @ 100Hz | 8000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.57 A @ 100 Hz | 6.2 A @ 10 kHz | 490 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
LAKW6151MELC25CAP ALUM 150UF 20% 420V SNAP TH |
0 |
|
Datasheet |
LAK | Bulk | Active | 150 µF | ±20% | 420 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 820 mA @ 120 Hz | 943 mA @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
MAL205758479E3CAP ALUM 47UF 20% 385V SNAP TH |
0 |
|
Datasheet |
057 PSM-SI | Tape & Box (TB) | Active | 47 µF | ±20% | 385 V | 3Ohm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 500 mA @ 100 Hz | - | 1.4 Ohms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
MAL205778479E3CAP ALUM 47UF 20% 385V SNAP TH |
0 |
|
Datasheet |
057 PSM-SI | Tape & Box (TB) | Active | 47 µF | ±20% | 385 V | 3Ohm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 500 mA @ 100 Hz | - | 1.4 Ohms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
475MXH150MEFCSN22X45CAP ALUM 150UF 20% 475V SNAP TH |
0 |
|
Datasheet |
MXH | Bulk | Active | 150 µF | ±20% | 475 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.14 A @ 120 Hz | 1.596 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
ELH687M250AS3AACAP ALUM SNAP-IN 85C |
0 |
|
Datasheet |
ELH | Bulk | Active | 680 µF | ±20% | 250 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.45 A @ 120 Hz | 3.675 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
B43640A2108M007CAP ALUM 1000UF 20% 200V SNAP TH |
0 |
|
Datasheet |
B43640 | Bulk | Active | 1000 µF | ±20% | 200 V | 90mOhm @ 100Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.39 A @ 100 Hz | - | 130 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
380LQ391M420K042CAP ALUM 390UF 20% 420V SNAP TH |
0 |
|
Datasheet |
380LQ | Bulk | Active | 390 µF | ±20% | 420 V | 510mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.1 A @ 120 Hz | 3 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|

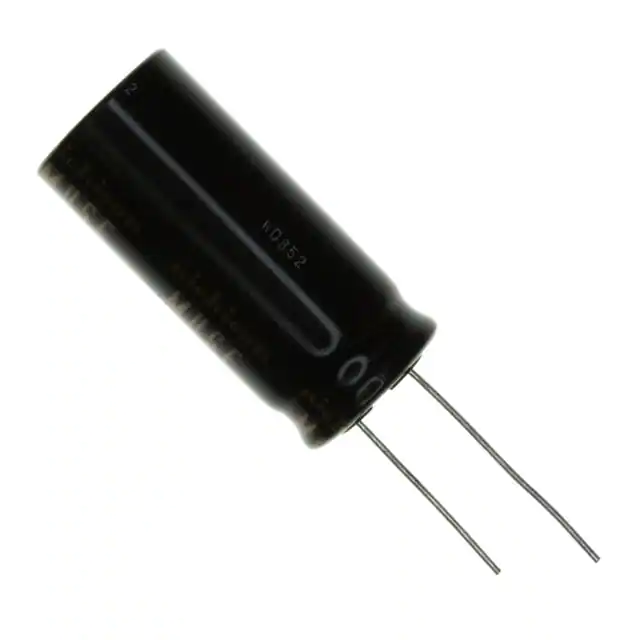

UKZ1H102MHMCAP ALUM 1000UF 20% 50V RADIAL |
0 |
|
Datasheet |
UKZ | Bulk | Obsolete | 1000 µF | ±20% | 50 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | - | - | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|
B43231A2477M000CAP ALUM 470UF 20% 200V SNAP TH |
0 |
|
Datasheet |
B43231 | Bulk | Not For New Designs | 470 µF | ±20% | 200 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.79 A @ 120 Hz | 2.774 A @ 20 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
16USG22000MEFCSN22X45CAP ALUM 22000UF 20% 16V SNAP TH |
0 |
|
Datasheet |
USG | Bulk | Active | 22000 µF | ±20% | 16 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.52 A @ 120 Hz | 5.198 A @ 100 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
159LBB035M2CHCAP ALUM 15000UF 20% 35V SNAP TH |
0 |
|
Datasheet |
LBB | Bulk | Active | 15000 µF | ±20% | 35 V | 27.63mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.54 A @ 120 Hz | 5.675 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.969" (50.00mm) | - | Through Hole | |
|
|
ELH687M250AT1AACAP ALUM SNAP-IN 85C |
0 |
|
Datasheet |
ELH | Bulk | Active | 680 µF | ±20% | 250 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.45 A @ 120 Hz | 3.675 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
450VXG180MEFCSN30X30CAP ALUM 180UF 20% 450V SNAP TH |
0 |
|
Datasheet |
VXG | Bulk | Active | 180 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.24 A @ 120 Hz | 1.736 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
SLPX182M180H5P3CAP ALUM 1800UF 20% 180V SNAP TH |
0 |
|
Datasheet |
SLPX | Bulk | Active | 1800 µF | ±20% | 180 V | 111mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.54 A @ 120 Hz | 6.67 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.378" (35.00mm) | - | Through Hole |
