Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
50MXC3300MEFC20X40CAP ALUM 3300UF 20% 50V SNAP TH |
0 |
|
Datasheet |
MXC | Bulk | Not For New Designs | 3300 µF | ±20% | 50 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.97 A @ 120 Hz | 2.2655 A @ 10 kHz | - | 0.394" (10.00mm) | 0.787" Dia (20.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
ERLA221LIN102KR45MCAP ALUM 1000UF 10% 220V SNAP TH |
0 |
|
Datasheet |
RLA | Bulk | Active | 1000 µF | ±10% | 220 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 5.19 A @ 120 Hz | 7.785 A @ 50 kHz | - | 0.559" (14.20mm) | 1.181" Dia (30.00mm) | 1.870" (47.50mm) | - | Through Hole | |
|
|
16KXF4700MEFC22X20CAP ALUM 4700UF 20% 16V SNAP TH |
0 |
|
Datasheet |
KXF | Bulk | Active | 4700 µF | ±20% | 16 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.38 A @ 120 Hz | 1.587 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
|
200SXG330MEFC20X35CAP ALUM 330UF 20% 200V SNAP TH |
0 |
|
Datasheet |
SXG | Bulk | Active | 330 µF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.2 A @ 120 Hz | 1.68 A @ 10 kHz | - | 0.394" (10.00mm) | 0.787" Dia (20.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
350MXC120MEFC20X35CAP ALUM 120UF 20% 350V SNAP TH |
0 |
|
Datasheet |
MXC | Bulk | Not For New Designs | 120 µF | ±20% | 350 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 700 mA @ 120 Hz | 980 mA @ 10 kHz | - | 0.394" (10.00mm) | 0.787" Dia (20.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
500VXG120MEFC22X50CAP ALUM 120UF 20% 500V SNAP TH |
0 |
|
Datasheet |
VXG | Bulk | Active | 120 µF | ±20% | 500 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.08 A @ 120 Hz | 1.512 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|

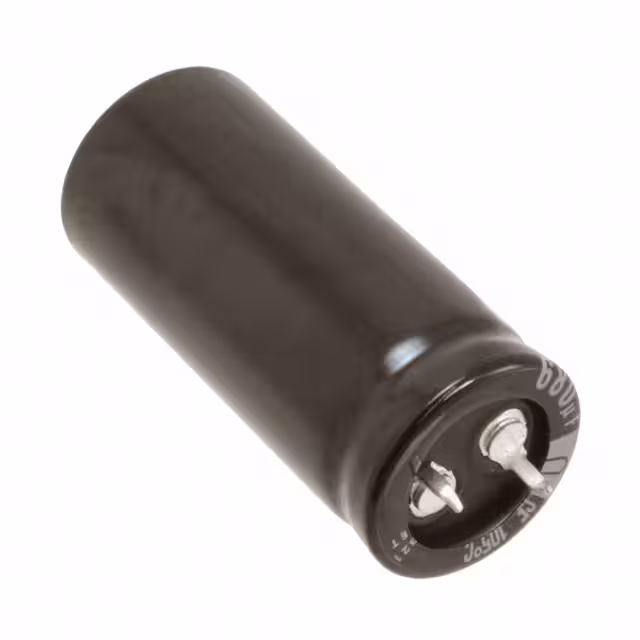

LAQ2D681MELZ50CAP ALUM 680UF 20% 200V SNAP TH |
0 |
|
Datasheet |
LAQ | Bulk | Active | 680 µF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.75 A @ 120 Hz | 2.1 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
|
40D107G025DF5ACAP ALUM 100UF 25V |
0 |
|
- |
40D | Bulk | Active | 100 µF | -10%, +50% | 25 V | - | 500 Hrs @ 85°C | -20°C ~ 85°C | Polar | - | General Purpose | - | - | - | - | - | - | - | - | |
|
|
40D506F050DF5ACAP ALUM 50UF 50V AXIAL TH |
0 |
|
Datasheet |
40D | Bulk | Active | 50 µF | -10%, +50% | 50 V | 3.8Ohm | 500 Hrs @ 85°C | -20°C ~ 85°C | Polar | - | General Purpose | 344 mA @ 120 Hz | - | - | - | 0.374" Dia x 1.260" L (9.50mm x 32.00mm) | - | - | Through Hole | |
|
|
ELXM201VSN102MR45SCAP ALUM 1000UF 20% 200V SNAP TH |
0 |
|
Datasheet |
LXM | Bulk | Active | 1000 µF | ±20% | 200 V | - | 7000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.42 A @ 120 Hz | 3.63 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
LGN2Z122MELC30CAP ALUM 1200UF 20% 180V SNAP TH |
0 |
|
Datasheet |
LGN | Bulk | Active | 1200 µF | ±20% | 180 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.3 A @ 120 Hz | 3.45 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|

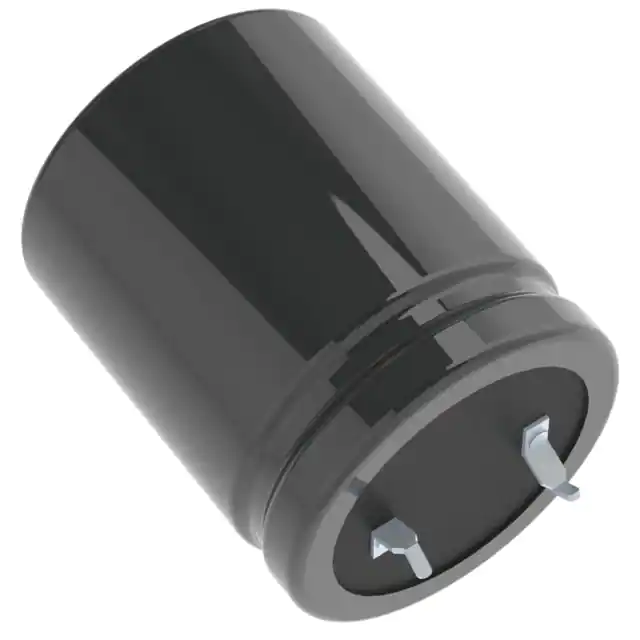

LASW6151MELB25CAP ALUM 150UF 20% 420V SNAP TH |
0 |
|
Datasheet |
LAS | Bulk | Active | 150 µF | ±20% | 420 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 820 mA @ 120 Hz | 943 mA @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
ALA8AF181BE500CAP ALUM 500V POLAR |
0 |
|
Datasheet |
ALA8A | Bulk | Active | 180 µF | ±20% | 500 V | 1.158Ohm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.4 A @ 100 Hz | 3.2 A @ 10 kHz | 852 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
250MXC680MEFCSN30X35CAP ALUM 680UF 20% 250V SNAP TH |
0 |
|
Datasheet |
MXC | Bulk | Not For New Designs | 680 µF | ±20% | 250 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2 A @ 120 Hz | 3 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
B41252A7229MCAP ALUM 22000UF 20% 35V SNAP TH |
0 |
|
Datasheet |
B41252 | Bulk | Active | 22000 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.95 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
ELH109M063AS6AACAP ALUM SNAP-IN 85C |
0 |
|
Datasheet |
ELH | Bulk | Active | 10 mF | ±20% | 63 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.5 A @ 120 Hz | 6.38 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
MAL216099606E3CAP ALUM 2200UF 20% 25V SMD |
0 |
|
Datasheet |
160 CLA | Tape & Reel (TR) | Active | 2200 µF | ±20% | 25 V | - | 2000 Hrs @ 150°C | -55°C ~ 150°C | Polar | AEC-Q200 | Automotive | - | 1.35 A @ 100 kHz | 35 mOhms | - | 0.709" Dia (18.00mm) | 0.866" (22.00mm) | 0.748" L x 0.748" W (19.00mm x 19.00mm) | Surface Mount | |
|
MAL216099808E3CAP ALUM 680UF 20% 63V SMD |
0 |
|
Datasheet |
160 CLA | Tape & Reel (TR) | Active | 680 µF | ±20% | 63 V | - | 2000 Hrs @ 150°C | -55°C ~ 150°C | Polar | AEC-Q200 | Automotive | 420 mA @ 100 Hz | - | 72 mOhms | - | 0.709" Dia (18.00mm) | 0.866" (22.00mm) | 0.748" L x 0.748" W (19.00mm x 19.00mm) | Surface Mount | |
|
MAL202114153E3CAP ALUM 15000UF 20% 10V AXIAL |
0 |
|
Datasheet |
021 ASM | Bulk | Active | 15000 µF | ±20% | 10 V | 54mOhm | 8000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | 2.7 A @ 10 kHz | 35 mOhms | - | 0.827" Dia x 1.496" L (21.00mm x 38.00mm) | - | - | Through Hole | |
|
UVZ2E221MRDCAP ALUM 220UF 20% 250V RADIAL |
22 |
|
Datasheet |
UVZ | Bulk | Obsolete | 220 µF | ±20% | 250 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 600 mA @ 120 Hz | 960 mA @ 10 kHz | - | 0.394" (10.00mm) | 0.787" Dia (20.00mm) | 1.654" (42.00mm) | - | Through Hole |
