Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SLP821M250H5P3CAP ALUM 820UF 20% 250V SNAP TH |
0 |
|
Datasheet |
SLP0712TE (750W) | Bulk | Active | 820 µF | ±20% | 250 V | 243mOhm | 3000 Hrs @ 105°C | -25°C ~ 105°C | - | - | General Purpose | - | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.378" (35.00mm) | - | Through Hole | |
|
381LX822M063J052CAP ALUM 8200UF 20% 63V SNAP TH |
0 |
|
Datasheet |
381LX | Bulk | Active | 8200 µF | ±20% | 63 V | 40mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.9 A @ 120 Hz | - | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
|
477LMX250M2ECCAP ALUM 470UF 20% 250V SNAP TH |
0 |
|
Datasheet |
LMX | Bulk | Active | 470 µF | ±20% | 250 V | 529.1mOhm @ 120Hz | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.63 A @ 120 Hz | 2.396 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
250MXG680MEFCSN30X30CAP ALUM 680UF 20% 250V SNAP TH |
0 |
|
Datasheet |
MXG | Bulk | Active | 680 µF | ±20% | 250 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.87 A @ 120 Hz | 2.805 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
LSK122M2D---3540SCAP ALUM 200V POLAR |
0 |
|
- |
LSK | Active | 1.2 mF | ±20% | 200 V | 166mOhm @ 120Hz | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.93 A @ 120 Hz | 2.702 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | ||
|
LGJ2G151MELCCAP ALUM 150UF 20% 400V SNAP TH |
0 |
|
Datasheet |
LGJ | Bulk | Active | 150 µF | ±20% | 400 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 800 mA @ 120 Hz | 1.144 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
|
LGJ2G151MESCCAPACITOR |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
PEG124UD1680QT1CAP ALUM AXL GEN PUR 105C |
0 |
|
Datasheet |
PEG124 | Tape & Reel (TR) | Active | 6.8 µF | -10%, +30% | 350 V | 9Ohm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 92 mA @ 100 Hz | 220 mA @ 5 kHz | - | - | 0.512" Dia x 1.142" L (13.00mm x 29.00mm) | - | - | Through Hole | |
|
B43630A5227M000CAP ALUM 220UF 20% 450V SNAP TH |
0 |
|
Datasheet |
B43630 | Bulk | Active | 220 µF | ±20% | 450 V | 500mOhm @ 100Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.53 A @ 100 Hz | - | 770 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
MAL215757569E3CAP ALUM 56UF 20% 450V SNAP TH |
0 |
|
Datasheet |
157 PUM-SI | Bulk | Active | 56 µF | ±20% | 450 V | 3.3Ohm @ 100Hz | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 680 mA @ 120 Hz | - | 1.88 Ohms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
MAL215777569E3CAP ALUM 56UF 20% 450V SNAP TH |
0 |
|
Datasheet |
157 PUM-SI | Bulk | Active | 56 µF | ±20% | 450 V | 3.3Ohm @ 100Hz | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 680 mA @ 120 Hz | - | 1.88 Ohms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
PEH532YBC3100M2SCAP ALUM SNAP-IN 105C |
0 |
|
Datasheet |
PEH532 | Box | Active | 100 µF | ±20% | 450 V | 920mOhm @ 100Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 600 mA @ 100 Hz | 1.8 A @ 100 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
380LQ561M315K032CAP ALUM 560UF 20% 315V SNAP TH |
0 |
|
Datasheet |
380LQ | Bulk | Active | 560 µF | ±20% | 315 V | 355mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.56 A @ 120 Hz | 3.58 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|

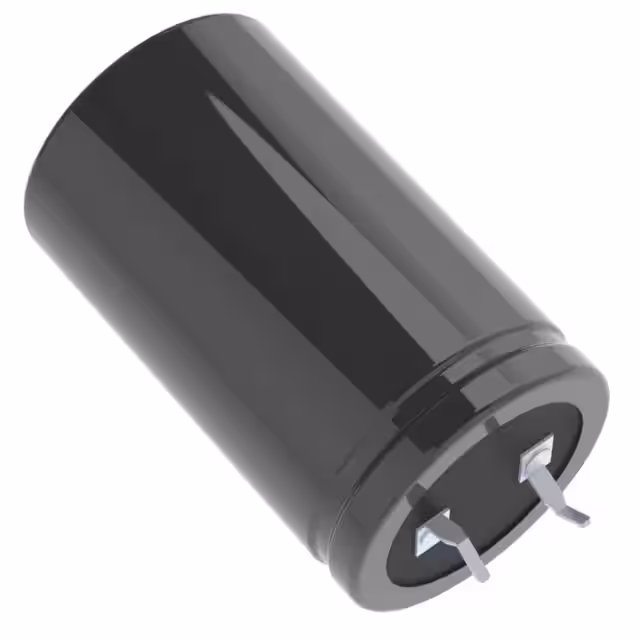

LKS2A222MESACAP ALUM 2200UF 20% 100V SNAP TH |
0 |
|
Datasheet |
LKS | Bulk | Obsolete | 2200 µF | ±20% | 100 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 2.95 A @ 120 Hz | - | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|

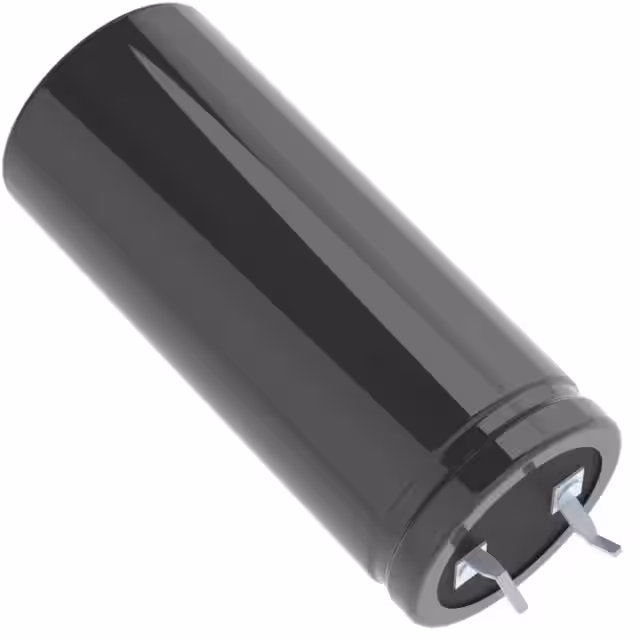

LKS2A222MESZCAP ALUM 2200UF 20% 100V SNAP TH |
0 |
|
Datasheet |
LKS | Bulk | Obsolete | 2200 µF | ±20% | 100 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 2.95 A @ 120 Hz | - | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
LKSH2562MESACAP ALUM 5600UF 20% 71V SNAP TH |
0 |
|
Datasheet |
LKS | Bulk | Obsolete | 5600 µF | ±20% | 71 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 3.75 A @ 120 Hz | - | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
AEB476M2EU44T-FCAP ALUM 47UF 20% 250V SMD |
0 |
|
Datasheet |
AEB | Tape & Reel (TR) | Obsolete | 47 µF | ±20% | 250 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 390.5 mA @ 120 Hz | 710 mA @ 100 kHz | 700 mOhms | - | 0.630" Dia (16.00mm) | 0.846" (21.50mm) | 0.669" L x 0.669" W (17.00mm x 17.00mm) | Surface Mount | |
|
|
AEB686M2CU44T-FCAP ALUM 68UF 20% 160V SMD |
0 |
|
Datasheet |
AEB | Tape & Reel (TR) | Obsolete | 68 µF | ±20% | 160 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 412.5 mA @ 120 Hz | 750 mA @ 100 kHz | 550 mOhms | - | 0.630" Dia (16.00mm) | 0.846" (21.50mm) | 0.669" L x 0.669" W (17.00mm x 17.00mm) | Surface Mount | |
|
|
AEB686M2DU44T-FCAP ALUM 68UF 20% 200V SMD |
0 |
|
Datasheet |
AEB | Tape & Reel (TR) | Obsolete | 68 µF | ±20% | 200 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 412.5 mA @ 120 Hz | 750 mA @ 100 kHz | 550 mOhms | - | 0.630" Dia (16.00mm) | 0.846" (21.50mm) | 0.669" L x 0.669" W (17.00mm x 17.00mm) | Surface Mount | |
|
ERLA221LIN102KA35MCAP ALUM 1000UF 10% 220V SNAP TH |
0 |
|
Datasheet |
RLA | Bulk | Active | 1000 µF | ±10% | 220 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 4.87 A @ 120 Hz | 7.305 A @ 50 kHz | - | 0.559" (14.20mm) | 1.378" Dia (35.00mm) | 1.476" (37.50mm) | - | Through Hole |
