Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ALO8AF331CB400CAP ALUM 105C 330UF 400VDC |
0 |
|
Datasheet |
ALO8A | Tray | Active | 330 µF | ±20% | 400 V | 467.6mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.61 A @ 100 Hz | 233.8 A @ 10 kHz | 233.8 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.181" (30.00mm) | - | Through Hole, Press-Fit | |
|
400VXH330MEFCSN35X25CAP ALUM 330UF 20% 400V SNAP TH |
0 |
|
Datasheet |
VXH | Bulk | Active | 330 µF | ±20% | 400 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.36 A @ 120 Hz | 1.904 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
ALC40A181CB350CAP ALUM SNAP-IN 105C |
0 |
|
Datasheet |
ALC40 | Box | Active | 180 µF | ±20% | 350 V | 618mOhm @ 100Hz | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.17 A @ 100 Hz | 2.46 A @ 10 kHz | 410 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
B43544B2108M067CAP ALUM 1000UF 20% 200V SNAP TH |
0 |
|
Datasheet |
B43544 | Tray | Active | 1000 µF | ±20% | 200 V | 85mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.71 A @ 100 Hz | - | 120 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
381LQ182M180K052CAP ALUM 1800UF 20% 180V SNAP TH |
0 |
|
Datasheet |
381LQ | Bulk | Active | 1800 µF | ±20% | 180 V | 110mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.7 A @ 120 Hz | 3.78 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
|
B43642B2108M000CAP ALUM 1000UF 20% 200V SNAP TH |
0 |
|
Datasheet |
B43642 | Bulk | Active | 1000 µF | ±20% | 200 V | 85mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.26 A @ 100 Hz | - | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
B43544C7157M060CAP ALUM SNAP |
0 |
|
Datasheet |
* | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
MAL225789121E3CAP ALUM 120UF 20% 500V SNAP TH |
0 |
|
- |
257 PRM-SI | Box | Active | 120 µF | ±20% | 500 V | 1.79Ohm @ 100Hz | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.1 A @ 100 Hz | 1.54 A @ 10 kHz | 1.56 Ohms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
MAL225739121E3CAP ALUM 120UF 20% 500V SNAP TH |
0 |
|
- |
257 PRM-SI | Box | Active | 120 µF | ±20% | 500 V | 1.79Ohm @ 100Hz | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.1 A @ 100 Hz | 1.54 A @ 10 kHz | 1.56 Ohms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
MAL225769121E3CAP ALUM 120UF 20% 500V SNAP TH |
0 |
|
- |
257 PRM-SI | Box | Active | 120 µF | ±20% | 500 V | 1.75Ohm @ 100Hz | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.12 A @ 100 Hz | 1.568 A @ 10 kHz | 1.52 Ohms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
PL2W271MND3030CAP ALUM 270UF 20% 450V SNAP TH |
0 |
|
Datasheet |
PL | Active | 270 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.3 A @ 120 Hz | 1.859 A @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | ||
|
400MXG270MEFCSN22X50CAP ALUM 270UF 20% 400V SNAP TH |
0 |
|
Datasheet |
MXG | Bulk | Active | 270 µF | ±20% | 400 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.62 A @ 120 Hz | 2.268 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
400USH330MEFC30X30CAP ALUM 330UF 20% 400V RADIAL |
0 |
|
Datasheet |
USH | Bulk | Active | 330 µF | ±20% | 400 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.18 A @ 120 Hz | 3.052 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
385USC220MEFC22X40CAP ALUM 220UF 20% 385V SNAP TH |
0 |
|
Datasheet |
USC | Bulk | Not For New Designs | 220 µF | ±20% | 385 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.42 A @ 120 Hz | 1.988 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
420USC120MEFC22X30CAP ALUM 120UF 20% 420V SNAP TH |
0 |
|
Datasheet |
USC | Bulk | Not For New Designs | 120 µF | ±20% | 420 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.07 A @ 120 Hz | 1.498 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
450MXK270MEFC22X45CAP ALUM 270UF 20% 450V SNAP TH |
0 |
|
Datasheet |
MXK | Bulk | Active | 270 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.65 A @ 120 Hz | 2.31 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
MAL215299606E3CAP ALUM 22UF 20% 400V SMD |
6 |
|
Datasheet |
152 CME | Tape & Reel (TR) | Active | 22 µF | ±20% | 400 V | - | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 130 mA @ 100 Hz | 325 mA @ 30 kHz | 1.5 Ohms | - | 0.630" Dia (16.00mm) | 0.866" (22.00mm) | 0.654" L x 0.654" W (16.60mm x 16.60mm) | Surface Mount | |
|
EEV-EB2V470MCAP ALUM 47UF 20% 350V SMD |
0 |
|
Datasheet |
EB | Tape & Reel (TR) | Obsolete | 47 µF | ±20% | 350 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 335 mA @ 120 Hz | 670 mA @ 100 kHz | - | - | 0.709" Dia (18.00mm) | 0.866" (22.00mm) | 0.748" L x 0.748" W (19.00mm x 19.00mm) | Surface Mount | |
|

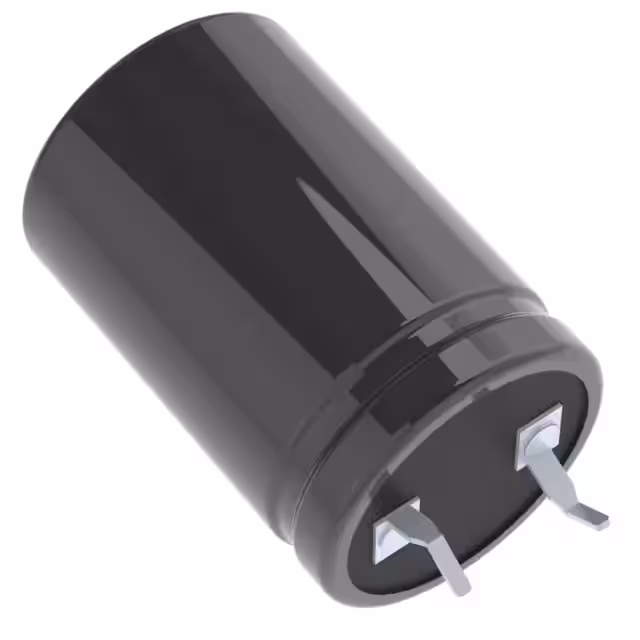

LKS1H222MESYCAP ALUM 2200UF 20% 50V SNAP TH |
0 |
|
Datasheet |
LKS | Bulk | Obsolete | 2200 µF | ±20% | 50 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 1.75 A @ 120 Hz | - | - | 0.394" (10.00mm) | 0.787" Dia (20.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|

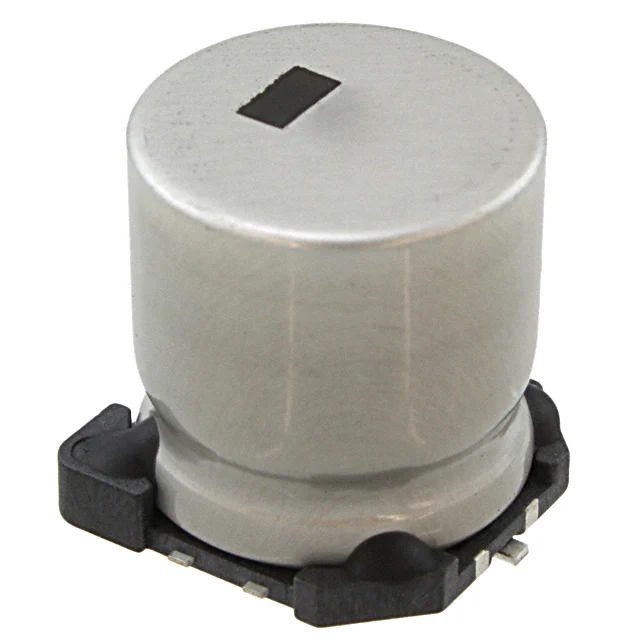

MAL216099603E3CAP ALUM 680UF 20% 25V SMD |
0 |
|
Datasheet |
160 CLA | Tape & Reel (TR) | Active | 680 µF | ±20% | 25 V | - | 1500 Hrs @ 150°C | -55°C ~ 150°C | Polar | AEC-Q200 | Automotive | - | 800 mA @ 100 kHz | 50 mOhms | - | 0.630" Dia (16.00mm) | 0.689" (17.50mm) | 0.654" L x 0.654" W (16.60mm x 16.60mm) | Surface Mount |
