Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAL216099703E3CAP ALUM 150UF 20% 80V SMD |
0 |
|
Datasheet |
160 CLA | Tape & Reel (TR) | Active | 150 µF | ±20% | 80 V | - | 1500 Hrs @ 150°C | -55°C ~ 150°C | Polar | AEC-Q200 | Automotive | 258 mA @ 100 Hz | - | 390 mOhms | - | 0.630" Dia (16.00mm) | 0.689" (17.50mm) | 0.654" L x 0.654" W (16.60mm x 16.60mm) | Surface Mount | |
|
MAL215752331E3CAP ALUM 330UF 20% 200V SNAP TH |
0 |
|
Datasheet |
157 PUM-SI | Bulk | Active | 330 µF | ±20% | 200 V | 820mOhm @ 100Hz | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.36 A @ 120 Hz | - | 500 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
MAL215772331E3CAP ALUM 330UF 20% 200V SNAP TH |
0 |
|
Datasheet |
157 PUM-SI | Bulk | Active | 330 µF | ±20% | 200 V | 820mOhm @ 100Hz | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.36 A @ 120 Hz | - | 500 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
LSG182M2D---3545SCAP ALUM 200V POLAR |
0 |
|
- |
LSG | Active | 1.8 mF | ±20% | 200 V | 111mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 3.17 A @ 120 Hz | 4.755 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | ||
|
LASW6221MELB35CAP ALUM 220UF 20% 420V SNAP TH |
0 |
|
Datasheet |
LAS | Bulk | Active | 220 µF | ±20% | 420 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1 A @ 120 Hz | 1.15 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
250USC220MEFC22X25CAP ALUM 220UF 20% 250V SNAP TH |
0 |
|
Datasheet |
USC | Bulk | Not For New Designs | 220 µF | ±20% | 250 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.24 A @ 120 Hz | 1.86 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
420MXK270MEFCSN22X40CAP ALUM 270UF 20% 420V SNAP TH |
0 |
|
Datasheet |
MXK | Tray | Active | 270 µF | ±20% | 420 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.57 A @ 120 Hz | 2.198 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
ESMH101VNN103MA63SCAP ALUM 10000UF 20% 100V SNAP |
0 |
|
Datasheet |
SMH | Bulk | Active | 10000 µF | ±20% | 100 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.559" (65.00mm) | - | Through Hole | |
|
|
ELG567M250AS3AACAP ALUM SNAP-IN 105C |
0 |
|
Datasheet |
ELG | Bulk | Active | 560 µF | ±20% | 250 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.8 A @ 120 Hz | 2.7 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
380LX333M016K042CAP ALUM 33000UF 20% 16V SNAP TH |
0 |
|
Datasheet |
380LX | Bulk | Active | 33000 µF | ±20% | 16 V | 25mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 6.8 A @ 120 Hz | 7.9 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|

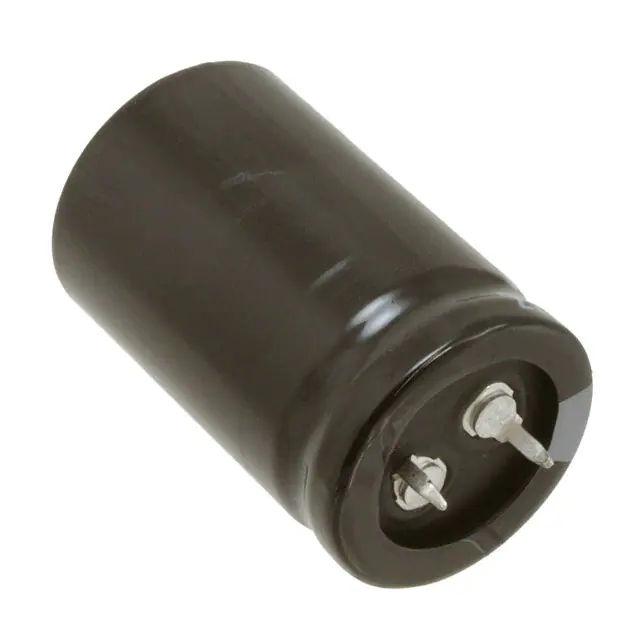

LAQ2G181MELA40CAP ALUM 180UF 20% 400V SNAP TH |
0 |
|
Datasheet |
LAQ | Bulk | Active | 180 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 950 mA @ 120 Hz | 1.0925 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
220VXG680MEFCSN35X25CAP ALUM 680UF 20% 220V SNAP TH |
0 |
|
Datasheet |
VXG | Bulk | Active | 680 µF | ±20% | 220 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.58 A @ 120 Hz | 2.37 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
ELH228M160AT5AACAP ALUM SNAP-IN 85C |
0 |
|
Datasheet |
ELH | Bulk | Active | 2.2 mF | ±20% | 160 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 4.8 A @ 120 Hz | 7.2 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
400USG330MEFCSN35X25CAP ALUM 330UF 20% 400V SNAP TH |
0 |
|
Datasheet |
USG | Bulk | Active | 330 µF | ±20% | 400 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.9 A @ 120 Hz | 2.66 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
LAK2G271MELB40CAP ALUM 270UF 20% 400V SNAP TH |
0 |
|
Datasheet |
LAK | Bulk | Active | 270 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 980 mA @ 120 Hz | 1.127 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
ELX477M250AT2AACAP ALUM SNAP-IN 105C |
0 |
|
Datasheet |
ELX | Bulk | Active | 470 µF | ±20% | 250 V | 423mOhm @ 120Hz | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.88 A @ 120 Hz | 2.632 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
LHM471M2G---3045SCAP ALUM 400V POLAR |
0 |
|
- |
LHM | Active | 470 µF | ±20% | 400 V | 423mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.68 A @ 120 Hz | 2.352 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | ||
|
ERLA201LIN152KR55MCAP ALUM 1500UF 20% 200V SNAP TH |
0 |
|
Datasheet |
RLA | Bulk | Active | 1500 µF | ±20% | 200 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 6.36 A @ 120 Hz | 9.54 A @ 50 kHz | - | 0.559" (14.20mm) | 1.181" Dia (30.00mm) | 2.264" (57.50mm) | - | Through Hole | |
|

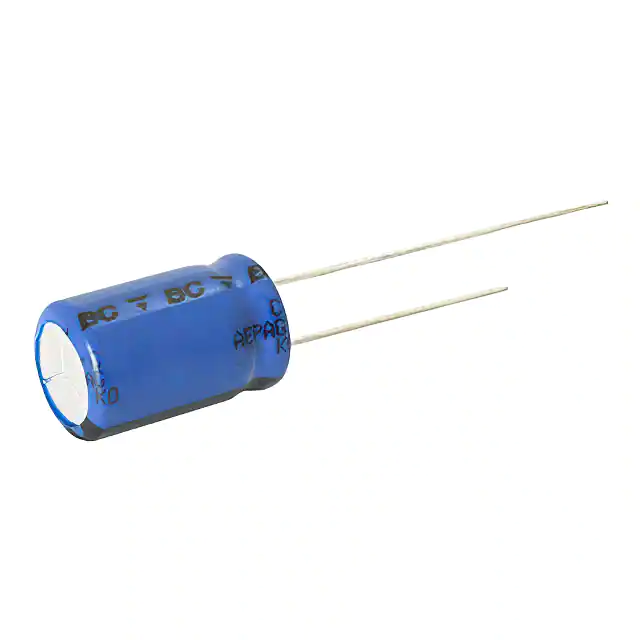

MAL217256392E3CAP ALUM 3900UF 20% 25V RADIAL |
0 |
|
Datasheet |
172 RLX | Bulk | Active | 3900 µF | ±20% | 25 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 2.8956 A @ 100 Hz | 3.81 A @ 100 kHz | 17 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
ALA8AD331CD450CAP ALUM SNAP-IN 105C |
0 |
|
Datasheet |
ALA8A | Box | Active | 330 µF | ±20% | 450 V | 418mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 2 A @ 100 Hz | 5.4 A @ 10 kHz | 242 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole |
