Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ALA8AF331CD450CAP ALUM 450V POLAR |
0 |
|
Datasheet |
ALA8A | Bulk | Active | 330 µF | ±20% | 450 V | 418mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 2 A @ 100 Hz | 5.4 A @ 10 kHz | 242 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
MAL213849471E3CAP ALUM 470UF 20% 100V SNAP TH |
0 |
|
Datasheet |
138 AML | Tape & Reel (TR) | Active | 470 µF | ±20% | 100 V | 270mOhm @ 100kHz | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | Automotive | 1.13 A @ 100 Hz | - | 170 mOhms | - | 0.709" Dia (18.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
ALH82A131CD550CAP ALUM 130UF 20% 550V SNAP TH |
0 |
|
Datasheet |
ALH82 | Tray | Active | 130 µF | ±20% | 550 V | 1Ohm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.44 A @ 100 Hz | 3.96 A @ 10 kHz | 687 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
450USC330MEFCSN25X50CAP ALUM 330UF 20% 450V SNAP TH |
0 |
|
Datasheet |
USC | Bulk | Not For New Designs | 330 µF | ±20% | 450 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.12 A @ 120 Hz | 2.968 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
|
10VXG33000MEFC35X35CAP ALUM 33000UF 20% 10V SNAP TH |
0 |
|
Datasheet |
VXG | Bulk | Active | 33000 µF | ±20% | 10 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.49 A @ 120 Hz | 4.0135 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
220MXC1200MEFC30X45CAP ALUM 1200UF 20% 220V SNAP TH |
0 |
|
Datasheet |
MXC | Bulk | Not For New Designs | 1200 µF | ±20% | 220 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.88 A @ 120 Hz | 4.32 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
450USG330MEFC30X35CAP ALUM 330UF 20% 450V SNAP TH |
0 |
|
Datasheet |
USG | Bulk | Active | 330 µF | ±20% | 450 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.1 A @ 120 Hz | 2.94 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
220KXF180MEFC22X20CAP ALUM 180UF 20% 220V SNAP TH |
0 |
|
Datasheet |
KXF | Bulk | Active | 180 µF | ±20% | 220 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 800 mA @ 120 Hz | 1.2 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
|
400NXG270MEFC25X45CAP ALUM 270UF 20% 400V SNAP TH |
0 |
|
Datasheet |
NXG | Bulk | Active | 270 µF | ±20% | 400 V | - | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.7 A @ 120 Hz | 2.38 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
50MXG2700MEFCSN20X30CAP ALUM 2700UF 20% 50V SNAP TH |
0 |
|
Datasheet |
MXG | Bulk | Active | 2700 µF | ±20% | 50 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.73 A @ 120 Hz | 1.9895 A @ 10 kHz | - | 0.394" (10.00mm) | 0.787" Dia (20.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
EKHS501VSN121MP40SCAP ALUM 120UF 20% 500V SNAP TH |
0 |
|
- |
KHS | Bulk | Active | 120 µF | ±20% | 500 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 890 mA @ 120 Hz | 1.2727 A @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|

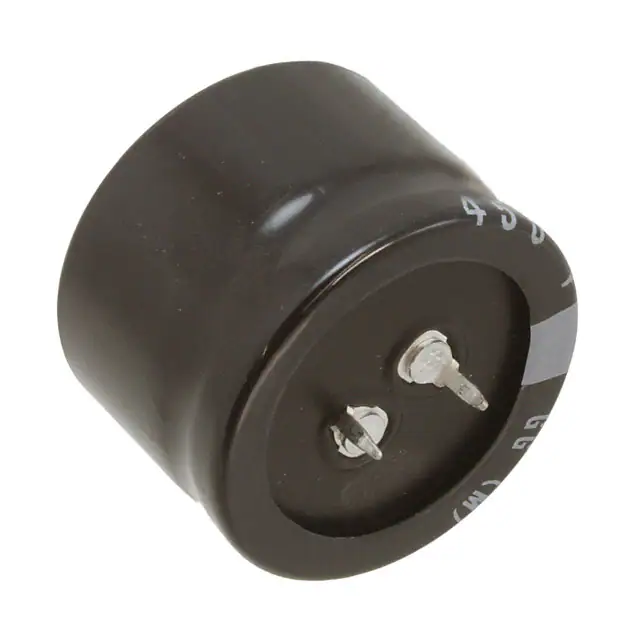

LGG2Z122MELC25CAP ALUM 1200UF 20% 180V SNAP TH |
0 |
|
Datasheet |
LGG | Bulk | Active | 1200 µF | ±20% | 180 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.15 A @ 120 Hz | 3.225 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
ELG827M250AS5AACAP ALUM SNAP-IN 105C |
0 |
|
Datasheet |
ELG | Bulk | Active | 820 µF | ±20% | 250 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.15 A @ 120 Hz | 3.225 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
380LQ182M200K052CAP ALUM 1800UF 20% 200V SNAP TH |
0 |
|
Datasheet |
380LQ | Bulk | Active | 1800 µF | ±20% | 200 V | 160mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.32 A @ 120 Hz | 6.05 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
LAR2E102MELC35CAP ALUM 1000UF 20% 250V SNAP TH |
0 |
|
Datasheet |
LAR | Bulk | Active | 1000 µF | ±20% | 250 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.2 A @ 120 Hz | 3.3 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.378" (35.00mm) | - | Through Hole | |
|
|
LSK391M2P---3050SCAP ALUM 420V POLAR |
0 |
|
- |
LSK | Active | 390 µF | ±20% | 420 V | 510mOhm @ 120Hz | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.25 A @ 120 Hz | 1.75 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | ||
|
16MXC39000MEFCSN35X35CAP ALUM 39000UF 20% 16V SNAP TH |
0 |
|
Datasheet |
MXC | Bulk | Not For New Designs | 39000 µF | ±20% | 16 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.81 A @ 120 Hz | 5.5315 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
ALA7DA361CC400CAP ALUM 360UF 20% 400V SNAP TH |
0 |
|
Datasheet |
ALA7D | Bulk | Active | 360 µF | ±20% | 400 V | 487.8mOhm @ 100Hz | 13000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 2.84 A @ 100 Hz | 5.82 A @ 10 kHz | 1.628 Ohms | - | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
ALA7DD361CC400CAP ALUM 360UF 20% 400V SNAP TH |
0 |
|
Datasheet |
ALA7D | Bulk | Active | 360 µF | ±20% | 400 V | 487.8mOhm @ 100Hz | 13000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 2.37 A @ 100 Hz | 5.91 A @ 10 kHz | 190.8 mOhms | - | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
ALA7DF361CC400CAP ALUM 360UF 20% 400V SNAP TH |
0 |
|
Datasheet |
ALA7D | Bulk | Active | 360 µF | ±20% | 400 V | 487.8mOhm @ 100Hz | 13000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 1.91 A @ 100 Hz | 5.29 A @ 10 kHz | 265.4 mOhms | - | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole |
