Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EKMQ421VSN681MA50SCAP ALUM 680UF 20% 420V SNAP TH |
0 |
|
Datasheet |
KMQ | Bulk | Active | 680 µF | ±20% | 420 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.2 A @ 120 Hz | 3.146 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
EKHS501VSN121MQ30SCAP ALUM 120UF 20% 500V SNAP TH |
0 |
|
- |
KHS | Bulk | Active | 120 µF | ±20% | 500 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 890 mA @ 120 Hz | 1.2727 A @ 50 kHz | - | 0.394" (10.00mm) | 1.000" Dia (25.40mm) | 1.181" (30.00mm) | - | Through Hole | |
|
|
PEH506VDD3330M2CAP ALUM SNAP-IN 85C |
0 |
|
Datasheet |
PEH506 | Box | Active | 330 µF | ±20% | 400 V | 360mOhm @ 100Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.9 A @ 100 Hz | 6.7 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
380LX821M250A022CAP ALUM 820UF 20% 250V SNAP TH |
0 |
|
Datasheet |
380LX | Bulk | Active | 820 µF | ±20% | 250 V | 222mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.8 A @ 120 Hz | 3.9 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
LSM331M2W---3050SCAP ALUM 450V POLAR |
0 |
|
- |
LSM | Active | 330 µF | ±20% | 450 V | 603mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.42 A @ 120 Hz | 1.988 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | ||
|
LKS1V153MESBCAP ALUM 15000UF 20% 35V SNAP TH |
0 |
|
Datasheet |
LKS | Bulk | Obsolete | 15000 µF | ±20% | 35 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 3.7 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|
LKS1H822MESCCAP ALUM 8200UF 20% 50V SNAP TH |
0 |
|
Datasheet |
LKS | Bulk | Obsolete | 8200 µF | ±20% | 50 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 3.45 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|

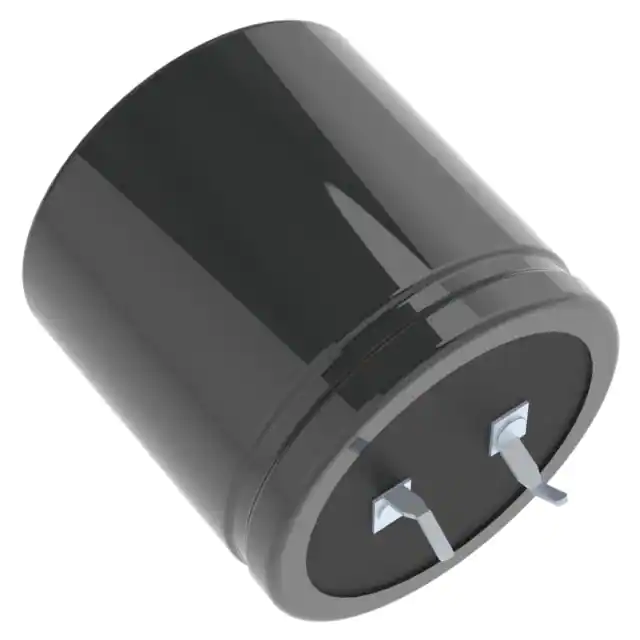

LKS1K332MESBCAP ALUM 3300UF 20% 80V SNAP TH |
0 |
|
Datasheet |
LKS | Bulk | Obsolete | 3300 µF | ±20% | 80 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 3 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
LKS1J562MESBCAP ALUM 5600UF 20% 63V SNAP TH |
0 |
|
Datasheet |
LKS | Bulk | Obsolete | 5600 µF | ±20% | 63 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 3.3 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
LKSA2123MESBCAP ALUM 12000UF 20% 42V SNAP TH |
0 |
|
Datasheet |
LKS | Bulk | Obsolete | 12000 µF | ±20% | 42 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 3.8 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
LKSN2682MESCCAP ALUM 6800UF 20% 56V SNAP TH |
0 |
|
Datasheet |
LKS | Bulk | Obsolete | 6800 µF | ±20% | 56 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 3.5 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
ALC70C471DC350CAP ALUM 470UF 20% 350V SNAP TH |
0 |
|
Datasheet |
ALC70 | Bulk | Active | 470 µF | ±20% | 350 V | 302mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.25 A @ 100 Hz | 5.26 A @ 10 kHz | 158 mOhms | 0.886" (22.50mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
ALC70D471DC350CAP ALUM 470UF 20% 350V SNAP TH |
0 |
|
Datasheet |
ALC70 | Bulk | Active | 470 µF | ±20% | 350 V | 302mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.25 A @ 100 Hz | 5.26 A @ 10 kHz | 158 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
ALC70E471DC350CAP ALUM 470UF 20% 350V SNAP TH |
0 |
|
Datasheet |
ALC70 | Bulk | Active | 470 µF | ±20% | 350 V | 302mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.25 A @ 100 Hz | 5.26 A @ 10 kHz | 158 mOhms | 0.886" (22.50mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
ALC70F471DC350CAP ALUM 470UF 20% 350V SNAP TH |
0 |
|
Datasheet |
ALC70 | Bulk | Active | 470 µF | ±20% | 350 V | 302mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.25 A @ 100 Hz | 5.26 A @ 10 kHz | 158 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
381LQ102M200A012CAP ALUM 1000UF 20% 200V SNAP TH |
0 |
|
Datasheet |
381LQ | Bulk | Obsolete | 1000 µF | ±20% | 200 V | 216mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.3 A @ 120 Hz | 3.22 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
381LX391M350A042CAP ALUM 390UF 20% 350V SNAP TH |
0 |
|
Datasheet |
381LX | Bulk | Obsolete | 390 µF | ±20% | 350 V | 510mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.3 A @ 120 Hz | 1.8 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
LKS1H222MESZCAP ALUM 2200UF 20% 50V SNAP TH |
0 |
|
Datasheet |
LKS | Bulk | Obsolete | 2200 µF | ±20% | 50 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 1.75 A @ 120 Hz | - | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
|
SLPX391M400H5P3CAP ALUM 390UF 20% 400V SNAP TH |
0 |
|
Datasheet |
SLPX | Bulk | Active | 390 µF | ±20% | 400 V | 510mOhm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.28 A @ 120 Hz | 3.35 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
160MXC1200MEFC30X35CAP ALUM 1200UF 20% 160V SNAP TH |
0 |
|
Datasheet |
MXC | Bulk | Not For New Designs | 1200 µF | ±20% | 160 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.49 A @ 120 Hz | 3.735 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole |
