Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
200SXC1000MEFC30X45CAP ALUM 1000UF 20% 200V SNAP TH |
0 |
|
Datasheet |
SXC | Bulk | Active | 1000 µF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.4 A @ 120 Hz | 2.832 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
LKG1H332MESBCKCAP ALUM 3300UF 20% 50V SNAP TH |
0 |
|
Datasheet |
LKG | Bulk | Obsolete | 3300 µF | ±20% | 50 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 3.3 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
|
LKG1J332MESBCKCAP ALUM 3300UF 20% 63V SNAP TH |
0 |
|
Datasheet |
LKG | Bulk | Obsolete | 3300 µF | ±20% | 63 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 3.8 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
LKG1K152MESCCKCAP ALUM 1500UF 20% 80V SNAP TH |
0 |
|
Datasheet |
LKG | Bulk | Obsolete | 1500 µF | ±20% | 80 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 3.25 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
ELG337M400AS5AACAP ALUM SNAP-IN 105C |
0 |
|
Datasheet |
ELG | Bulk | Active | 330 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.4 A @ 120 Hz | 2.03 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|

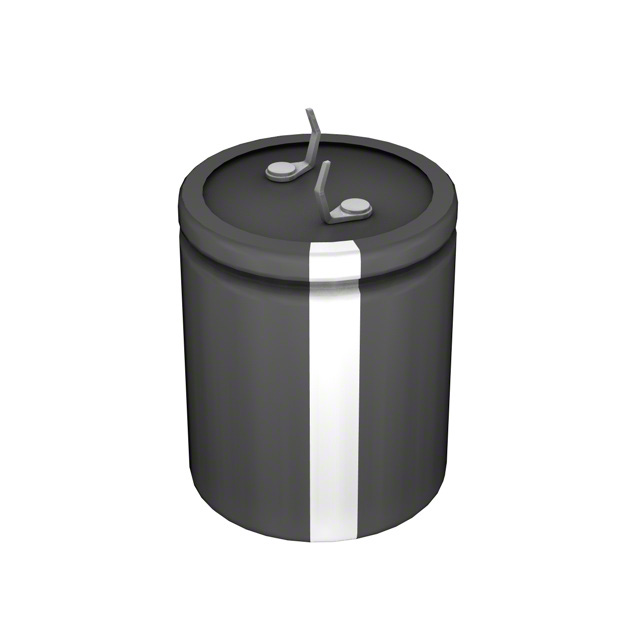

LP181M250C3P3CAP ALUM 180UF 20% 250V SNAP TH |
0 |
|
Datasheet |
LP | Bulk | Active | 180 µF | ±20% | 250 V | 1.4Ohm @ 120Hz | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 686 mA @ 120 Hz | 960.4 mA @ 100 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
|
B43547A2108M060CAP ALUM SNAP |
0 |
|
Datasheet |
* | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
475MXH180MEFCSN35X25CAP ALUM 180UF 20% 475V SNAP TH |
0 |
|
Datasheet |
MXH | Bulk | Active | 180 µF | ±20% | 475 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.15 A @ 120 Hz | 1.61 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
B43642C5227M000CAP ALUM 220UF 20% 450V SNAP TH |
0 |
|
Datasheet |
B43642 | Bulk | Active | 220 µF | ±20% | 450 V | 390mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.23 A @ 100 Hz | - | 560 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
EKMT421VSN181MQ30SCAP ALUM 180UF 20% 420V SNAP TH |
0 |
|
Datasheet |
KMT | Bulk | Active | 180 µF | ±20% | 420 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.28 A @ 120 Hz | 1.8304 A @ 50 kHz | - | 0.394" (10.00mm) | 1.000" Dia (25.40mm) | 1.280" (32.50mm) | - | Through Hole | |
|
ALC80A622CD063CAP ALUM 6200UF 20% 63V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 6200 µF | ±20% | 63 V | 57mOhm @ 100Hz | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 5.67 A @ 100 Hz | 8.72 A @ 10 kHz | 42 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
ALC80D622CD063CAP ALUM 6200UF 20% 63V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 6200 µF | ±20% | 63 V | 57mOhm @ 100Hz | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 5.67 A @ 100 Hz | 8.72 A @ 10 kHz | 42 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
ALC80F622CD063CAP ALUM 6200UF 20% 63V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 6200 µF | ±20% | 63 V | 57mOhm @ 100Hz | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 5.67 A @ 100 Hz | 8.72 A @ 10 kHz | 42 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
B43544G9337M000CAP ALUM 330UF 20% 400V SNAP TH |
0 |
|
- |
B43544 | Bulk | Active | 330 µF | ±20% | 400 V | 210mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.32 A @ 100 Hz | - | 300 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
381LX561M250J052CAP ALUM 560UF 20% 250V SNAP TH |
0 |
|
Datasheet |
381LX | Bulk | Obsolete | 560 µF | ±20% | 250 V | 355mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.5 A @ 120 Hz | 2.1 A @ 20 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
672D107F020CG5DCAP ALUM 100UF 20V RADIAL TH |
0 |
|
Datasheet |
672D | Bulk | Active | 100 µF | -10%, +50% | 20 V | 1.25Ohm @ 120Hz | - | -55°C ~ 105°C | Polar | - | General Purpose | 490 mA @ 120 Hz | 700 mA @ 100 kHz | 350 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.906" (23.00mm) | - | Through Hole | |
|
UVR1J682MRDCAP ALUM 6800UF 20% 63V RADIAL |
0 |
|
Datasheet |
UVR | Bulk | Obsolete | 6800 µF | ±20% | 63 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.9 A @ 120 Hz | 4.485 A @ 10 kHz | - | 0.492" (12.50mm) | 0.984" Dia (25.00mm) | 1.969" (50.00mm) | - | Through Hole | |
|
MAL212544123E3CAP ALUM 12000UF 20% 10V AXIAL |
0 |
|
Datasheet |
125 ALS | Box | Active | 12000 µF | ±20% | 10 V | 49mOhm @ 100Hz | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.73 A @ 100 Hz | 2.076 A @ 10 kHz | 74 mOhms | - | 0.827" Dia x 1.496" L (21.00mm x 38.00mm) | - | - | Through Hole | |
|
|
MAL212545103E3CAP ALUM 10000UF 20% 16V AXIAL |
0 |
|
Datasheet |
125 ALS | Box | Active | 10000 µF | ±20% | 16 V | 48mOhm @ 100Hz | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.67 A @ 100 Hz | 2.171 A @ 10 kHz | 62 mOhms | - | 0.709" Dia x 1.496" L (18.00mm x 38.00mm) | - | - | Through Hole | |
|
MAL212546682E3CAP ALUM 6800UF 20% 25V AXIAL TH |
0 |
|
- |
125 ALS | Box | Active | 6800 µF | ±20% | 25 V | 51mOhm @ 100Hz | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.65 A @ 100 Hz | 2.145 A @ 10 kHz | 71 mOhms | - | 0.709" Dia x 1.496" L (18.00mm x 38.00mm) | - | - | Through Hole |
