Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

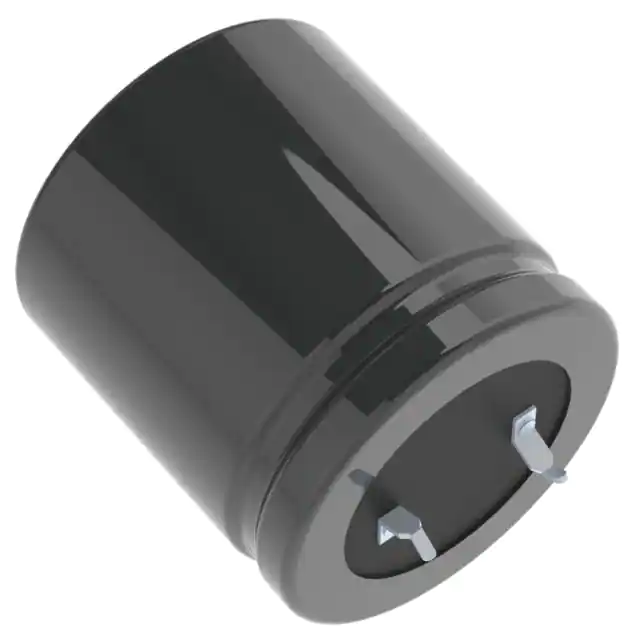

LKG1V472MESAAKCAP ALUM 4700UF 20% 35V SNAP TH |
0 |
|
Datasheet |
LKG | Bulk | Obsolete | 4700 µF | ±20% | 35 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 2.15 A @ 120 Hz | - | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
80MXC5600MEFCSN35X40CAP ALUM 5600UF 20% 80V SNAP TH |
0 |
|
Datasheet |
MXC | Bulk | Not For New Designs | 5600 µF | ±20% | 80 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.8 A @ 120 Hz | 4.37 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
MAL209347221E3CAP ALUM 220UF 20% 450V SNAP TH |
0 |
|
Datasheet |
093 PMG-SI | Tape & Box (TB) | Active | 220 µF | ±20% | 450 V | 730mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.45 A @ 120 Hz | - | 560 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
MAL209357221E3CAP ALUM 220UF 20% 450V SNAP TH |
0 |
|
Datasheet |
093 PMG-SI | Tape & Box (TB) | Active | 220 µF | ±20% | 450 V | 660mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.45 A @ 120 Hz | - | 490 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
MAL213848152E3CAP ALUM 1500UF 20% 63V SNAP TH |
0 |
|
Datasheet |
138 AML | Tape & Reel (TR) | Active | 1500 µF | ±20% | 63 V | 100mOhm @ 100kHz | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | Automotive | 1.68 A @ 100 Hz | - | 110 mOhms | - | 0.827" Dia (21.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|

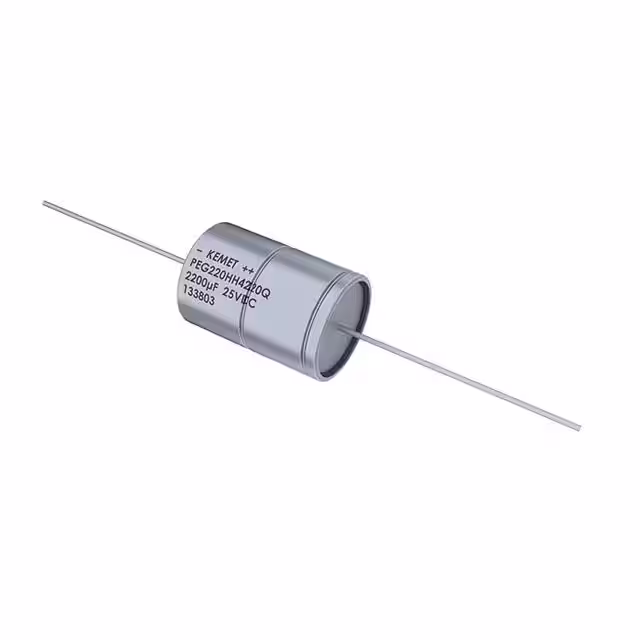

PEG225MJ4140QE4CAP ALUM 1400UF 63V AXIAL TH |
0 |
|
Datasheet |
PEG225 | Bulk | Active | 1400 µF | -10%, +30% | 63 V | 57mOhm @ 100Hz | 2000 Hrs @ 150°C | -40°C ~ 150°C | Polar | AEC-Q200 | Automotive | 7.315 A @ 100 Hz | 20.9 A @ 5 kHz | - | - | 0.795" Dia x 1.366" L (20.20mm x 34.70mm) | - | - | Through Hole | |
|
ALC80D332CF100CAP ALUM 3300UF 20% 100V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 3300 µF | ±20% | 100 V | 86mOhm @ 100Hz | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 5.64 A @ 100 Hz | 8.35 A @ 10 kHz | 70 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
ALC80F332CF100CAP ALUM 3300UF 20% 100V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 3300 µF | ±20% | 100 V | 86mOhm @ 100Hz | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 5.64 A @ 100 Hz | 8.35 A @ 10 kHz | 70 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
ALC70A203CF040CAP ALUM 20000UF 20% 40V SNAP TH |
0 |
|
Datasheet |
ALC70 | Bulk | Active | 20000 µF | ±20% | 40 V | 37mOhm @ 100Hz | 13000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 7.64 A @ 100 Hz | 9.79 A @ 10 kHz | 31 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
|
ALC70D203CF040CAP ALUM 20000UF 20% 40V SNAP TH |
0 |
|
Datasheet |
ALC70 | Bulk | Active | 20000 µF | ±20% | 40 V | 37mOhm @ 100Hz | 13000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 7.64 A @ 100 Hz | 9.79 A @ 10 kHz | 31 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
ALC70F203CF040CAP ALUM 20000UF 20% 40V SNAP TH |
0 |
|
Datasheet |
ALC70 | Bulk | Active | 20000 µF | ±20% | 40 V | 37mOhm @ 100Hz | 13000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 7.64 A @ 100 Hz | 9.79 A @ 10 kHz | 31 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
MAL205629102E3CAP ALUM 1000UF 20% 100V SNAP TH |
0 |
|
Datasheet |
056 PSM-SI | Tape & Box (TB) | Active | 1000 µF | ±20% | 100 V | 260mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 1.35 A @ 100 Hz | - | 225 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
MAL205649102E3CAP ALUM 1000UF 20% 100V SNAP TH |
0 |
|
Datasheet |
056 PSM-SI | Tape & Box (TB) | Active | 1000 µF | ±20% | 100 V | 260mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 1.35 A @ 100 Hz | - | 225 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
MAL205654103E3CAP ALUM 10000UF 20% 10V SNAP TH |
0 |
|
Datasheet |
056 PSM-SI | Tape & Box (TB) | Active | 10000 µF | ±20% | 10 V | 56mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 2.56 A @ 100 Hz | - | 45 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
MAL205674103E3CAP ALUM 10000UF 20% 10V SNAP TH |
0 |
|
Datasheet |
056 PSM-SI | Tape & Box (TB) | Active | 10000 µF | ±20% | 10 V | 56mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 2.56 A @ 100 Hz | - | 45 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
MAL205679102E3CAP ALUM 1000UF 20% 100V SNAP TH |
0 |
|
Datasheet |
056 PSM-SI | Tape & Box (TB) | Active | 1000 µF | ±20% | 100 V | 265mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 1.27 A @ 100 Hz | - | 235 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
MAL205912221E3CAP ALUM 220UF 20% 200V SNAP TH |
0 |
|
Datasheet |
059 PLL-SI | Tape & Box (TB) | Active | 220 µF | ±20% | 200 V | 610mOhm @ 100Hz | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 860 mA @ 100 Hz | - | 430 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
MAL205916689E3CAP ALUM 68UF 20% 400V SNAP TH |
0 |
|
Datasheet |
059 PLL-SI | Tape & Box (TB) | Active | 68 µF | ±20% | 400 V | 2.95Ohm @ 100Hz | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 380 mA @ 100 Hz | - | 2.42 Ohms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
MAL205932221E3CAP ALUM 220UF 20% 200V SNAP TH |
0 |
|
Datasheet |
059 PLL-SI | Tape & Box (TB) | Active | 220 µF | ±20% | 200 V | 610mOhm @ 100Hz | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 860 mA @ 100 Hz | - | 430 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
MAL205936689E3CAP ALUM 68UF 20% 400V SNAP TH |
0 |
|
Datasheet |
059 PLL-SI | Tape & Box (TB) | Active | 68 µF | ±20% | 400 V | 2.95Ohm @ 100Hz | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 380 mA @ 100 Hz | - | 2.42 Ohms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.457" (37.00mm) | - | Through Hole |
