Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAL205675103E3CAP ALUM 10000UF 20% 16V SNAP TH |
0 |
|
Datasheet |
056 PSM-SI | Tape & Box (TB) | Active | 10000 µF | ±20% | 16 V | 47mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 3.02 A @ 100 Hz | - | 39 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
MAL205854682E3CAP ALUM 6800UF 20% 10V SNAP TH |
0 |
|
Datasheet |
058 PLL-SI | Tape & Box (TB) | Active | 6800 µF | ±20% | 10 V | 61mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.44 A @ 100 Hz | - | 44 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
MAL205874682E3CAP ALUM 6800UF 20% 10V SNAP TH |
0 |
|
Datasheet |
058 PLL-SI | Tape & Box (TB) | Active | 6800 µF | ±20% | 10 V | 61mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.44 A @ 100 Hz | - | 44 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
TVAN1310.1-E3CAP ALUM 100UF 50V AXIAL TH |
0 |
|
Datasheet |
TVA ATOM® | Bulk | Active | 100 µF | - | 50 V | - | - | -40°C ~ 85°C | Bi-Polar | - | Audio | - | - | - | - | 0.375" Dia x 1.500" L (9.53mm x 38.10mm) | - | - | Through Hole | |
|
LAK2G331MELB50CAP ALUM 330UF 20% 400V SNAP TH |
0 |
|
Datasheet |
LAK | Bulk | Active | 330 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.21 A @ 120 Hz | 1.392 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|

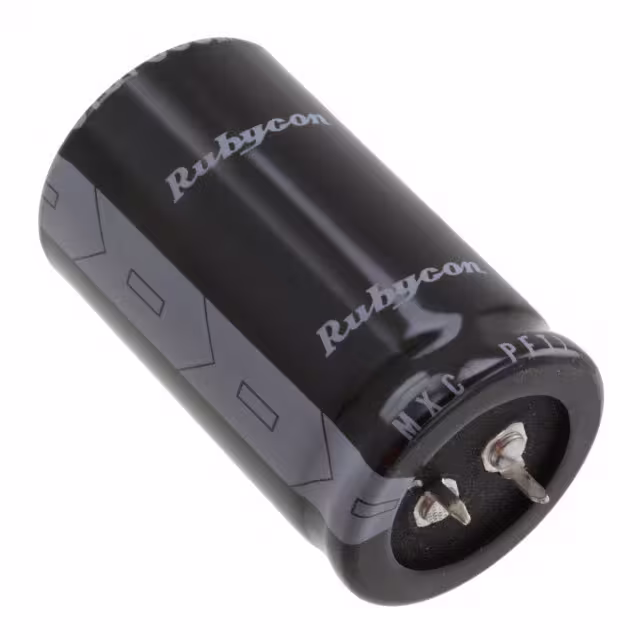

315MXC680MEFCSN30X50CAP ALUM 680UF 20% 315V SNAP TH |
0 |
|
Datasheet |
MXC | Bulk | Not For New Designs | 680 µF | ±20% | 315 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.14 A @ 120 Hz | 2.996 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
B43640A9477M002CAP ALUM 470UF 20% 400V SNAP TH |
0 |
|
Datasheet |
B43640 | Bulk | Active | 470 µF | ±20% | 400 V | 210mOhm @ 100Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.82 A @ 100 Hz | - | 320 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
ALF40C181EC450CAP ALUM 180UF 20% 450V PRESS |
0 |
|
Datasheet |
ALF40 | Bulk | Active | 180 µF | ±20% | 450 V | 538mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.01 A @ 100 Hz | 4.7 A @ 10 kHz | 374 mOhms | 0.886" (22.50mm) | 1.575" Dia (40.00mm) | 1.457" (37.00mm) | - | Through Hole, Press-Fit | |
|
LKX2E681MESB40CAP ALUM 680UF 20% 250V SNAP TH |
0 |
|
Datasheet |
LKX | Bulk | Active | 680 µF | ±20% | 250 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | Audio | - | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
SLPX561M350H5P3CAP ALUM 560UF 20% 350V SNAP TH |
0 |
|
Datasheet |
SLPX | Bulk | Active | 560 µF | ±20% | 350 V | 355mOhm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.75 A @ 120 Hz | 4.04 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
SLPX681M315E4P3CAP ALUM 680UF 20% 315V SNAP TH |
0 |
|
Datasheet |
SLPX | Bulk | Active | 680 µF | ±20% | 315 V | 293mOhm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.8 A @ 120 Hz | 4.12 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
ALC70A431EB400CAP ALUM 430UF 20% 400V SNAP TH |
0 |
|
Datasheet |
ALC70 | Bulk | Active | 430 µF | ±20% | 400 V | 334mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.22 A @ 100 Hz | 4.83 A @ 10 kHz | 180 mOhms | 0.394" (10.00mm) | 1.575" Dia (40.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
ALC70C431EB400CAP ALUM 430UF 20% 400V SNAP TH |
0 |
|
Datasheet |
ALC70 | Bulk | Active | 430 µF | ±20% | 400 V | 334mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.22 A @ 100 Hz | 4.83 A @ 10 kHz | 180 mOhms | 0.886" (22.50mm) | 1.575" Dia (40.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
ALC70D431EB400CAP ALUM 430UF 20% 400V SNAP TH |
0 |
|
Datasheet |
ALC70 | Bulk | Active | 430 µF | ±20% | 400 V | 334mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.22 A @ 100 Hz | 4.83 A @ 10 kHz | 180 mOhms | 0.394" (10.00mm) | 1.575" Dia (40.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
ALC70E431EB400CAP ALUM 430UF 20% 400V SNAP TH |
0 |
|
Datasheet |
ALC70 | Bulk | Active | 430 µF | ±20% | 400 V | 334mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.22 A @ 100 Hz | 4.83 A @ 10 kHz | 180 mOhms | 0.886" (22.50mm) | 1.575" Dia (40.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
ALC70F431EB400CAP ALUM 430UF 20% 400V SNAP TH |
0 |
|
Datasheet |
ALC70 | Bulk | Active | 430 µF | ±20% | 400 V | 334mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.22 A @ 100 Hz | 4.83 A @ 10 kHz | 180 mOhms | 0.394" (10.00mm) | 1.575" Dia (40.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
ELXM351VSN471MA40SCAP ALUM 470UF 20% 350V SNAP TH |
0 |
|
Datasheet |
LXM | Bulk | Active | 470 µF | ±20% | 350 V | - | 7000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.85 A @ 120 Hz | 2.6455 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
B43644C5227M002CAP ALUM 220UF 20% 450V SNAP TH |
0 |
|
Datasheet |
B43644 | Bulk | Active | 220 µF | ±20% | 450 V | 470mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.13 A @ 100 Hz | - | 720 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
B43640E2128M000CAP ALUM 1200UF 20% 250V SNAP TH |
0 |
|
Datasheet |
B43640 | Bulk | Active | 1200 µF | ±20% | 250 V | 70mOhm @ 100Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.68 A @ 100 Hz | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
400HXG470MEFC30X50CAP ALUM 470UF 20% 400V SNAP TH |
0 |
|
Datasheet |
HXG | Bulk | Discontinued at Digi-Key | 470 µF | ±20% | 400 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 3.04 A @ 120 Hz | 4.256 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole |
