Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
220MXC560MEFC30X30CAP ALUM 560UF 20% 220V SNAP TH |
0 |
|
Datasheet |
MXC | Bulk | Not For New Designs | 560 µF | ±20% | 220 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.65 A @ 120 Hz | 2.475 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
420MXK330MEFC35X25CAP ALUM 330UF 20% 420V SNAP TH |
0 |
|
Datasheet |
MXK | Bulk | Active | 330 µF | ±20% | 420 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.45 A @ 120 Hz | 2.03 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
ALF40C273DD025CAP ALUM 27000UF 20% 25V PRESS |
0 |
|
Datasheet |
ALF40 | Bulk | Active | 27000 µF | ±20% | 25 V | 96mOhm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.34 A @ 100 Hz | 3.56 A @ 10 kHz | 86 mOhms | 0.886" (22.50mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole, Press-Fit | |
|
LKG1J562MESCBKCAP ALUM 5600UF 20% 63V SNAP TH |
0 |
|
Datasheet |
LKG | Bulk | Obsolete | 5600 µF | ±20% | 63 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 4.35 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|
LKG1C333MESCAKCAP ALUM 33000UF 20% 16V SNAP TH |
0 |
|
Datasheet |
LKG | Bulk | Obsolete | 33000 µF | ±20% | 16 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 3.65 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
LKG1V183MESCAKCAP ALUM 18000UF 20% 35V SNAP TH |
0 |
|
Datasheet |
LKG | Bulk | Obsolete | 18000 µF | ±20% | 35 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 4.15 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
B41605E0478M008CAP ALUM 55V POLAR |
0 |
|
- |
B41605 | Bulk | Active | 4.7 mF | ±20% | 55 V | 18mOhm @ 100Hz | 5000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive | - | 9 A @ 10 kHz | - | 0.331" (8.40mm) | 0.984" Dia (25.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|

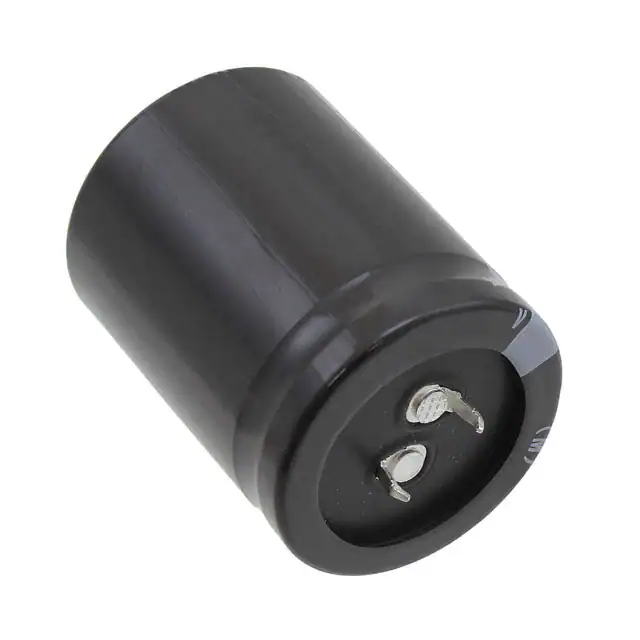

LGU2Z182MELCCAP ALUM 1800UF 20% 180V SNAP TH |
0 |
|
Datasheet |
LGU | Bulk | Active | 1800 µF | ±20% | 180 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.3 A @ 120 Hz | 4.95 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.772" (45.00mm) | - | Through Hole | |
|
450HXC150MEFCSN25X40CAP ALUM 150UF 20% 450V SNAP TH |
0 |
|
Datasheet |
HXC | Bulk | Active | 150 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.49 A @ 120 Hz | 2.086 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
MAL213247152E3CAP ALUM 1500UF 40V SNAP TH |
0 |
|
Datasheet |
132 ALL-DIN | Bulk | Active | 1500 µF | -10%, +50% | 40 V | 100mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.5 A @ 100 Hz | - | - | - | 0.827" Dia (21.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
B43544E7127M000CAP ALUM 120UF 20% 550V SNAP TH |
0 |
|
- |
B43544 | Bulk | Active | 120 µF | ±20% | 550 V | 970mOhm @ 100Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 940 mA @ 100 Hz | - | 1.51 Ohms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
EKMS181VSN182MA35SCAP ALUM 1800UF 20% 180V SNAP TH |
0 |
|
Datasheet |
KMS | Bulk | Active | 1800 µF | ±20% | 180 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 3.68 A @ 120 Hz | 5.52 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.476" (37.50mm) | - | Through Hole | |
|
ALC80A431DD350CAP ALUM 430UF 20% 350V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 430 µF | ±20% | 350 V | 319mOhm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.3 A @ 100 Hz | 6.05 A @ 10 kHz | 168 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
ALC80C431DD350CAP ALUM 430UF 20% 350V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 430 µF | ±20% | 350 V | 319mOhm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.3 A @ 100 Hz | 6.05 A @ 10 kHz | 168 mOhms | 0.886" (22.50mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
ALC80D431DD350CAP ALUM 430UF 20% 350V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 430 µF | ±20% | 350 V | 319mOhm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.3 A @ 100 Hz | 6.05 A @ 10 kHz | 168 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
ALC80E431DD350CAP ALUM 430UF 20% 350V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 430 µF | ±20% | 350 V | 319mOhm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.3 A @ 100 Hz | 6.05 A @ 10 kHz | 168 mOhms | 0.886" (22.50mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
ALC80F431DD350CAP ALUM 430UF 20% 350V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 430 µF | ±20% | 350 V | 319mOhm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.3 A @ 100 Hz | 6.05 A @ 10 kHz | 168 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
LSG222M2D---3555SCAP ALUM 200V POLAR |
0 |
|
- |
LSG | Active | 2.2 mF | ±20% | 200 V | 90mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 3.82 A @ 120 Hz | 5.73 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.244" (57.00mm) | - | Through Hole | ||
|
MAL205625103E3CAP ALUM 10000UF 20% 16V SNAP TH |
0 |
|
Datasheet |
056 PSM-SI | Tape & Box (TB) | Active | 10000 µF | ±20% | 16 V | 44mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 3.28 A @ 100 Hz | - | 34 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
MAL205645103E3CAP ALUM 10000UF 20% 16V SNAP TH |
0 |
|
Datasheet |
056 PSM-SI | Tape & Box (TB) | Active | 10000 µF | ±20% | 16 V | 44mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 3.28 A @ 100 Hz | - | 34 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.654" (42.00mm) | - | Through Hole |
