Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
672D827F015DS5DCAP ALUM 820UF 15V RADIAL TH |
0 |
|
Datasheet |
672D | Bulk | Active | 820 µF | -10%, +50% | 15 V | - | - | -55°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.791" (45.50mm) | - | Through Hole | |
|
|
672D827H015DS5CCAP ALUM 820UF 15V RADIAL TH |
0 |
|
Datasheet |
672D | Bulk | Active | 820 µF | - | 15 V | - | - | -55°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.791" (45.50mm) | - | Through Hole | |
|
LP822M050H9P3CAP ALUM 8200UF 20% 50V SNAP TH |
0 |
|
Datasheet |
LP | Bulk | Active | 8200 µF | ±20% | 50 V | 40mOhm @ 120Hz | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.43 A @ 120 Hz | 3.773 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.969" (50.00mm) | - | Through Hole | |
|

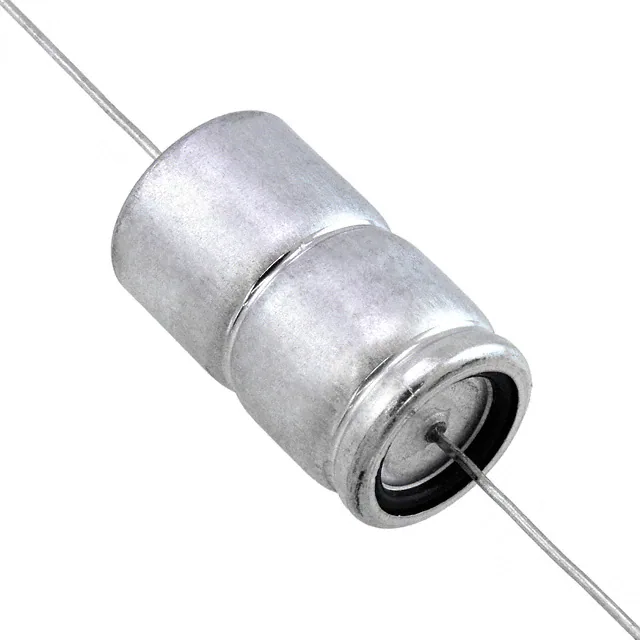

PEG226KJ4220QE4CAP ALUM 2200UF 40V AXIAL |
0 |
|
Datasheet |
PEG226 | Bulk | Active | 2200 µF | -10%, +30% | 40 V | 41mOhm @ 100Hz | 2000 Hrs @ 150°C | -40°C ~ 150°C | Polar | AEC-Q200 | Automotive | 8.995 A @ 100 Hz | 25.7 A @ 5 kHz | - | - | 0.795" Dia x 1.366" L (20.20mm x 34.70mm) | - | - | Through Hole | |
|
B43504E0227M000CAP ALUM 220UF 20% 420V SNAP TH |
0 |
|
Datasheet |
B43504 | Bulk | Not For New Designs | 220 µF | ±20% | 420 V | 610mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.12 A @ 100 Hz | - | 730 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.465" (37.20mm) | - | Through Hole | |
|
PEH532PBC3820M2CAP ALUM SNAP-IN 105C |
0 |
|
Datasheet |
PEH532 | Box | Active | 820 µF | ±20% | 100 V | 260mOhm @ 100Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.3 A @ 100 Hz | 3.5 A @ 100 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
ALA8DD241DC500CAP ALUM 240UF 20% 500V SNAP TH |
0 |
|
Datasheet |
ALA8D | Bulk | Active | 240 µF | ±20% | 500 V | 863.2mOhm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 2.91 A @ 100 Hz | 7.14 A @ 10 kHz | 147 mOhms | - | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
ALA8DC241DC500CAP ALUM 240UF 20% 500V SNAP TH |
0 |
|
Datasheet |
ALA8D | Bulk | Active | 240 µF | ±20% | 500 V | 863.2mOhm @ 100Hz | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.67 A @ 100 Hz | 4.62 A @ 10 kHz | 327.2 mOhms | - | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
MAL215611332E3CAP ALUM 3300UF 20% 50V SNAP TH |
0 |
|
Datasheet |
156 PUM-SI | Bulk | Active | 3300 µF | ±20% | 50 V | 76mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.92 A @ 100 Hz | - | 46 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
MAL215651332E3CAP ALUM 3300UF 20% 50V SNAP TH |
0 |
|
Datasheet |
156 PUM-SI | Bulk | Active | 3300 µF | ±20% | 50 V | 76mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.92 A @ 100 Hz | - | 46 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
10MXC56000MEFC35X45CAP ALUM 56000UF 20% 10V SNAP TH |
0 |
|
Datasheet |
MXC | Bulk | Not For New Designs | 56000 µF | ±20% | 10 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 5 A @ 120 Hz | 5.75 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
315MXC150MEFC25X25CAP ALUM 150UF 20% 315V SNAP TH |
0 |
|
Datasheet |
MXC | Bulk | Not For New Designs | 150 µF | ±20% | 315 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 820 mA @ 120 Hz | 1.148 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
35VXG12000MEFC30X45CAP ALUM 12000UF 20% 35V SNAP TH |
0 |
|
Datasheet |
VXG | Bulk | Active | 12000 µF | ±20% | 35 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.38 A @ 120 Hz | 3.887 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
63USC12000MEFC35X45CAP ALUM 12000UF 20% 63V SNAP TH |
0 |
|
Datasheet |
USC | Bulk | Not For New Designs | 12000 µF | ±20% | 63 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 6.3 A @ 120 Hz | 7.245 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
450USC390MEFCSN30X45CAP ALUM 390UF 20% 450V SNAP TH |
0 |
|
Datasheet |
USC | Bulk | Not For New Designs | 390 µF | ±20% | 450 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.35 A @ 120 Hz | 3.29 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
B43547B6187M000CAP ALUM 180UF 20% 500V SNAP TH |
0 |
|
Datasheet |
B43547 | Bulk | Active | 180 µF | ±20% | 500 V | 350mOhm @ 100Hz | 8000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.29 A @ 100 Hz | - | 470 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
ALA7DF331CE500CAP ALUM 330UF 20% 500V SNAP TH |
0 |
|
Datasheet |
ALA7D | Bulk | Active | 330 µF | ±20% | 500 V | 750.6mOhm @ 100Hz | 13000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 2.42 A @ 100 Hz | 6.46 A @ 10 kHz | 189.4 mOhms | - | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
PEG228HMS4700QE4CAP ALUM 7000UF 25V AXIAL TH |
0 |
|
Datasheet |
PEG228 | Tray | Active | 7000 µF | -10%, +30% | 25 V | 20mOhm @ 100Hz | 2000 Hrs @ 150°C | -40°C ~ 150°C | Polar | AEC-Q200 | Automotive | 3.465 A @ 100 Hz | 9.9 A @ 5 kHz | - | - | 0.795" Dia x 1.681" L (20.20mm x 42.70mm) | - | - | Through Hole | |
|
|
PEH532MBG4470M2SCAP ALUM SNAP-IN 105C |
0 |
|
Datasheet |
PEH532 | Box | Active | 4.7 mF | ±20% | 63 V | 45mOhm @ 100Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.1 A @ 100 Hz | 8.7 A @ 20 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
337LBB450M2DGCAP ALUM 330UF 20% 450V SNAP TH |
0 |
|
Datasheet |
LBB | Bulk | Active | 330 µF | ±20% | 450 V | 753.57mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.35 A @ 120 Hz | 3.4545 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole |
