Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
420KXF150MEFC35X20CAP ALUM 150UF 20% 420V SNAP TH |
0 |
|
Datasheet |
KXF | Bulk | Active | 150 µF | ±20% | 420 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 800 mA @ 120 Hz | 1.12 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
ELXS181VSN222MA40SCAP ALUM 2200UF 20% 180V SNAP TH |
0 |
|
Datasheet |
LXS | Bulk | Active | 2200 µF | ±20% | 180 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 4.22 A @ 120 Hz | 6.33 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.673" (42.50mm) | - | Through Hole | |
|
ALF40C332DF100CAP ALUM 3300UF 20% 100V PRESS |
0 |
|
Datasheet |
ALF40 | Bulk | Active | 3300 µF | ±20% | 100 V | 108mOhm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.12 A @ 100 Hz | 3.97 A @ 10 kHz | 86 mOhms | 0.886" (22.50mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole, Press-Fit | |
|
|
420USC220MEFC25X35CAP ALUM 220UF 20% 420V SNAP TH |
0 |
|
Datasheet |
USC | Bulk | Not For New Designs | 220 µF | ±20% | 420 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.58 A @ 120 Hz | 2.212 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
B43545A5277M000CAP ALUM 270UF 20% 450V SNAP TH |
0 |
|
Datasheet |
B43545 | Tray | Active | 270 µF | ±20% | 450 V | 330mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.83 A @ 100 Hz | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
381LR122M200A032CAP ALUM 1200UF 20% 200V SNAP TH |
0 |
|
Datasheet |
381LR | Bulk | Active | 1200 µF | ±20% | 200 V | 124mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.13 A @ 120 Hz | 4.47 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
LSG391M2W---4030SCAP ALUM 450V POLAR |
0 |
|
- |
LSG | Active | 390 µF | ±20% | 450 V | 510mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.51 A @ 120 Hz | 2.1593 A @ 10 kHz | - | 0.394" (10.00mm) | 1.575" Dia (40.00mm) | 1.260" (32.00mm) | - | Through Hole | ||
|

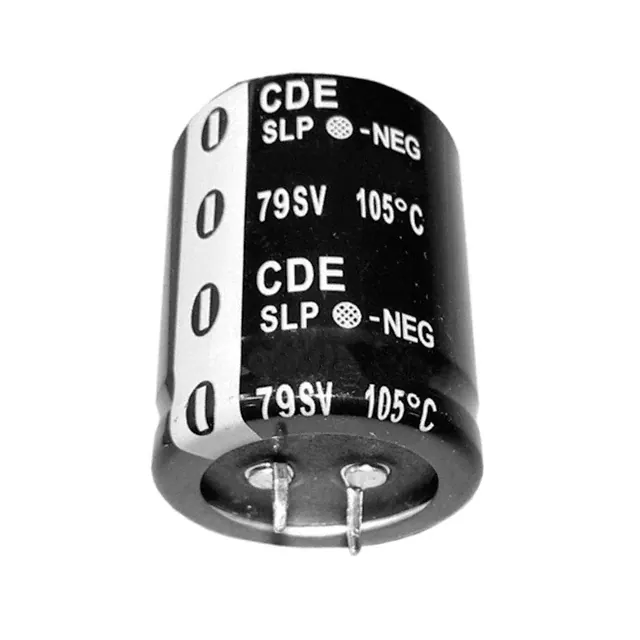

SLP392M100H7P3CAP ALUM 3900UF 20% 100V SNAP TH |
0 |
|
Datasheet |
SLP0712TE (750W) | Bulk | Active | 3900 µF | ±20% | 100 V | 68mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.67 A @ 120 Hz | 4.59 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|
SLP331M420E4P3CAP ALUM 330UF 20% 420V SNAP TH |
0 |
|
Datasheet |
SLP0712TE (750W) | Bulk | Active | 330 µF | ±20% | 420 V | 1.005Ohm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.49 A @ 120 Hz | 2.19 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
ALC80A562CC063CAP ALUM 5600UF 20% 63V SNAP TH |
0 |
|
Datasheet |
ALC80 | Box | Active | 5600 µF | ±20% | 63 V | 64mOhm @ 100Hz | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 5.18 A @ 100 Hz | 7.82 A @ 10 kHz | 47 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|

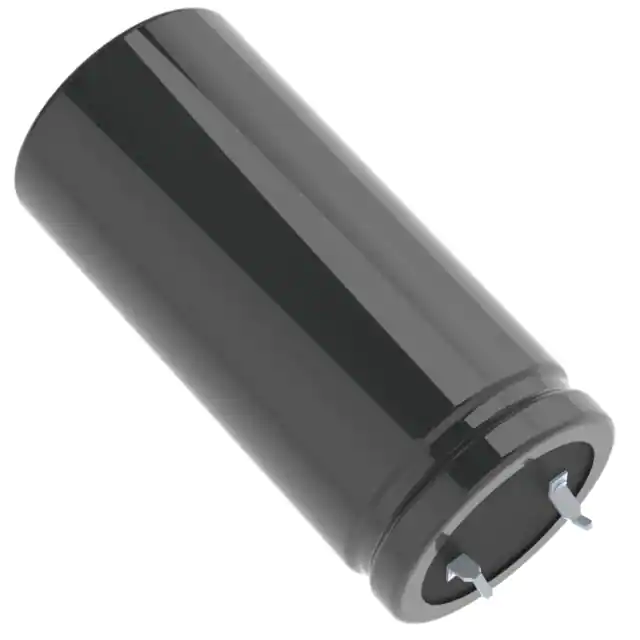

LKG1J222MESZBKCAP ALUM 2200UF 20% 63V SNAP TH |
0 |
|
Datasheet |
LKG | Bulk | Obsolete | 2200 µF | ±20% | 63 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 2.7 A @ 120 Hz | - | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.772" (45.00mm) | - | Through Hole | |
|

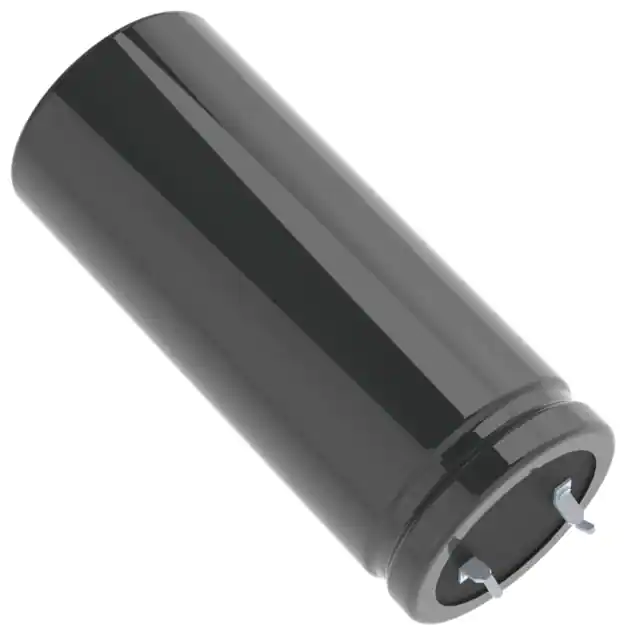

LKG1V682MESYAKCAP ALUM 6800UF 20% 35V SNAP TH |
0 |
|
Datasheet |
LKG | Bulk | Obsolete | 6800 µF | ±20% | 35 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 2.5 A @ 120 Hz | - | - | 0.394" (10.00mm) | 0.787" Dia (20.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
|
B43642A5337M002CAP ALUM 330UF 20% 450V SNAP TH |
0 |
|
Datasheet |
B43642 | Bulk | Active | 330 µF | ±20% | 450 V | 260mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.64 A @ 100 Hz | - | 370 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
MAL215952391E3CAP ALUM 390UF 20% 200V SNAP TH |
0 |
|
Datasheet |
159 PUL-SI | Bulk | Active | 390 µF | ±20% | 200 V | 380mOhm | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | - | 1.722 A @ 10 kHz | 470 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
MAL215942391E3CAP ALUM 390UF 20% 200V SNAP TH |
0 |
|
Datasheet |
159 PUL-SI | Bulk | Active | 390 µF | ±20% | 200 V | 610mOhm @ 100Hz | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.23 A @ 120 Hz | - | 470 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
MAL205256479E3CAP ALUM 47UF 400V RADIAL TH |
0 |
|
Datasheet |
052 PED-PW | Bulk | Active | 47 µF | -10%, +30% | 400 V | 2.7Ohm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 470 mA @ 100 Hz | - | 2.125 Ohms | 0.492" (12.50mm) | 0.984" Dia (25.00mm) | 1.378" (35.00mm) | - | Through Hole | |
|
MAL205856332E3CAP ALUM 3300UF 20% 25V SNAP TH |
0 |
|
Datasheet |
058 PLL-SI | Tape & Box (TB) | Active | 3300 µF | ±20% | 25 V | 73mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.23 A @ 100 Hz | - | 44 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
MAL205876332E3CAP ALUM 3300UF 20% 25V SNAP TH |
0 |
|
Datasheet |
058 PLL-SI | Tape & Box (TB) | Active | 3300 µF | ±20% | 25 V | 73mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.23 A @ 100 Hz | - | 44 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
MAL215922391E3CAP ALUM 390UF 20% 200V SNAP TH |
0 |
|
Datasheet |
159 PUL-SI | Bulk | Active | 390 µF | ±20% | 200 V | 610mOhm @ 100Hz | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.23 A @ 120 Hz | - | 470 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
MAL215923271E3CAP ALUM 270UF 20% 250V SNAP TH |
0 |
|
Datasheet |
159 PUL-SI | Bulk | Active | 270 µF | ±20% | 250 V | 880mOhm @ 100Hz | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.07 A @ 120 Hz | - | 560 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.457" (37.00mm) | - | Through Hole |
