Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ALC80C122DD200CAP ALUM 1200UF 20% 200V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 1200 µF | ±20% | 200 V | 182mOhm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.27 A @ 100 Hz | 6.61 A @ 10 kHz | 111 mOhms | 0.886" (22.50mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
ALC80D122DD200CAP ALUM 1200UF 20% 200V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 1200 µF | ±20% | 200 V | 182mOhm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.27 A @ 100 Hz | 6.61 A @ 10 kHz | 111 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
ALC80E122DD200CAP ALUM 1200UF 20% 200V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 1200 µF | ±20% | 200 V | 182mOhm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.27 A @ 100 Hz | 6.61 A @ 10 kHz | 111 mOhms | 0.886" (22.50mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
ALC80F122DD200CAP ALUM 1200UF 20% 200V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 1200 µF | ±20% | 200 V | 182mOhm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.27 A @ 100 Hz | 6.61 A @ 10 kHz | 111 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
ALA8DA241DC500CAP ALUM 240UF 20% 500V SNAP TH |
0 |
|
Datasheet |
ALA8D | Bulk | Active | 240 µF | ±20% | 500 V | 863.2mOhm @ 100Hz | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 2.58 A @ 100 Hz | 5.52 A @ 10 kHz | 175 mOhms | - | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
ALA8DE241DC500CAP ALUM 240UF 20% 500V SNAP TH |
0 |
|
Datasheet |
ALA8D | Bulk | Active | 240 µF | ±20% | 500 V | 863.2mOhm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 2.18 A @ 100 Hz | 5.4 A @ 10 kHz | 233.4 mOhms | - | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
PEH227HLQ4710QE4CAP ALUM 7100UF 25V SOLDER LUG |
0 |
|
Datasheet |
PEH227 | Tray | Active | 7100 µF | -10%, +30% | 25 V | 24mOhm @ 100Hz | 2000 Hrs @ 150°C | -40°C ~ 150°C | Polar | AEC-Q200 | Automotive | 3.08 A @ 100 Hz | 9.152 A @ 100 kHz | - | 0.600" (15.24mm) | 0.717" Dia (18.20mm) | 1.602" (40.70mm) | - | Through Hole | |
|
|
ELH567M400AT5AACAP ALUM SNAP-IN 85C |
0 |
|
Datasheet |
ELH | Bulk | Active | 560 µF | ±20% | 400 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.7 A @ 120 Hz | 3.915 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
510DX227M050DG5OCAP ALUM 220UF 20% 50V RADIAL TH |
0 |
|
Datasheet |
510DX | Bulk | Active | 220 µF | ±20% | 50 V | 543mOhm @ 120Hz | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 597 mA @ 120 Hz | 892 mA @ 40 kHz | 218 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.906" (23.00mm) | - | Through Hole | |
|
678D477M050DS5DCAP ALUM 470UF 20% 50V RADIAL TH |
0 |
|
Datasheet |
678D | Bulk | Active | 470 µF | ±20% | 50 V | 110mOhm @ 20Hz | - | -55°C ~ 105°C | Polar | - | General Purpose | 1.085 A @ 120 Hz | 1.55 A @ 100 kHz | 39 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.791" (45.50mm) | - | Through Hole | |
|
|
ELD477M450AT6AACAP ALUM SNAP-IN 105C |
0 |
|
Datasheet |
ELD | Bulk | Active | 470 µF | ±20% | 450 V | 705mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.1 A @ 120 Hz | 2.94 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
381LX221M450K052CAP ALUM 220UF 20% 450V SNAP TH |
0 |
|
Datasheet |
381LX | Bulk | Obsolete | 220 µF | ±20% | 450 V | 1.206Ohm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 900 mA @ 120 Hz | 1.3 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|

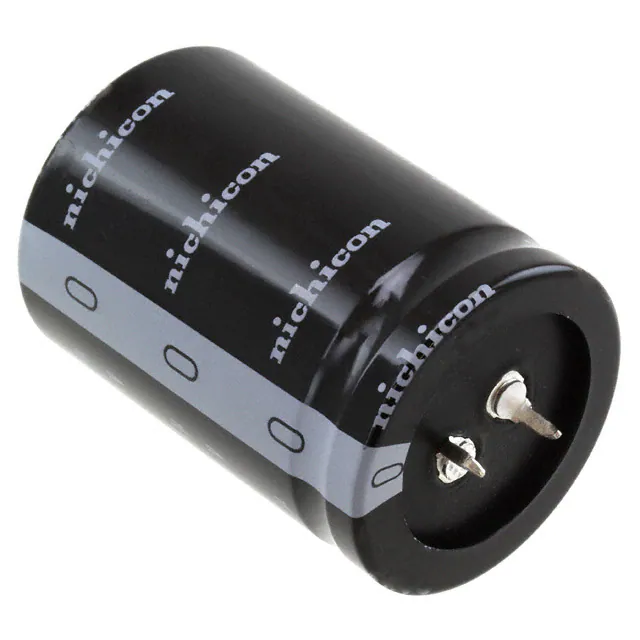

LLS2Z272MELCCAP ALUM 2700UF 20% 180V SNAP TH |
0 |
|
Datasheet |
LLS | Bulk | Active | 2700 µF | ±20% | 180 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.3 A @ 120 Hz | 7.95 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.969" (50.00mm) | - | Through Hole | |
|
|
ALA7DD331DC500CAP ALUM 330UF 20% 500V SNAP TH |
0 |
|
Datasheet |
ALA7D | Bulk | Active | 330 µF | ±20% | 500 V | 757mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 2.18 A @ 100 Hz | 5.43 A @ 10 kHz | 228 mOhms | - | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
ALA7DF331DC500CAP ALUM 330UF 20% 500V SNAP TH |
0 |
|
Datasheet |
ALA7D | Bulk | Active | 330 µF | ±20% | 500 V | 757mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 1.64 A @ 100 Hz | 4.62 A @ 10 kHz | 331 mOhms | - | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
ALA7DC331DC500CAP ALUM 330UF 20% 500V SNAP TH |
0 |
|
Datasheet |
ALA7D | Bulk | Active | 330 µF | ±20% | 500 V | 757mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 1.94 A @ 100 Hz | 3.65 A @ 10 kHz | 574 mOhms | - | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
ALA7DE331DC500CAP ALUM 330UF 20% 500V SNAP TH |
0 |
|
Datasheet |
ALA7D | Bulk | Active | 330 µF | ±20% | 500 V | 757mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 2.21 A @ 100 Hz | 4.59 A @ 10 kHz | 234.6 mOhms | - | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
180USC560MEFC25X25CAP ALUM 560UF 20% 180V SNAP TH |
0 |
|
Datasheet |
USC | Bulk | Not For New Designs | 560 µF | ±20% | 180 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.25 A @ 120 Hz | 3.375 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
420HXG220MEFC22X50CAP ALUM 220UF 20% 420V SNAP TH |
0 |
|
Datasheet |
HXG | Bulk | Active | 220 µF | ±20% | 420 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.03 A @ 120 Hz | 2.842 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
400HXG390MEFC35X35CAP ALUM 390UF 20% 400V SNAP TH |
0 |
|
Datasheet |
HXG | Bulk | Active | 390 µF | ±20% | 400 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.52 A @ 120 Hz | 3.528 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole |
