Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAL215943271E3CAP ALUM 270UF 20% 250V SNAP TH |
0 |
|
Datasheet |
159 PUL-SI | Bulk | Active | 270 µF | ±20% | 250 V | 880mOhm @ 100Hz | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.07 A @ 120 Hz | - | 560 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
MAL215953271E3CAP ALUM 270UF 20% 250V SNAP TH |
0 |
|
Datasheet |
159 PUL-SI | Bulk | Active | 270 µF | ±20% | 250 V | 880mOhm @ 100Hz | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.08 A @ 120 Hz | - | 560 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
MAL215963271E3CAP ALUM 270UF 20% 250V SNAP TH |
0 |
|
Datasheet |
159 PUL-SI | Bulk | Active | 270 µF | ±20% | 250 V | 880mOhm @ 100Hz | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.08 A @ 120 Hz | - | 560 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
MAL215972391E3CAP ALUM 390UF 20% 200V SNAP TH |
0 |
|
Datasheet |
159 PUL-SI | Bulk | Active | 390 µF | ±20% | 200 V | 610mOhm @ 100Hz | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.23 A @ 120 Hz | - | 470 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
MAL215973271E3CAP ALUM 270UF 20% 250V SNAP TH |
0 |
|
Datasheet |
159 PUL-SI | Bulk | Active | 270 µF | ±20% | 250 V | 880mOhm @ 100Hz | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.08 A @ 120 Hz | - | 560 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
MAL215983271E3CAP ALUM 270UF 20% 250V SNAP TH |
0 |
|
Datasheet |
159 PUL-SI | Bulk | Active | 270 µF | ±20% | 250 V | 880mOhm @ 100Hz | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.08 A @ 120 Hz | - | 560 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
PEH227KKP4220ME4CAP ALUM 2200UF 20% 40V SLD LUG |
0 |
|
Datasheet |
PEH227 | Tray | Active | 2200 µF | ±20% | 40 V | 47mOhm @ 100Hz | 1500 Hrs @ 150°C | -40°C ~ 150°C | Polar | AEC-Q200 | Automotive | 2.52 A @ 100 Hz | 7.488 A @ 100 kHz | - | 0.600" (15.24mm) | 0.638" Dia (16.20mm) | 1.445" (36.70mm) | - | Through Hole | |
|

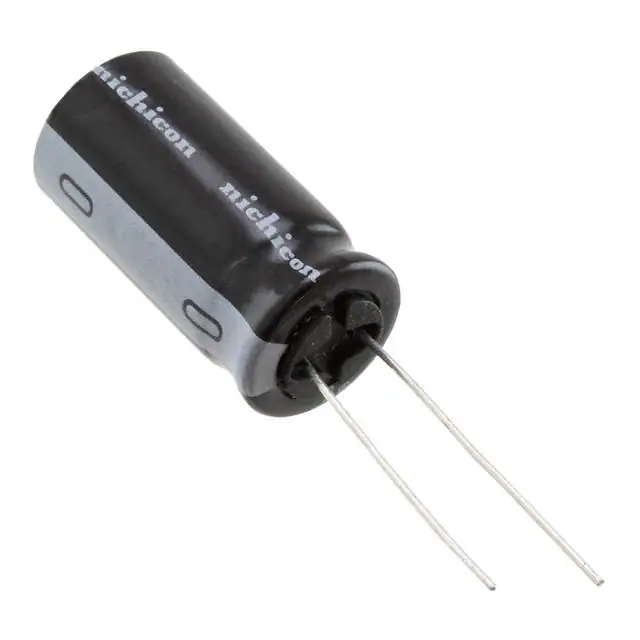

UVY2V331MRDCAP ALUM 330UF 20% 350V RADIAL |
0 |
|
Datasheet |
UVY | Bulk | Obsolete | 330 µF | ±20% | 350 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 710 mA @ 120 Hz | 816.5 mA @ 10 kHz | - | 0.492" (12.50mm) | 0.984" Dia (25.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
200HXC1000MEFCSN30X35CAP ALUM 1000UF 20% 200V SNAP TH |
0 |
|
Datasheet |
HXC | Bulk | Active | 1000 µF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 3.36 A @ 120 Hz | 5.04 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
420VXH180MEFC22X40CAP ALUM 180UF 20% 420V SNAP TH |
0 |
|
Datasheet |
VXH | Bulk | Active | 180 µF | ±20% | 420 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.26 A @ 120 Hz | 1.764 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
80VXG1200MEFC25X25CAP ALUM 1200UF 20% 80V SNAP TH |
0 |
|
Datasheet |
VXG | Bulk | Active | 1200 µF | ±20% | 80 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.32 A @ 120 Hz | 1.518 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
ALC80A362DD100CAP ALUM 3600UF 20% 100V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 3600 µF | ±20% | 100 V | 85mOhm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 5.6 A @ 100 Hz | 7.53 A @ 10 kHz | 70 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
ALC80C362DD100CAP ALUM 3600UF 20% 100V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 3600 µF | ±20% | 100 V | 85mOhm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 5.6 A @ 100 Hz | 7.53 A @ 10 kHz | 70 mOhms | 0.886" (22.50mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
ALC80D362DD100CAP ALUM 3600UF 20% 100V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 3600 µF | ±20% | 100 V | 85mOhm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 5.6 A @ 100 Hz | 7.53 A @ 10 kHz | 70 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
ALC80E362DD100CAP ALUM 3600UF 20% 100V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 3600 µF | ±20% | 100 V | 85mOhm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 5.6 A @ 100 Hz | 7.53 A @ 10 kHz | 70 mOhms | 0.886" (22.50mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
ALC80F362DD100CAP ALUM 3600UF 20% 100V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 3600 µF | ±20% | 100 V | 85mOhm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 5.6 A @ 100 Hz | 7.53 A @ 10 kHz | 70 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
500D337M050EF5ASM3CAP ALUM 330UF 20% 50V AXIAL TH |
0 |
|
Datasheet |
500D | Bulk | Active | 330 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | - | - | - | - | 0.433" Dia x 1.260" L (11.00mm x 32.00mm) | - | - | Through Hole | |
|
ALF40C822DD063CAP ALUM 8200UF 20% 63V PRESS |
0 |
|
Datasheet |
ALF40 | Bulk | Active | 8200 µF | ±20% | 63 V | 116mOhm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.87 A @ 100 Hz | 3.33 A @ 10 kHz | 99 mOhms | 0.886" (22.50mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole, Press-Fit | |
|
ELXS161VSN272MA40SCAP ALUM 2700UF 20% 160V SNAP TH |
0 |
|
Datasheet |
LXS | Bulk | Active | 2700 µF | ±20% | 160 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 4.67 A @ 120 Hz | 7.005 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.673" (42.50mm) | - | Through Hole | |
|
B43640A9477M067CAP ALUM 470UF 20% 400V SNAP TH |
0 |
|
Datasheet |
B43640 | Bulk | Active | 470 µF | ±20% | 400 V | 210mOhm @ 100Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.82 A @ 100 Hz | - | 320 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 2.047" (52.00mm) | - | Through Hole |
