Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAL209343561E3CAP ALUM 560UF 20% 250V SNAP TH |
0 |
|
Datasheet |
093 PMG-SI | Tape & Box (TB) | Active | 560 µF | ±20% | 250 V | 210mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.11 A @ 120 Hz | - | 140 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
LKS1V223MESCCAP ALUM 22000UF 20% 35V SNAP TH |
0 |
|
Datasheet |
LKS | Bulk | Obsolete | 22000 µF | ±20% | 35 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 4.4 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|

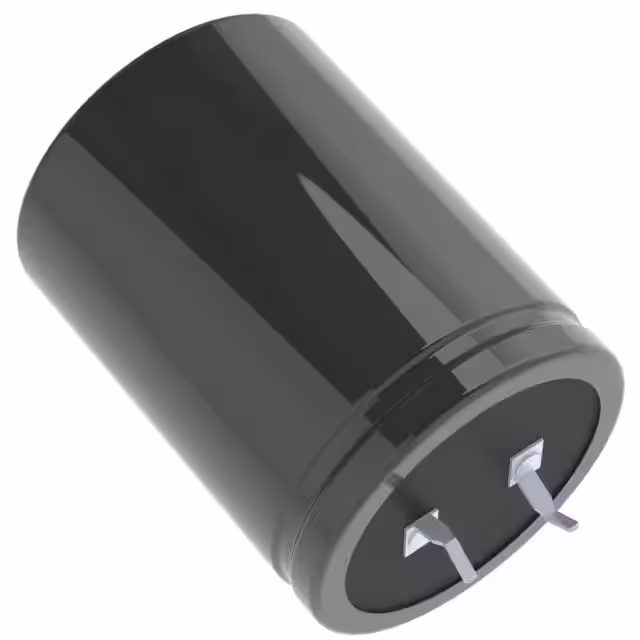

LKS1K472MESBCAP ALUM 4700UF 20% 80V SNAP TH |
0 |
|
Datasheet |
LKS | Bulk | Obsolete | 4700 µF | ±20% | 80 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 3.6 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|
LKSN2103MESCCAP ALUM 10000UF 20% 56V SNAP TH |
0 |
|
Datasheet |
LKS | Bulk | Obsolete | 10000 µF | ±20% | 56 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 4.15 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
ELXM221VSN122MA45SCAP ALUM 1200UF 20% 220V SNAP TH |
0 |
|
Datasheet |
LXM | Bulk | Active | 1200 µF | ±20% | 220 V | - | 7000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.78 A @ 120 Hz | 4.17 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
B43544A7227M060CAP ALUM SNAP |
0 |
|
Datasheet |
* | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
ALF20C123DD040CAP ALUM 12000UF 20% 40V PRESS |
0 |
|
Datasheet |
ALF20 | Bulk | Active | 12000 µF | ±20% | 40 V | 75mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.14 A @ 100 Hz | 4.5 A @ 10 kHz | 62 mOhms | 0.886" (22.50mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole, Press-Fit | |
|
EKMS161VSN272MR50SCAP ALUM 2700UF 20% 160V SNAP TH |
0 |
|
Datasheet |
KMS | Bulk | Active | 2700 µF | ±20% | 160 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 4.56 A @ 120 Hz | 6.84 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.067" (52.50mm) | - | Through Hole | |
|
ALF40C681DD250CAP ALUM 680UF 20% 250V PRESS |
0 |
|
Datasheet |
ALF40 | Bulk | Active | 680 µF | ±20% | 250 V | 245mOhm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.8 A @ 100 Hz | 2.59 A @ 10 kHz | 179 mOhms | 0.886" (22.50mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole, Press-Fit | |
|

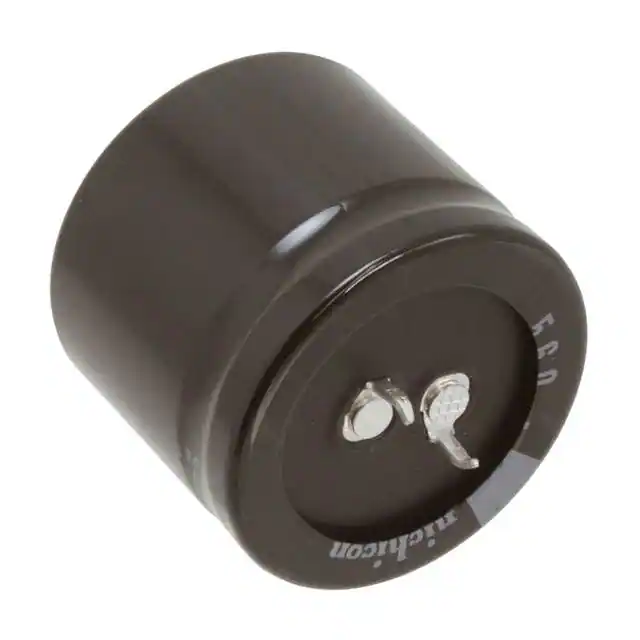

LAQ2D821MELC30CAP ALUM 820UF 20% 200V SNAP TH |
0 |
|
Datasheet |
LAQ | Bulk | Active | 820 µF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.11 A @ 120 Hz | 2.532 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
LAR2G471MELB45CAP ALUM 470UF 20% 400V SNAP TH |
0 |
|
Datasheet |
LAR | Bulk | Active | 470 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.68 A @ 120 Hz | 2.4024 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.772" (45.00mm) | - | Through Hole | |
|
MAL212514183E3CAP ALUM 18000UF 20% 10V AXIAL |
0 |
|
- |
125 ALS | Box | Active | 18000 µF | ±20% | 10 V | 41mOhm @ 100Hz | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.86 A @ 100 Hz | 2.232 A @ 10 kHz | 58 mOhms | - | 0.827" Dia x 1.496" L (21.00mm x 38.00mm) | - | - | Through Hole | |
|
MAL212515153E3CAP ALUM 15000UF 20% 16V AXIAL |
0 |
|
Datasheet |
125 ALS | Box | Active | 15000 µF | ±20% | 16 V | 41mOhm @ 100Hz | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.79 A @ 100 Hz | 2.327 A @ 10 kHz | 57 mOhms | - | 0.827" Dia x 1.496" L (21.00mm x 38.00mm) | - | - | Through Hole | |
|
|
MAL212516822E3CAP ALUM 8200UF 20% 25V AXIAL TH |
0 |
|
Datasheet |
125 ALS | Box | Active | 8200 µF | ±20% | 25 V | 46mOhm @ 100Hz | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.75 A @ 100 Hz | 2.275 A @ 10 kHz | 58 mOhms | - | 0.827" Dia x 1.496" L (21.00mm x 38.00mm) | - | - | Through Hole | |
|
|
MAL212517332E3CAP ALUM 3300UF 20% 40V AXIAL TH |
0 |
|
- |
125 ALS | Box | Active | 3300 µF | ±20% | 40 V | 64mOhm @ 100Hz | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.6 A @ 100 Hz | 2.24 A @ 10 kHz | 61 mOhms | - | 0.827" Dia x 1.496" L (21.00mm x 38.00mm) | - | - | Through Hole | |
|
B43509A9337M002CAP ALUM 330UF 20% 400V SNAP TH |
0 |
|
Datasheet |
B43509 | Bulk | Active | 330 µF | ±20% | 400 V | 240mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.6 A @ 100 Hz | - | 350 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 2.244" (57.00mm) | - | Through Hole | |
|
|
ALA8AD271DC500CAP ALUM 500V POLAR |
0 |
|
Datasheet |
ALA8A | Bulk | Active | 270 µF | ±20% | 500 V | 774mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.9 A @ 100 Hz | 4.4 A @ 10 kHz | 578 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
ALA8AF271DC500CAP ALUM 500V POLAR |
0 |
|
Datasheet |
ALA8A | Bulk | Active | 270 µF | ±20% | 500 V | 774mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.9 A @ 100 Hz | 4.4 A @ 10 kHz | 578 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
ALA8DD361DC450CAP ALUM 360UF 20% 450V SNAP TH |
0 |
|
Datasheet |
ALA8D | Bulk | Active | 360 µF | ±20% | 450 V | 386mOhm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 2.68 A @ 100 Hz | 6.06 A @ 10 kHz | 357.6 mOhms | - | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
ALA8DC361DC450CAP ALUM 360UF 20% 450V SNAP TH |
0 |
|
Datasheet |
ALA8D | Bulk | Active | 360 µF | ±20% | 450 V | 386mOhm @ 100Hz | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 2.26 A @ 100 Hz | 6.01 A @ 10 kHz | 207.2 mOhms | - | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole |
