Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

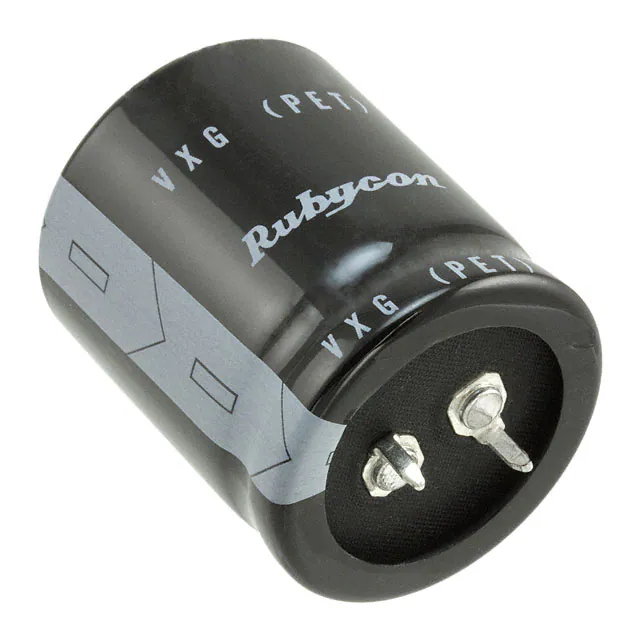

500VXG220MEFCSN30X45CAP ALUM 220UF 20% 500V SNAP TH |
0 |
|
Datasheet |
VXG | Bulk | Active | 220 µF | ±20% | 500 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.22 A @ 120 Hz | 1.708 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
B43545B5277M000CAP ALUM 270UF 20% 450V SNAP TH |
0 |
|
Datasheet |
B43545 | Tray | Active | 270 µF | ±20% | 450 V | 340mOhm @ 100Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.85 A @ 100 Hz | - | 510 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
B43544B5277M087CAP ALUM 270UF 20% 450V SNAP TH |
0 |
|
Datasheet |
B43544 | Tray | Active | 270 µF | ±20% | 450 V | 360mOhm @ 100Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.66 A @ 100 Hz | - | 560 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.661" (42.20mm) | - | Through Hole | |
|
ELG158M180AT4AACAP ALUM SNAP-IN 105C |
0 |
|
Datasheet |
ELG | Bulk | Active | 1.5 mF | ±20% | 180 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.9 A @ 120 Hz | 4.35 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
SLP681M315H7P3CAP ALUM 680UF 20% 315V SNAP TH |
0 |
|
Datasheet |
SLP0712TE (750W) | Bulk | Active | 680 µF | ±20% | 315 V | 488mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.17 A @ 120 Hz | 3.19 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
PEH534MCE4470M2CAP ALUM SNAP-IN HIGH RIPPLE |
0 |
|
Datasheet |
PEH534 | Box | Active | 4.7 mF | ±20% | 63 V | 39mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.6 A @ 100 Hz | 14 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
PEH534MDC4470M2CAP ALUM SNAP-IN HIGH RIPPLE |
0 |
|
Datasheet |
PEH534 | Box | Active | 4.7 mF | ±20% | 63 V | 44mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.1 A @ 100 Hz | 11.2 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
PEH534MDC4470M4CAP ALUM SNAP-IN HIGH RIPPLE |
0 |
|
Datasheet |
PEH534 | Box | Active | 4.7 mF | ±20% | 63 V | 44mOhm @ 100Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.1 A @ 100 Hz | 11.2 A @ 20 kHz | - | 0.886" (22.50mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
LLS2V561MELCCAP ALUM 560UF 20% 350V SNAP TH |
0 |
|
Datasheet |
LLS | Bulk | Active | 560 µF | ±20% | 350 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.75 A @ 120 Hz | 3.9325 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
LSM471M2W---3550SCAP ALUM 450V POLAR |
0 |
|
- |
LSM | Active | 470 µF | ±20% | 450 V | 423mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.85 A @ 120 Hz | 2.59 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | ||
|
MAL211847152E3CAP ALUM 1500UF 20% 40V TH |
0 |
|
Datasheet |
118 AHT | Tape & Reel (TR) | Active | 1500 µF | ±20% | 40 V | 130mOhm @ 100Hz | 8000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | Automotive | 1.39 A @ 100 Hz | - | 110 mOhms | - | 0.709" Dia (18.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
250MXC390MEFC20X45CAP ALUM 390UF 20% 250V SNAP TH |
0 |
|
Datasheet |
MXC | Bulk | Not For New Designs | 390 µF | ±20% | 250 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.35 A @ 120 Hz | 2.025 A @ 10 kHz | - | 0.394" (10.00mm) | 0.787" Dia (20.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
LAKW6331MELC45CAP ALUM 330UF 20% 420V SNAP TH |
0 |
|
Datasheet |
LAK | Bulk | Active | 330 µF | ±20% | 420 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.2 A @ 120 Hz | 1.38 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
512D476U050CD4DSR9CAP ALUM 47UF 50V RADIAL TH |
0 |
|
- |
512D | Bulk | Active | 47 µF | - | 50 V | - | - | - | - | - | General Purpose | - | - | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.669" (17.00mm) | - | Through Hole | |
|
LGG2D182MELC35CAP ALUM 1800UF 20% 200V SNAP TH |
0 |
|
Datasheet |
LGG | Bulk | Active | 1800 µF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.68 A @ 120 Hz | 4.02 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|

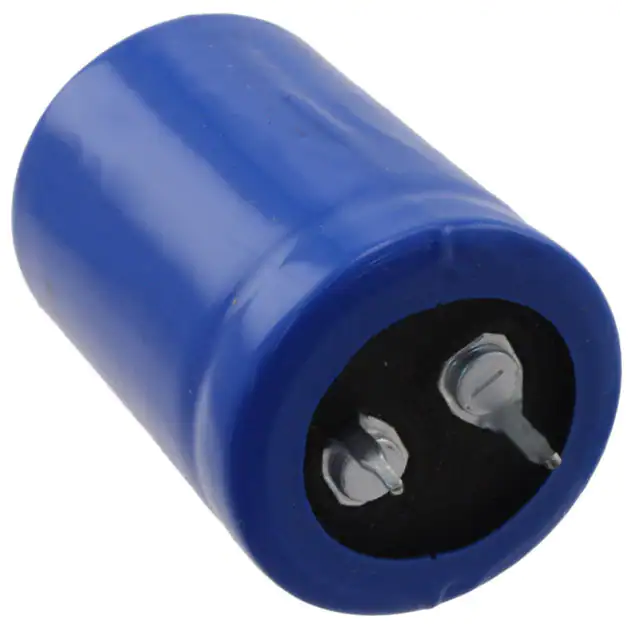

MAL215757121E3CAP ALUM 120UF 20% 450V SNAP TH |
0 |
|
Datasheet |
157 PUM-SI | Bulk | Active | 120 µF | ±20% | 450 V | 800mOhm | 5000 Hrs @ 85°C | -25°C ~ 85°C | - | - | General Purpose | - | 1.526 A @ 10 kHz | 885 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
MAL215627472E3CAP ALUM 4700UF 20% 40V SNAP TH |
0 |
|
Datasheet |
156 PUM-SI | Bulk | Active | 4700 µF | ±20% | 40 V | 68mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.32 A @ 100 Hz | - | 44 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
MAL215667472E3CAP ALUM 4700UF 20% 40V SNAP TH |
0 |
|
Datasheet |
156 PUM-SI | Bulk | Active | 4700 µF | ±20% | 40 V | 68mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.32 A @ 100 Hz | - | 44 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
MAL215727121E3CAP ALUM 120UF 20% 450V SNAP TH |
0 |
|
Datasheet |
157 PUM-SI | Bulk | Active | 120 µF | ±20% | 450 V | 1.6Ohm @ 100Hz | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.15 A @ 120 Hz | - | 885 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
MAL215747121E3CAP ALUM 120UF 20% 450V SNAP TH |
0 |
|
Datasheet |
157 PUM-SI | Bulk | Active | 120 µF | ±20% | 450 V | 1.6Ohm @ 100Hz | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.15 A @ 120 Hz | - | 885 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.654" (42.00mm) | - | Through Hole |
