Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAL205849681E3CAP ALUM 680UF 20% 100V SNAP TH |
0 |
|
Datasheet |
058 PLL-SI | Tape & Box (TB) | Active | 680 µF | ±20% | 100 V | 190mOhm @ 100Hz | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.57 A @ 100 Hz | - | 140 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
MAL205854103E3CAP ALUM 10000UF 20% 10V SNAP TH |
0 |
|
Datasheet |
058 PLL-SI | Tape & Box (TB) | Active | 10000 µF | ±20% | 10 V | 54mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.81 A @ 100 Hz | - | 42 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
MAL205855682E3CAP ALUM 6800UF 20% 16V SNAP TH |
0 |
|
Datasheet |
058 PLL-SI | Tape & Box (TB) | Active | 6800 µF | ±20% | 16 V | 56mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.75 A @ 100 Hz | - | 42 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
MAL205859681E3CAP ALUM 680UF 20% 100V SNAP TH |
0 |
|
Datasheet |
058 PLL-SI | Tape & Box (TB) | Active | 680 µF | ±20% | 100 V | 232mOhm @ 100Hz | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.35 A @ 100 Hz | - | 140 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
MAL205874103E3CAP ALUM 10000UF 20% 10V SNAP TH |
0 |
|
Datasheet |
058 PLL-SI | Tape & Box (TB) | Active | 10000 µF | ±20% | 10 V | 54mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.81 A @ 100 Hz | - | 42 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
MAL205875682E3CAP ALUM 6800UF 20% 16V SNAP TH |
0 |
|
Datasheet |
058 PLL-SI | Tape & Box (TB) | Active | 6800 µF | ±20% | 16 V | 56mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.75 A @ 100 Hz | - | 42 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
MAL205879681E3CAP ALUM 680UF 20% 100V SNAP TH |
0 |
|
Datasheet |
058 PLL-SI | Tape & Box (TB) | Active | 680 µF | ±20% | 100 V | 232mOhm @ 100Hz | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.35 A @ 100 Hz | - | 140 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|

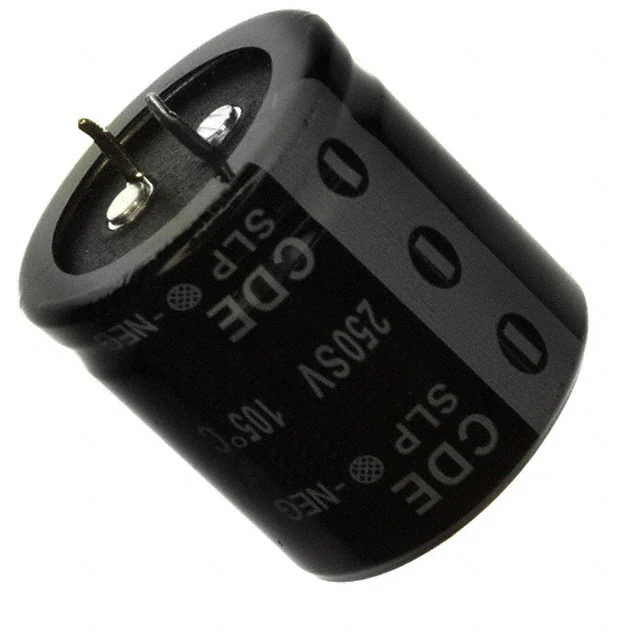

SLP391M400H5P3CAP ALUM 390UF 20% 400V SNAP TH |
0 |
|
Datasheet |
SLP0712TE (750W) | Bulk | Active | 390 µF | ±20% | 400 V | 851mOhm | 3000 Hrs @ 105°C | -25°C ~ 105°C | - | - | General Purpose | - | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.378" (35.00mm) | - | Through Hole | |
|
SLPX471M420H7P3CAP ALUM 470UF 20% 420V SNAP TH |
0 |
|
Datasheet |
SLPX | Bulk | Active | 470 µF | ±20% | 420 V | 423mOhm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.61 A @ 120 Hz | 3.84 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
ALC80C472DF100CAP ALUM 4700UF 20% 100V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 4700 µF | ±20% | 100 V | 65mOhm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 6.73 A @ 100 Hz | 9.03 A @ 10 kHz | 54 mOhms | 0.886" (22.50mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
ALC80D472DF100CAP ALUM 4700UF 20% 100V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 4700 µF | ±20% | 100 V | 65mOhm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 6.73 A @ 100 Hz | 9.03 A @ 10 kHz | 54 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
|
ALC80E472DF100CAP ALUM 4700UF 20% 100V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 4700 µF | ±20% | 100 V | 65mOhm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 6.73 A @ 100 Hz | 9.03 A @ 10 kHz | 54 mOhms | 0.886" (22.50mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
160USG2200MEFCSN30X45CAP ALUM 2200UF 20% 160V SNAP TH |
0 |
|
Datasheet |
USG | Bulk | Active | 2200 µF | ±20% | 160 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.78 A @ 120 Hz | 7.17 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
E82D501VSN391MA50UCAP ALUM SNAP-IN GEN PUR 85C |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
B41605E8398M8CAP ALUM 3900UF 20% 63V RADIAL |
0 |
|
- |
B41605 | Bulk | Active | 3900 µF | ±20% | 63 V | 20mOhm @ 100Hz | 5000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | Automotive | - | 9 A @ 10 kHz | - | 0.331" (8.40mm) | 0.984" Dia (25.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
MAL212327228CAP ALUM 2.2UF 20% 40V AXIAL TH |
0 |
|
Datasheet |
123 SAL-A | Tape & Reel (TR) | Obsolete | 2.2 µF | ±20% | 40 V | 109Ohm @ 100Hz | 20000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 11 mA @ 100 Hz | - | 7.5 Ohms | - | 0.264" Dia x 0.602" L (6.70mm x 15.30mm) | - | - | Through Hole | |
|
|
MAL212327228E3CAP ALUM 2.2UF 20% 40V AXIAL TH |
0 |
|
Datasheet |
123 SAL-A | Tape & Reel (TR) | Obsolete | 2.2 µF | ±20% | 40 V | 109Ohm @ 100Hz | 20000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 11 mA @ 100 Hz | - | 7.5 Ohms | - | 0.264" Dia x 0.602" L (6.70mm x 15.30mm) | - | - | Through Hole | |
|
381LR182M200A452CAP ALUM 1800UF 20% 200V SNAP TH |
0 |
|
Datasheet |
381LR | Bulk | Active | 1800 µF | ±20% | 200 V | 83mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.84 A @ 120 Hz | 5.48 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
B43643B9477M057CAP ALUM 400V POLAR |
0 |
|
Datasheet |
B43643 | Bulk | Active | 470 µF | ±20% | 400 V | 210mOhm @ 100Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.81 A @ 100 Hz | - | 310 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
LHM561M2P---3545SCAP ALUM 420V POLAR |
0 |
|
- |
LHM | Active | 560 µF | ±20% | 420 V | 355mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.1 A @ 120 Hz | 2.94 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole |
