Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
400VXH390MEFC25X50CAP ALUM 390UF 20% 400V SNAP TH |
0 |
|
Datasheet |
VXH | Bulk | Active | 390 µF | ±20% | 400 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.93 A @ 120 Hz | 2.702 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
|
PEG228MMS4180QE4CAP ALUM 1800UF 63V AXIAL TH |
0 |
|
Datasheet |
PEG228 | Tray | Active | 1800 µF | -10%, +30% | 63 V | 42mOhm @ 100Hz | 2000 Hrs @ 150°C | -40°C ~ 150°C | Polar | AEC-Q200 | Automotive | 2.94 A @ 100 Hz | 8.4 A @ 5 kHz | - | - | 0.795" Dia x 1.681" L (20.20mm x 42.70mm) | - | - | Through Hole | |
|
MAL212320158CAP ALUM 1.5UF 20% 35V AXIAL TH |
0 |
|
Datasheet |
123 SAL-A | Tape & Reel (TR) | Obsolete | 1.5 µF | ±20% | 35 V | 160Ohm @ 100Hz | 20000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 7 mA @ 100 Hz | - | 11 Ohms | - | 0.264" Dia x 0.602" L (6.70mm x 15.30mm) | - | - | Through Hole | |
|
|
MAL212320158E3CAP ALUM 1.5UF 20% 35V AXIAL TH |
0 |
|
Datasheet |
123 SAL-A | Tape & Reel (TR) | Obsolete | 1.5 µF | ±20% | 35 V | 160Ohm @ 100Hz | 20000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 7 mA @ 100 Hz | - | 11 Ohms | - | 0.264" Dia x 0.602" L (6.70mm x 15.30mm) | - | - | Through Hole | |
|
|
MAL212323479CAP ALUM 47UF 20% 6.3V AXIAL TH |
0 |
|
Datasheet |
123 SAL-A | Tape & Reel (TR) | Obsolete | 47 µF | ±20% | 6.3 V | 7.6Ohm @ 100Hz | 20000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 58 mA @ 100 Hz | - | 1.2 Ohms | - | 0.264" Dia x 0.602" L (6.70mm x 15.30mm) | - | - | Through Hole | |
|
|
MAL212323479E3CAP ALUM 47UF 20% 6.3V AXIAL TH |
0 |
|
Datasheet |
123 SAL-A | Tape & Reel (TR) | Obsolete | 47 µF | ±20% | 6.3 V | 7.6Ohm @ 100Hz | 20000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 58 mA @ 100 Hz | - | 1.2 Ohms | - | 0.264" Dia x 0.602" L (6.70mm x 15.30mm) | - | - | Through Hole | |
|

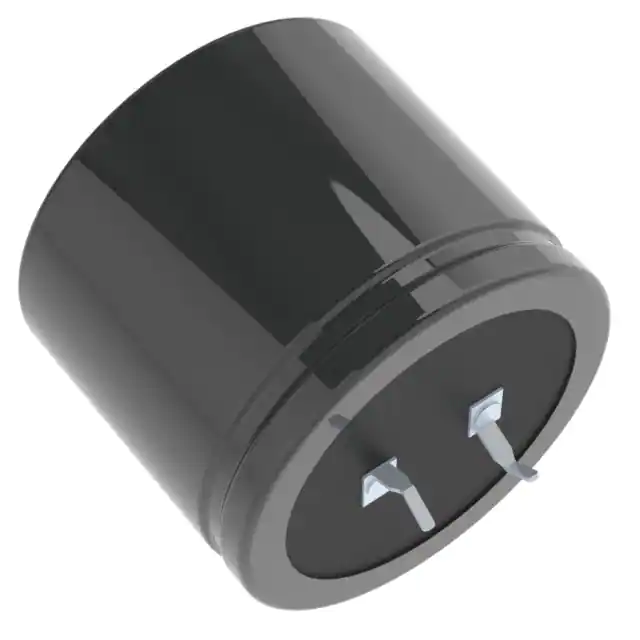

LKS1K472MESCCAP ALUM 4700UF 20% 80V SNAP TH |
0 |
|
Datasheet |
LKS | Bulk | Obsolete | 4700 µF | ±20% | 80 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 3.6 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.181" (30.00mm) | - | Through Hole | |
|
LKS1E333MESCCAP ALUM 33000UF 20% 25V SNAP TH |
0 |
|
Datasheet |
LKS | Bulk | Obsolete | 33000 µF | ±20% | 25 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 4.6 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
LKS2A332MESBCAP ALUM 3300UF 20% 100V SNAP TH |
0 |
|
Datasheet |
LKS | Bulk | Obsolete | 3300 µF | ±20% | 100 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 3.6 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
LKSA2183MESCCAP ALUM 18000UF 20% 42V SNAP TH |
0 |
|
Datasheet |
LKS | Bulk | Obsolete | 18000 µF | ±20% | 42 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 4.5 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
MAL204347689E3CAP ALUM 68UF 450V AXIAL TH |
0 |
|
Datasheet |
043 ASH | Tape & Box (TB) | Active | 68 µF | -10%, +50% | 450 V | 2.2Ohm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 550 mA @ 100 Hz | - | 1.4 Ohms | 0.886" (22.50mm) | 0.827" Dia (21.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
LASW6331MELC35CAP ALUM 330UF 20% 420V SNAP TH |
0 |
|
Datasheet |
LAS | Bulk | Active | 330 µF | ±20% | 420 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.2 A @ 120 Hz | 1.38 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
E82D451VNN561MA63UCAP ALUM SNAP-IN GEN PUR 85C |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
B43544C6227M002CAP ALUM 220UF 20% 500V SNAP TH |
0 |
|
Datasheet |
B43544 | Tray | Active | 220 µF | ±20% | 500 V | 380mOhm @ 100Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.45 A @ 100 Hz | - | 560 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
B43544C6227M007CAP ALUM 220UF 20% 500V SNAP TH |
0 |
|
Datasheet |
B43544 | Tray | Active | 220 µF | ±20% | 500 V | 380mOhm @ 100Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.5 A @ 100 Hz | - | 560 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
450VXR220MEFCSN35X40CAP ALUM 220UF 20% 450V SNAP TH |
0 |
|
Datasheet |
VXR | Bulk | Not For New Designs | 220 µF | ±20% | 450 V | - | 7000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1 A @ 120 Hz | 1.4 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
ALF20C271EC450CAP ALUM 270UF 20% 450V PRESS |
0 |
|
Datasheet |
ALF20 | Bulk | Active | 270 µF | ±20% | 450 V | 427mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.07 A @ 100 Hz | 4.22 A @ 10 kHz | 259 mOhms | 0.886" (22.50mm) | 1.575" Dia (40.00mm) | 1.457" (37.00mm) | - | Through Hole, Press-Fit | |
|
381LX392M100A052CAP ALUM 3900UF 20% 100V SNAP TH |
0 |
|
Datasheet |
381LX | Bulk | Obsolete | 3900 µF | ±20% | 100 V | 31mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.8 A @ 120 Hz | 4.4 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
|
ALF20G331EC400CAP ALUM 330UF 20% 400V PRESS |
0 |
|
Datasheet |
ALF20 | Bulk | Active | 330 µF | ±20% | 400 V | 378mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.29 A @ 100 Hz | 4.21 A @ 10 kHz | 252 mOhms | 0.984" (25.00mm) | 1.575" Dia (40.00mm) | 1.457" (37.00mm) | - | Through Hole, Press-Fit | |
|
|
350USC390MEFC25X40CAP ALUM 390UF 20% 350V SNAP TH |
0 |
|
Datasheet |
USC | Bulk | Not For New Designs | 390 µF | ±20% | 350 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.14 A @ 120 Hz | 2.996 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole |
