Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
400HXC180MEFC30X30CAP ALUM 180UF 20% 400V SNAP TH |
0 |
|
Datasheet |
HXC | Bulk | Active | 180 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.61 A @ 120 Hz | 2.254 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
B43640C2158M007CAP ALUM 1500UF 20% 200V SNAP TH |
0 |
|
- |
B43640 | Bulk | Active | 1500 µF | ±20% | 200 V | 95mOhm @ 100Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.14 A @ 100 Hz | - | 150 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
381LX561M315K052CAP ALUM 560UF 20% 315V SNAP TH |
0 |
|
Datasheet |
381LX | Bulk | Active | 560 µF | ±20% | 315 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.5 A @ 120 Hz | 2.1 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
ALC80A621DF350CAP ALUM 620UF 20% 350V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 620 µF | ±20% | 350 V | 223mOhm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.91 A @ 100 Hz | 7.42 A @ 10 kHz | 118 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
ALC80C621DF350CAP ALUM 620UF 20% 350V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 620 µF | ±20% | 350 V | 223mOhm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.91 A @ 100 Hz | 7.42 A @ 10 kHz | 118 mOhms | 0.886" (22.50mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
|
ALC80D621DF350CAP ALUM 620UF 20% 350V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 620 µF | ±20% | 350 V | 223mOhm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.91 A @ 100 Hz | 7.42 A @ 10 kHz | 118 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
|
ALC80E621DF350CAP ALUM 620UF 20% 350V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 620 µF | ±20% | 350 V | 223mOhm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.91 A @ 100 Hz | 7.42 A @ 10 kHz | 118 mOhms | 0.886" (22.50mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
ALC80F621DF350CAP ALUM 620UF 20% 350V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 620 µF | ±20% | 350 V | 223mOhm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.91 A @ 100 Hz | 7.42 A @ 10 kHz | 118 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|

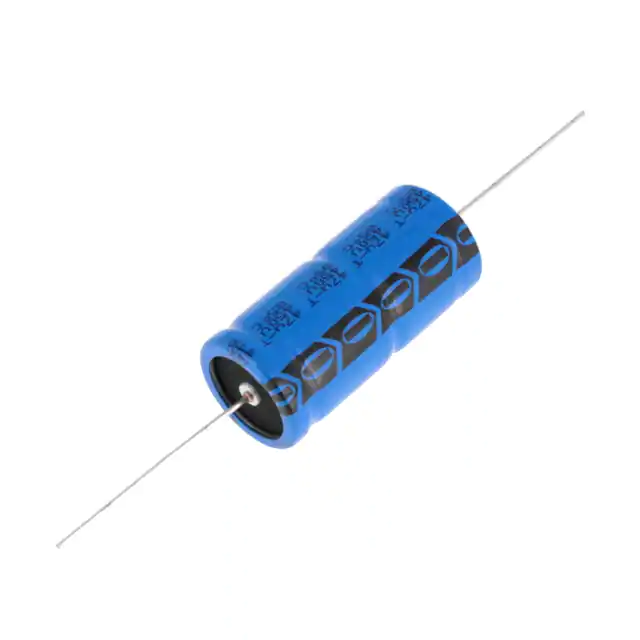

MAL204371339E3CAP ALUM 33UF 450V AXIAL TH |
0 |
|
Datasheet |
043 AHH-ELB | Tape & Box (TB) | Active | 33 µF | -10%, +50% | 450 V | 1.8Ohm @ 100Hz | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 275.4 mA @ 100 Hz | - | 1.1 Ohms | - | 0.709" Dia x 1.496" L (18.00mm x 38.00mm) | - | - | Through Hole | |
|
|
PEH534PDE4330M2CAP ALUM SNAP-IN HIGH RIPPLE |
0 |
|
Datasheet |
PEH534 | Box | Active | 3.3 mF | ±20% | 100 V | 64mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.3 A @ 100 Hz | 11.7 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
PEH534PCG4330M2CAP ALUM SNAP-IN HIGH RIPPLE |
0 |
|
Datasheet |
PEH534 | Box | Active | 3.3 mF | ±20% | 100 V | 62mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.3 A @ 100 Hz | 12.4 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
|
ALC80C271EB450CAP ALUM 270UF 20% 450V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 270 µF | ±20% | 450 V | 496mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.96 A @ 100 Hz | 4.99 A @ 10 kHz | 288 mOhms | 0.886" (22.50mm) | 1.575" Dia (40.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
ALC80D271EB450CAP ALUM 270UF 20% 450V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 270 µF | ±20% | 450 V | 496mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.96 A @ 100 Hz | 4.99 A @ 10 kHz | 288 mOhms | 0.394" (10.00mm) | 1.575" Dia (40.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
ALC80E271EB450CAP ALUM 270UF 20% 450V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 270 µF | ±20% | 450 V | 496mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.96 A @ 100 Hz | 4.99 A @ 10 kHz | 288 mOhms | 0.886" (22.50mm) | 1.575" Dia (40.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
ALC80F271EB450CAP ALUM 270UF 20% 450V SNAP TH |
0 |
|
Datasheet |
ALC80 | Bulk | Active | 270 µF | ±20% | 450 V | 496mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.96 A @ 100 Hz | 4.99 A @ 10 kHz | 288 mOhms | 0.394" (10.00mm) | 1.575" Dia (40.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
MAL205824103E3CAP ALUM 10000UF 20% 10V SNAP TH |
0 |
|
Datasheet |
058 PLL-SI | Tape & Box (TB) | Active | 10000 µF | ±20% | 10 V | 43mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.29 A @ 100 Hz | - | 32 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
MAL205825682E3CAP ALUM 6800UF 20% 16V SNAP TH |
0 |
|
Datasheet |
058 PLL-SI | Tape & Box (TB) | Active | 6800 µF | ±20% | 16 V | 46mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.18 A @ 100 Hz | - | 32 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
MAL205829681E3CAP ALUM 680UF 20% 100V SNAP TH |
0 |
|
Datasheet |
058 PLL-SI | Tape & Box (TB) | Active | 680 µF | ±20% | 100 V | 190mOhm @ 100Hz | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.57 A @ 100 Hz | - | 140 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
MAL205844103E3CAP ALUM 10000UF 20% 10V SNAP TH |
0 |
|
Datasheet |
058 PLL-SI | Tape & Box (TB) | Active | 10000 µF | ±20% | 10 V | 43mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.29 A @ 100 Hz | - | 32 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
MAL205845682E3CAP ALUM 6800UF 20% 16V SNAP TH |
0 |
|
Datasheet |
058 PLL-SI | Tape & Box (TB) | Active | 6800 µF | ±20% | 16 V | 46mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.18 A @ 100 Hz | - | 32 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.654" (42.00mm) | - | Through Hole |
