Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GS2W471MW43045ACAP ALUM 470UF 20% 450V SNAP TH |
0 |
|
Datasheet |
GS | Active | 470 µF | ±20% | 450 V | 500mOhm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.62 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | ||
|

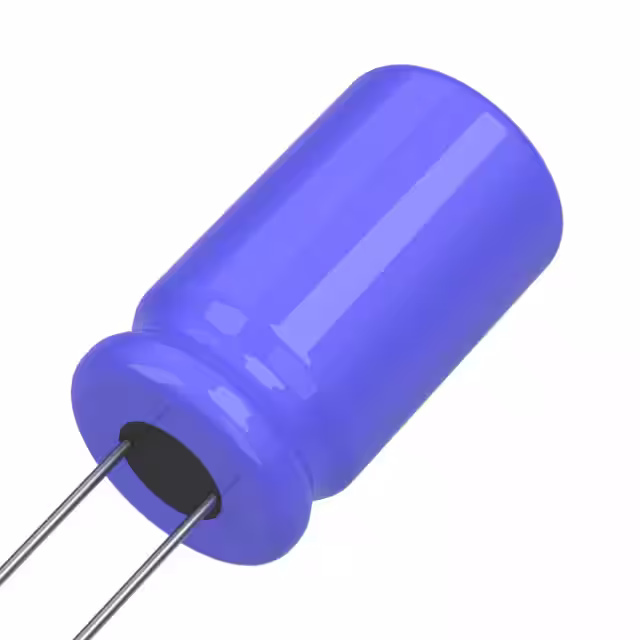

678D107M063DG3DE3CAP ALUM 100UF 20% 63V RADIAL TH |
0 |
|
Datasheet |
678D | Bulk | Active | 100 µF | ±20% | 63 V | 450mOhm @ 20Hz | - | -55°C ~ 105°C | Polar | - | General Purpose | 504 mA @ 120 Hz | 720 mA @ 100 kHz | 90 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.906" (23.00mm) | - | Through Hole | |
|
672D108F012DS4DCAP ALUM 1000UF 12V RADIAL TH |
0 |
|
Datasheet |
672D | Bulk | Active | 1000 µF | -10%, +50% | 12 V | 150mOhm @ 120Hz | - | -55°C ~ 105°C | Polar | - | General Purpose | 1.645 A @ 120 Hz | 235 mA @ 100 kHz | 60 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.720" (43.70mm) | - | Through Hole | |
|
672D127F060DS3JCAP ALUM 120UF 60V RADIAL TH |
0 |
|
Datasheet |
672D | Bulk | Active | 120 µF | -10%, +50% | 60 V | - | - | -55°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.791" (45.50mm) | - | Through Hole | |
|
672D477F020EK4DCAP ALUM 470UF 20V RADIAL TH |
0 |
|
Datasheet |
672D | Bulk | Active | 470 µF | -10%, +50% | 20 V | 240mOhm @ 120Hz | - | -55°C ~ 105°C | Polar | - | General Purpose | 1.4 A @ 120 Hz | 2 A @ 100 kHz | 85 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.032" (26.20mm) | - | Through Hole | |
|
|
672D477F025DS4DCAP ALUM 470UF 25V RADIAL TH |
0 |
|
Datasheet |
672D | Bulk | Active | 470 µF | -10%, +50% | 25 V | 220mOhm @ 120Hz | - | -55°C ~ 105°C | Polar | - | General Purpose | 1.645 A @ 120 Hz | 2.35 A @ 100 kHz | 70 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.720" (43.70mm) | - | Through Hole | |
|
|
672D826F050EK4DCAP ALUM 82UF 50V RADIAL TH |
0 |
|
Datasheet |
672D | Bulk | Active | 82 µF | -10%, +50% | 50 V | - | - | -55°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.032" (26.20mm) | - | Through Hole | |
|
757D108M035DT3DCAP ALUM 1000UF 20% 35V RADIAL |
0 |
|
Datasheet |
757D | Bulk | Active | 1000 µF | ±20% | 35 V | 90mOhm @ 120Hz | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.8 A @ 120 Hz | 2.98 A @ 40 kHz | 26 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.417" (36.00mm) | - | Through Hole | |
|
|
757D158M025DT3DCAP ALUM 1500UF 20% 25V RADIAL |
0 |
|
Datasheet |
757D | Bulk | Active | 1500 µF | ±20% | 25 V | 73mOhm @ 120Hz | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.99 A @ 120 Hz | 2.98 A @ 40 kHz | 26 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.417" (36.00mm) | - | Through Hole | |
|
MAL211917152E3CAP ALUM 1500UF 40V AXIAL TH |
0 |
|
Datasheet |
119 AHT-DIN | Tape & Reel (TR) | Active | 1500 µF | -10%, +50% | 40 V | 150mOhm @ 100Hz | 8000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 1.41 A @ 100 Hz | - | 120 mOhms | - | 0.827" Dia x 1.496" L (21.00mm x 38.00mm) | - | - | Through Hole | |
|
MAL212325159CAP ALUM 15UF 20% 16V AXIAL TH |
0 |
|
Datasheet |
123 SAL-A | Tape & Reel (TR) | Obsolete | 15 µF | ±20% | 16 V | 19Ohm @ 100Hz | 20000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 47 mA @ 100 Hz | - | 2.5 Ohms | - | 0.264" Dia x 0.602" L (6.70mm x 15.30mm) | - | - | Through Hole | |
|
|
MAL212325159E3CAP ALUM 15UF 20% 16V AXIAL TH |
0 |
|
Datasheet |
123 SAL-A | Tape & Reel (TR) | Obsolete | 15 µF | ±20% | 16 V | 19Ohm @ 100Hz | 20000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 47 mA @ 100 Hz | - | 2.5 Ohms | - | 0.264" Dia x 0.602" L (6.70mm x 15.30mm) | - | - | Through Hole | |
|
|
315VXR120MEFC22X30CAP ALUM 120UF 20% 315V SNAP TH |
0 |
|
Datasheet |
VXR | Bulk | Not For New Designs | 120 µF | ±20% | 315 V | - | 7000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 750 mA @ 120 Hz | 1.05 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
350MXC180MEFC20X45CAP ALUM 180UF 20% 350V SNAP TH |
0 |
|
Datasheet |
MXC | Bulk | Not For New Designs | 180 µF | ±20% | 350 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 880 mA @ 120 Hz | 1.232 A @ 10 kHz | - | 0.394" (10.00mm) | 0.787" Dia (20.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
672D476H100DS5CCAP ALUM 47UF 100V RADIAL TH |
0 |
|
Datasheet |
672D | Bulk | Active | 47 µF | - | 100 V | - | - | -55°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.791" (45.50mm) | - | Through Hole | |
|
ALA8DA471DD400CAP ALUM 470UF 20% 400V SNAP TH |
0 |
|
Datasheet |
ALA8D | Bulk | Active | 470 µF | ±20% | 400 V | 327mOhm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 3.06 A @ 100 Hz | 6.49 A @ 10 kHz | 135.4 mOhms | - | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
ALA7DD471DD450CAP ALUM 470UF 20% 450V SNAP TH |
0 |
|
Datasheet |
ALA7D | Bulk | Active | 470 µF | ±20% | 450 V | 327mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 2.19 A @ 100 Hz | 4.76 A @ 10 kHz | 211.6 mOhms | - | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
ALA8DD471DD400CAP ALUM 470UF 20% 400V SNAP TH |
0 |
|
Datasheet |
ALA8D | Bulk | Active | 470 µF | ±20% | 400 V | 327mOhm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 3.06 A @ 100 Hz | 6.49 A @ 10 kHz | 135.4 mOhms | - | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
ALA7DF471DD450CAP ALUM 470UF 20% 450V SNAP TH |
0 |
|
Datasheet |
ALA7D | Bulk | Active | 470 µF | ±20% | 450 V | 327mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 2.78 A @ 100 Hz | 6.81 A @ 10 kHz | 163 mOhms | - | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
ALA8DF471DD400CAP ALUM 470UF 20% 400V SNAP TH |
0 |
|
Datasheet |
ALA8D | Bulk | Active | 470 µF | ±20% | 400 V | 327mOhm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 2.98 A @ 100 Hz | 7.41 A @ 10 kHz | 146.4 mOhms | - | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole |
