Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
600F510JT250XT4KCAP CER 51PF 250V C0G/NP0 0805 |
9,052 |
|
Datasheet |
ATC 600F | Tape & Reel (TR) | Active | 51 pF | ±5% | 250V | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Ultra Low ESR | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.01mm x 1.24mm) | - | 0.051" (1.30mm) | - | - |
|
|
KGM31TCG1E682FUCAP CER 6800PF 25V C0G/NP0 1206 |
8,234 |
|
Datasheet |
KGM - C0G | Tape & Reel (TR) | Active | 6800 pF | ±1% | 25V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.053" (1.35mm) | - | - |
|
|
C0402C470F5GACAUTOCAP CER 47PF 50V C0G/NP0 0402 |
7,333 |
|
Datasheet |
SMD Auto C0G | Tape & Reel (TR) | Active | 47 pF | ±1% | 50V | C0G, NP0 | -55°C ~ 125°C | Low ESL | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.022" (0.55mm) | - | - |
-0,94mm-J-Code.jpg)
|
12067A221GAT2ACAP CER 220PF 500V C0G/NP0 1206 |
6,975 |
|
Datasheet |
KGM - C0G | Tape & Reel (TR) | Active | 220 pF | ±2% | 500V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.037" (0.94mm) | - | - |
-2,54.jpg)
|
1825HA221KAT1ACAP CER 220PF 3KV C0G/NP0 1825 |
6,033 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 220 pF | ±10% | 3000V (3kV) | C0G, NP0 | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1825 (4564 Metric) | 0.177" L x 0.252" W (4.50mm x 6.40mm) | - | 0.087" (2.20mm) | - | - |
-2,03mm.jpg)
|
1808HC102KAZ1ACAP CER 1000PF 3KV X7R 1808 |
5,618 |
|
Datasheet |
FLEXITERM® | Tape & Reel (TR) | Active | 1000 pF | ±10% | 3000V (3kV) | X7R | -55°C ~ 125°C | Soft Termination, High Voltage | - | SMPS Filtering, Boardflex Sensitive | - | Surface Mount, MLCC | 1808 (4520 Metric) | 0.181" L x 0.079" W (4.60mm x 2.00mm) | - | 0.087" (2.20mm) | - | - |
|
|
1808SC222KAT1ACAP CER 2200PF 1.5KV X7R 1808 |
5,348 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 2200 pF | ±10% | 1500V (1.5kV) | X7R | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1808 (4520 Metric) | 0.181" L x 0.079" W (4.60mm x 2.00mm) | - | 0.087" (2.20mm) | - | - |
|
SR305E105MAACAP CER 1UF 50V Z5U RADIAL |
5,140 |
|
Datasheet |
SkyCap® SR | Bulk | Active | 1 µF | ±20% | 50V | Z5U | 10°C ~ 85°C | - | - | General Purpose | - | Through Hole | Radial | 0.300" L x 0.125" W (7.62mm x 3.18mm) | 0.300" (7.62mm) | - | 0.200" (5.08mm) | Straight |
-3,20x2,50x2,80mm.jpg)
|
C1210C102KBRAC7800CAP CER 1000PF 630V X7R 1210 |
5,054 |
|
Datasheet |
SMD Comm X7R HV | Tape & Reel (TR) | Active | 1000 pF | ±10% | 630V | X7R | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.075" (1.90mm) | - | - |
|
|
C1210C222KDRACTUCAP CER 2200PF 1KV X7R 1210 |
4,978 |
|
Datasheet |
SMD Comm X7R HV | Tape & Reel (TR) | Active | 2200 pF | ±10% | 1000V (1kV) | X7R | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.061" (1.55mm) | - | - |
|
|
C1210C105K5NAC7800CAP CER 1UF 50V X8L 1210 |
4,201 |
|
Datasheet |
SMD Comm X8L HT150C | Tape & Reel (TR) | Active | 1 µF | ±10% | 50V | X8L | -55°C ~ 150°C | High Temperature | - | General Purpose | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.075" (1.90mm) | - | - |
|
|
1206ZD475JAT2ACAP CER 4.7UF 10V X5R 1206 |
3,688 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 4.7 µF | ±5% | 10V | X5R | -55°C ~ 85°C | - | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.037" (0.94mm) | - | - |
-2,70mm.jpg)
|
JMK325AC6107MMHPCAP CER 100UF 6.3V X6S 1210 |
2,693 |
|
Datasheet |
M | Tape & Reel (TR) | Active | 100 µF | ±20% | 6.3V | X6S | -55°C ~ 105°C | - | - | SMPS Filtering | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.110" (2.80mm) | - | - |
|
|
C1210C472KBRACTUCAP CER 4700PF 630V X7R 1210 |
1,994 |
|
Datasheet |
SMD Comm X7R HV | Tape & Reel (TR) | Active | 4700 pF | ±10% | 630V | X7R | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.061" (1.55mm) | - | - |
-0,76mm.jpg)
|

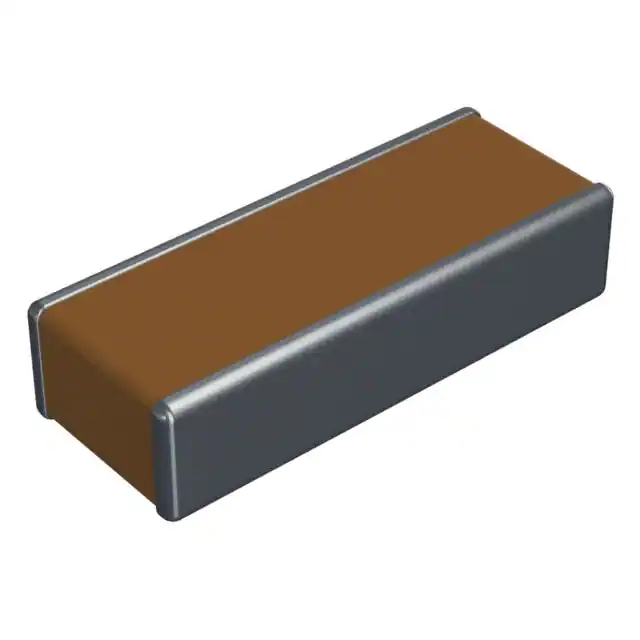

0612ZC105MAT2VCAP CER 1UF 10V X7R 0612 |
1,906 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 1 µF | ±20% | 10V | X7R | -55°C ~ 125°C | Low ESL (Reverse Geometry) | - | Bypass, Decoupling | - | Surface Mount, MLCC | 0612 (1632 Metric) | 0.063" L x 0.126" W (1.60mm x 3.20mm) | - | 0.030" (0.76mm) | - | - |
|
|
1808SC222KAT2ACAP CER 2200PF 1.5KV X7R 1808 |
1,573 |
|
Datasheet |
KGM - HV | Tape & Reel (TR) | Active | 2200 pF | ±10% | 1500V (1.5kV) | X7R | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1808 (4520 Metric) | 0.181" L x 0.079" W (4.60mm x 2.00mm) | - | 0.087" (2.21mm) | - | - |
|

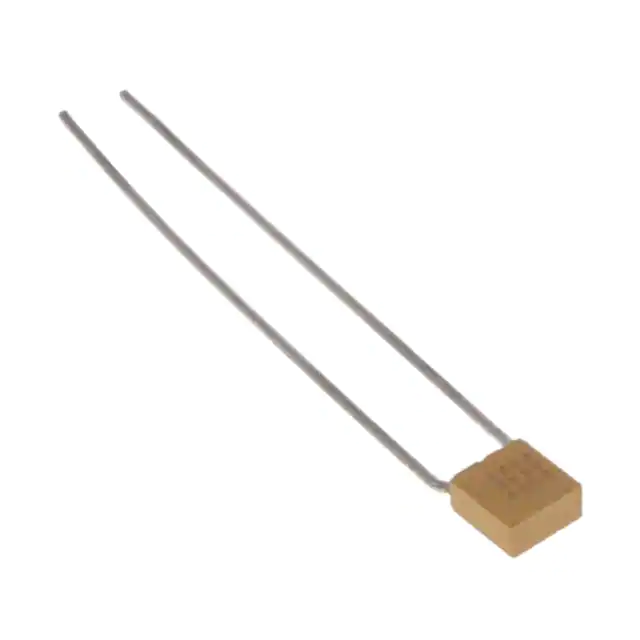

CK05BX271KCAP CER 270PF 200V BX RADIAL |
1,127 |
|
Datasheet |
Military, MIL-C-11015, CK05 | Bulk | Active | 270 pF | ±10% | 200V | BX | -55°C ~ 125°C | - | - | High Reliability | - | Through Hole | Radial | 0.190" L x 0.090" W (4.83mm x 2.29mm) | 0.200" (5.08mm) | 0.090" (2.29mm) | 0.200" (5.08mm) | Formed Leads |
|
C410C101F1G5TACAP CER 100PF 100V C0G/NP0 AXIAL |
565 |
|
Datasheet |
AxiMax 400 Comm C0G | Bulk | Active | 100 pF | ±1% | 100V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Through Hole | Axial | 0.095" Dia x 0.170" L (2.41mm x 4.32mm) | - | - | - | Straight |
|
|
1808HC681KAT2ACAP CER 680PF 3KV X7R 1808 |
142 |
|
Datasheet |
KGM - HV | Tape & Reel (TR) | Active | 680 pF | ±10% | 3000V (3kV) | X7R | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1808 (4520 Metric) | 0.181" L x 0.079" W (4.60mm x 2.00mm) | - | 0.087" (2.21mm) | - | - |
|
|
SR305A103JAACAP CER 10000PF 50V NP0 RADIAL |
132 |
|
Datasheet |
SkyCap® SR | Bulk | Active | 10000 pF | ±5% | 50V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.300" L x 0.125" W (7.62mm x 3.18mm) | 0.300" (7.62mm) | - | 0.200" (5.08mm) | Straight |
