Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C1210X102KDRACTUCAP CER 1000PF 1KV X7R 1210 |
4,994 |
|
Datasheet |
SMD Comm X7R HV Flex | Tape & Reel (TR) | Active | 1000 pF | ±10% | 1000V (1kV) | X7R | -55°C ~ 125°C | Low ESL, Soft Termination, High Voltage | - | Boardflex Sensitive | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.130" L x 0.102" W (3.30mm x 2.60mm) | - | 0.061" (1.55mm) | - | - |
|
|
C1210C472KDRACTUCAP CER 4700PF 1KV X7R 1210 |
4,016 |
|
Datasheet |
SMD Comm X7R HV | Tape & Reel (TR) | Active | 4700 pF | ±10% | 1000V (1kV) | X7R | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.061" (1.55mm) | - | - |
 15.jpg)
|
GA342QR7GD221KW01LCAP CER 220PF 250VAC X7R 1808 |
3,416 |
|
Datasheet |
GA3 | Tape & Reel (TR) | Active | 220 pF | ±10% | 250VAC | X7R | -55°C ~ 125°C | - | Y3 | Safety | - | Surface Mount, MLCC | 1808 (4520 Metric) | 0.177" L x 0.079" W (4.50mm x 2.00mm) | - | 0.059" (1.50mm) | - | - |
.jpg)
|
600S750JT250XTCAP CER 75PF 250V NP0 0603 |
3,048 |
|
Datasheet |
ATC 600S | Tape & Reel (TR) | Active | 75 pF | ±5% | 250V | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Ultra Low ESR | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.032" W (1.60mm x 0.81mm) | - | 0.035" (0.89mm) | - | - |
-3,20x2,50x2,80mm.jpg)
|
C1210C103JBGACAUTOCOMSMDHIVOLTAGE.010UF 630V |
2,641 |
|
Datasheet |
SMD Auto C0G HV | Tape & Reel (TR) | Active | 10000 pF | ±5% | 630V | C0G, NP0 | -55°C ~ 125°C | Low ESL, High Voltage | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.055" (1.40mm) | - | - |
-2,80mm.jpg)
|
1812HC102MAZ1ACAP CER 1000PF 3KV X7R 1812 |
2,185 |
|
Datasheet |
FLEXITERM® | Tape & Reel (TR) | Active | 1000 pF | ±20% | 3000V (3kV) | X7R | -55°C ~ 125°C | Soft Termination, High Voltage | - | SMPS Filtering, Boardflex Sensitive | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.087" (2.20mm) | - | - |
|

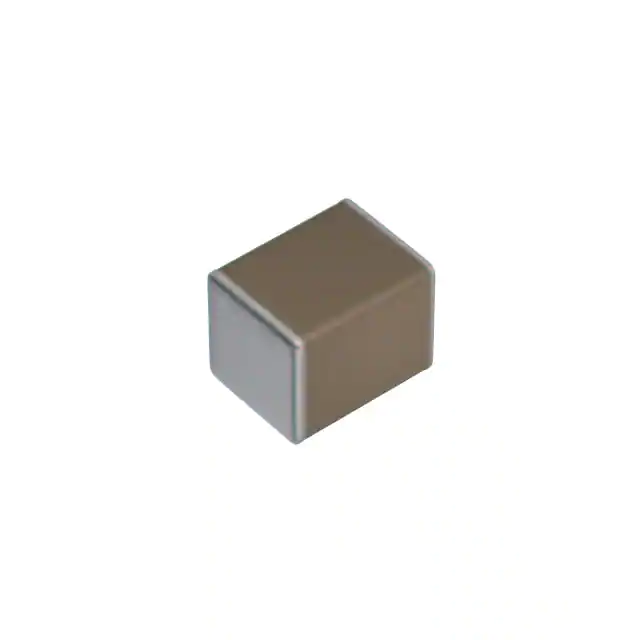

CGA6M1C0G3A122J200ACCAP CER 1200PF 1KV C0G/NP0 1210 |
2,125 |
|
Datasheet |
CGA | Tape & Reel (TR) | Active | 1200 pF | ±5% | 1000V (1kV) | C0G, NP0 | -55°C ~ 125°C | High Voltage | AEC-Q200 | Automotive, SMPS Filtering | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.087" (2.20mm) | - | - |
|
|
C1812C474K5JACTUCAP CER 0.47UF 50V U2J 1812 |
1,672 |
|
Datasheet |
SMD Comm U2J | Tape & Reel (TR) | Active | 0.47 µF | ±10% | 50V | U2J | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.075" (1.90mm) | - | - |
|
|
C1210C105K5NACAUTOCAP CER 1UF 50V X8L 1210 |
1,085 |
|
Datasheet |
SMD Auto X8L HT150C | Tape & Reel (TR) | Active | 1 µF | ±10% | 50V | X8L | -55°C ~ 150°C | High Temperature | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.075" (1.90mm) | - | - |
|
|
600S390JT250XT4KCAP CER 39PF 250V C0G/NP0 0603 |
7,255 |
|
Datasheet |
ATC 600S | Tape & Reel (TR) | Active | 39 pF | ±5% | 250V | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Ultra Low ESR | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.032" W (1.60mm x 0.81mm) | - | 0.035" (0.89mm) | - | - |
|
562R5GAT20CAP CER 200PF 1KV X5F RADIAL |
4,615 |
|
Datasheet |
Cera-Mite 562R | Bulk | Active | 200 pF | ±10% | 1000V (1kV) | X5F | -55°C ~ 105°C | - | - | General Purpose | - | Through Hole | Radial, Disc | 0.252" Dia (6.40mm) | 0.377" (9.58mm) | - | 0.252" (6.40mm) | Straight |
-2,30mm.jpg)
|
GRM43DR72E334KW01KCAP CER 0.33UF 250V X7R 1812 |
4,261 |
|
Datasheet |
GRM | Tape & Reel (TR) | Active | 0.33 µF | ±10% | 250V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.079" (2.00mm) | - | - |
|
|
562R5GAT47CAP CER 470PF 1KV X5F RADIAL |
3,950 |
|
Datasheet |
Cera-Mite 562R | Bulk | Active | 470 pF | ±20% | 1000V (1kV) | X5F | -55°C ~ 105°C | - | - | General Purpose | - | Through Hole | Radial, Disc | 0.252" Dia (6.40mm) | 0.377" (9.58mm) | - | 0.252" (6.40mm) | Straight |
|
|
GRM32D5C3A562JWA1KCAP CER 5600PF 1KV C0G/NP0 1210 |
3,670 |
|
Datasheet |
GRM | Tape & Reel (TR) | Active | 5600 pF | ±5% | 1000V (1kV) | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.079" (2.00mm) | - | - |
|
08055C105KAZ2ACAP CER 1UF 50V X7R 0805 |
3,062 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 1 µF | ±10% | 50V | X7R | -55°C ~ 125°C | Soft Termination | - | Boardflex Sensitive | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.01mm x 1.25mm) | - | 0.055" (1.40mm) | - | - |
|
|
600L2R7BW200T4KCAP CER 2.7PF 200V NP0 0402 |
2,771 |
|
Datasheet |
ATC 600L | Tape & Reel (TR) | Active | 2.7 pF | ±0.1pF | 200V | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Ultra Low ESR | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.040" L x 0.020" W (1.02mm x 0.51mm) | - | 0.024" (0.60mm) | - | - |
|
|
562R10TST12CAP CER 120PF 1KV X5F RADIAL |
2,624 |
|
Datasheet |
Cera-Mite 562R | Bulk | Active | 120 pF | ±10% | 1000V (1kV) | X5F | -55°C ~ 105°C | - | - | General Purpose | - | Through Hole | Radial, Disc | 0.252" Dia (6.40mm) | 0.377" (9.58mm) | - | 0.252" (6.40mm) | Straight |
|

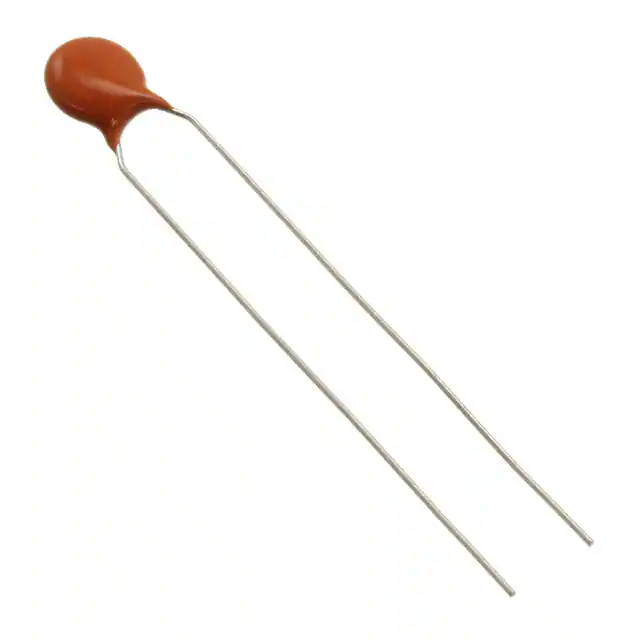

562R5GAD20CAP CER 2000PF 1KV Z5U RADIAL |
2,467 |
|
Datasheet |
Cera-Mite 562R | Bulk | Active | 2000 pF | ±20% | 1000V (1kV) | Z5U | -55°C ~ 105°C | - | - | General Purpose | - | Through Hole | Radial, Disc | 0.291" Dia (7.40mm) | 0.417" (10.58mm) | - | 0.252" (6.40mm) | Straight |
|
|
C1210C475K4RACTUCAP CER 4.7UF 16V X7R 1210 |
2,166 |
|
Datasheet |
SMD Comm X7R | Tape & Reel (TR) | Active | 4.7 µF | ±10% | 16V | X7R | -55°C ~ 125°C | - | - | Bypass, Decoupling | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.039" (1.00mm) | - | - |
|
|
GRM32D5C3A472JWA1LCAP CER 4700PF 1KV C0G/NP0 1210 |
1,974 |
|
Datasheet |
GRM | Tape & Reel (TR) | Active | 4700 pF | ±5% | 1000V (1kV) | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.079" (2.00mm) | - | - |
