Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C1812C562J5GACTUCAP CER 5600PF 50V C0G/NP0 1812 |
830 |
|
Datasheet |
SMD Comm C0G | Tape & Reel (TR) | Active | 5600 pF | ±5% | 50V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.043" (1.10mm) | - | - |
|
C315C102F1G5TACAP CER 1000PF 100V NP0 RADIAL |
390 |
|
Datasheet |
GoldMax 300 Comm C0G | Bulk | Active | 1000 pF | ±1% | 100V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Through Hole | Radial | 0.150" L x 0.100" W (3.81mm x 2.54mm) | 0.183" (4.66mm) | - | 0.100" (2.54mm) | Straight |
|
|
GCM32E5C3A223JX0AKCAP CER 0.022UF 1KV C0G/NP0 1210 |
338 |
|
Datasheet |
GCM | Tape & Reel (TR) | Active | 0.022 µF | ±5% | 1000V (1kV) | C0G, NP0 | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.112" (2.85mm) | - | - |
-2,79mm-Z-Code.jpg)
|
1210YC226KAT4ACAP CER 22UF 16V X7R 1210 |
10,380 |
|
Datasheet |
KGM - X7R | Tape & Reel (TR) | Active | 22 µF | ±10% | 16V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.130" L x 0.098" W (3.30mm x 2.50mm) | - | 0.110" (2.80mm) | - | - |
|

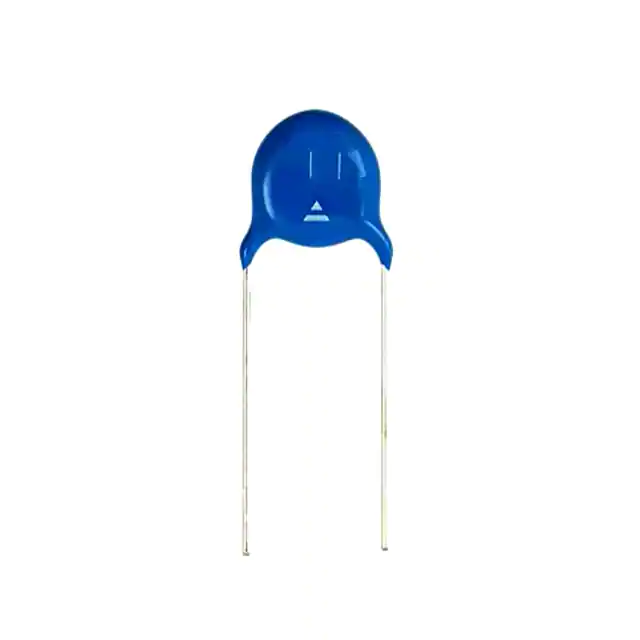

WKP222MCPEJ0KRCAP CER 2200PF 760VAC Y5U RADIAL |
6,638 |
|
Datasheet |
WKP | Bulk | Active | 2200 pF | ±20% | 760VAC | Y5U (E) | -40°C ~ 125°C | - | X1, Y1 | Safety | - | Through Hole | Radial, Disc | 0.512" Dia (13.00mm) | 0.630" (16.00mm) | - | 0.492" (12.50mm) | Straight |
|
|
C1210C226M8PACTUCAP CER 22UF 10V X5R 1210 |
2,638 |
|
Datasheet |
SMD Comm X5R | Tape & Reel (TR) | Active | 22 µF | ±20% | 10V | X5R | -55°C ~ 85°C | - | - | Bypass, Decoupling | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.110" (2.80mm) | - | - |
|
|
12101C105JAT2ACAP CER 1UF 100V X7R 1210 |
1,827 |
|
Datasheet |
KGM - X7R | Tape & Reel (TR) | Active | 1 µF | ±5% | 100V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.130" L x 0.098" W (3.30mm x 2.50mm) | - | 0.110" (2.80mm) | - | - |
-2,80mm.jpg)
|
18125C334JAT2ACAP CER 0.33UF 50V X7R 1812 |
1,430 |
|
Datasheet |
KGM - X7R | Tape & Reel (TR) | Active | 0.33 µF | ±5% | 50V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.055" (1.40mm) | - | - |
|
C1812W104KCRACAUTOCAP CER 0.1UF 500V X7R 1812 |
1,046 |
|
Datasheet |
ArcShield SMD Auto X7R HV | Tape & Reel (TR) | Active | 0.1 µF | ±10% | 500V | X7R | -55°C ~ 125°C | Low ESL, Soft Termination, High Voltage, ArcShield™ | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.043" (1.10mm) | - | - |
|
|
VPDP102G470K1GV001ECAP CER 47PF 1KV C0G/NP0 1808 |
9,710 |
|
Datasheet |
HVS-PME | Tape & Reel (TR) | Active | 47 pF | ±10% | 1000V (1kV) | C0G, NP0 | -55°C ~ 125°C | High Voltage | - | SMPS Filtering | - | Surface Mount, MLCC | 1808 (4520 Metric) | 0.185" L x 0.080" W (4.70mm x 2.03mm) | - | 0.085" (2.16mm) | - | - |
-2,70mm-C-Series.jpg)
|
C5750X7R2A105K230KMCAP CER 1UF 100V X7R 2220 |
3,101 |
|
Datasheet |
C | Tape & Reel (TR) | Not For New Designs | 1 µF | ±10% | 100V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.098" (2.50mm) | - | - |
|
VJ1812Y334KXBATCAP CER 0.33UF 100V X7R 1812 |
2,979 |
|
Datasheet |
VJ | Tape & Reel (TR) | Active | 0.33 µF | ±10% | 100V | X7R | -55°C ~ 150°C | - | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.086" (2.18mm) | - | - |
|
C330C474K1R5TA7303CAP CER 0.47UF 100V X7R RADIAL |
2,843 |
|
Datasheet |
GoldMax 300 Comm X7R | Tape & Reel (TR) | Active | 0.47 µF | ±10% | 100V | X7R | -55°C ~ 125°C | - | - | Bypass, Decoupling | - | Through Hole | Radial | 0.280" L x 0.160" W (7.11mm x 4.07mm) | 0.360" (9.14mm) | - | 0.200" (5.08mm) | Formed Leads |
|
|
C1210Y333KFRACAUTOCAP CER 0.033UF 1.5KV X7R 1210 |
1,994 |
|
Datasheet |
SMD Auto X7R FF | Tape & Reel (TR) | Active | 0.033 µF | ±10% | 1500V (1.5kV) | X7R | -55°C ~ 125°C | Floating Electrode, Soft Termination | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.130" L x 0.102" W (3.30mm x 2.60mm) | - | 0.110" (2.80mm) | - | - |
|
|
C1812X104K2RACTUCAP CER 0.1UF 200V X7R 1812 |
1,838 |
|
Datasheet |
SMD Comm X7R Flex | Tape & Reel (TR) | Active | 0.1 µF | ±10% | 200V | X7R | -55°C ~ 125°C | Soft Termination | - | Boardflex Sensitive | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.181" L x 0.126" W (4.60mm x 3.20mm) | - | 0.043" (1.10mm) | - | - |
|
564R60GAT33CAP CER 330PF 6KV X5S RADIAL |
1,360 |
|
Datasheet |
Cera-Mite 564R | Bulk | Active | 330 pF | ±20% | 6000V (6kV) | X5S | -25°C ~ 105°C | - | - | General Purpose | - | Through Hole | Radial, Disc | 0.402" Dia (10.20mm) | 0.591" (15.00mm) | - | 0.374" (9.50mm) | Straight |
|
C330C474K1R5TACAP CER 0.47UF 100V X7R RADIAL |
754 |
|
Datasheet |
GoldMax 300 Comm X7R | Bulk | Active | 0.47 µF | ±10% | 100V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.280" L x 0.160" W (7.11mm x 4.07mm) | 0.360" (9.14mm) | - | 0.200" (5.08mm) | Formed Leads |
|
|
564R60GAQ33CAP CER 33PF 6KV R3L RADIAL |
729 |
|
Datasheet |
Cera-Mite 564R | Bulk | Active | 33 pF | ±20% | 6000V (6kV) | R3L | -25°C ~ 105°C | - | - | General Purpose | - | Through Hole | Radial, Disc | 0.402" Dia (10.20mm) | 0.591" (15.00mm) | - | 0.374" (9.50mm) | Straight |
|
|
KGM43JR73N153KVCAP CER 0.015UF 1.5KV X7R 1812 |
606 |
|
Datasheet |
KGM - HV | Tape & Reel (TR) | Active | 0.015 µF | ±10% | 1500V (1.5kV) | X7R | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.181" L x 0.126" W (4.60mm x 3.20mm) | - | 0.110" (2.80mm) | - | - |
|
CK06BX473KCAP CER 0.047UF 100V 10% RADIAL |
543 |
|
Datasheet |
Military, MIL-C-11015, CK06 | Bag | Active | 0.047 µF | ±10% | 100V | BX | -55°C ~ 125°C | - | - | High Reliability | - | Through Hole | Radial | 0.290" L x 0.090" W (7.37mm x 2.29mm) | 0.300" (7.62mm) | - | 0.200" (5.08mm) | Straight |
