Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
562R10TSQ75CAP CER 75PF 1KV X5F RADIAL |
1,970 |
|
Datasheet |
Cera-Mite 562R | Bulk | Active | 75 pF | ±10% | 1000V (1kV) | X5F | -55°C ~ 105°C | - | - | General Purpose | - | Through Hole | Radial, Disc | 0.252" Dia (6.40mm) | 0.377" (9.58mm) | - | 0.252" (6.40mm) | Straight |
|
562R5TSD10CAP CER 1000PF 1KV X7R RADIAL |
1,958 |
|
Datasheet |
Cera-Mite 562R | Bulk | Active | 1000 pF | ±10% | 1000V (1kV) | X7R | -55°C ~ 105°C | - | - | General Purpose | - | Through Hole | Radial, Disc | 0.290" Dia (7.37mm) | 0.429" (10.90mm) | - | 0.252" (6.40mm) | Straight |
|
|
562R10TST75CAP CER 750PF 1KV X5F RADIAL |
1,940 |
|
Datasheet |
Cera-Mite 562R | Bulk | Active | 750 pF | ±10% | 1000V (1kV) | X5F | -55°C ~ 105°C | - | - | General Purpose | - | Through Hole | Radial, Disc | 0.291" Dia (7.40mm) | 0.417" (10.58mm) | - | 0.252" (6.40mm) | Straight |
-1,35mm.jpg)
|
GQM22M5C2H180JB01LCAP CER 18PF 500V C0G/NP0 1111 |
1,900 |
|
Datasheet |
GQM | Tape & Reel (TR) | Active | 18 pF | ±5% | 500V | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 1111 (2828 Metric) | 0.110" L x 0.110" W (2.80mm x 2.80mm) | - | 0.053" (1.35mm) | - | - |
|

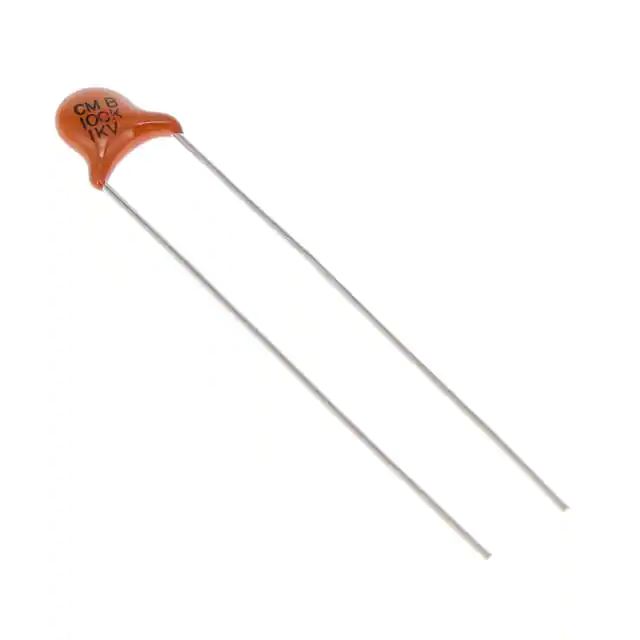

562R10TST10BACAP CER 100PF 1KV X5F RADIAL |
1,861 |
|
Datasheet |
Cera-Mite 562R | Bulk | Active | 100 pF | ±10% | 1000V (1kV) | X5F | -55°C ~ 105°C | - | - | General Purpose | - | Through Hole | Radial, Disc | 0.252" Dia (6.40mm) | 0.377" (9.58mm) | - | 0.252" (6.40mm) | Straight |
|
562R5GAD12CAP CER 1200PF 1KV Z5U RADIAL |
1,816 |
|
Datasheet |
Cera-Mite 562R | Bulk | Active | 1200 pF | ±20% | 1000V (1kV) | Z5U | -55°C ~ 105°C | - | - | Bypass, Decoupling | - | Through Hole | Radial, Disc | 0.291" Dia (7.40mm) | 0.417" (10.58mm) | - | 0.252" (6.40mm) | Formed Leads |
|
|
GCJ55DR7LV334KW01KCAP CER 0.33UF 630V X7R 2220 |
1,776 |
|
Datasheet |
GCJ | Tape & Reel (TR) | Active | 0.33 µF | ±10% | 630V | X7R | -55°C ~ 125°C | Soft Termination | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.079" (2.00mm) | - | - |
|
|
562R10TST20CAP CER 200PF 1KV X5F RADIAL |
1,771 |
|
Datasheet |
Cera-Mite 562R | Bulk | Active | 200 pF | ±10% | 1000V (1kV) | X5F | -55°C ~ 105°C | - | - | General Purpose | - | Through Hole | Radial, Disc | 0.252" Dia (6.40mm) | 0.377" (9.58mm) | - | 0.252" (6.40mm) | Straight |
|
562R10TST18CAP CER 180PF 1KV X5F RADIAL |
1,626 |
|
Datasheet |
Cera-Mite 562R | Bulk | Active | 180 pF | ±10% | 1000V (1kV) | X5F | -55°C ~ 105°C | - | - | General Purpose | - | Through Hole | Radial, Disc | 0.252" Dia (6.40mm) | 0.377" (9.58mm) | - | 0.252" (6.40mm) | Straight |
|
562R10TST30CAP CER 300PF 1KV X5F RADIAL |
1,308 |
|
Datasheet |
Cera-Mite 562R | Bulk | Active | 300 pF | ±10% | 1000V (1kV) | X5F | -55°C ~ 105°C | - | - | General Purpose | - | Through Hole | Radial, Disc | 0.252" Dia (6.40mm) | 0.377" (9.58mm) | - | 0.252" (6.40mm) | Straight |
|

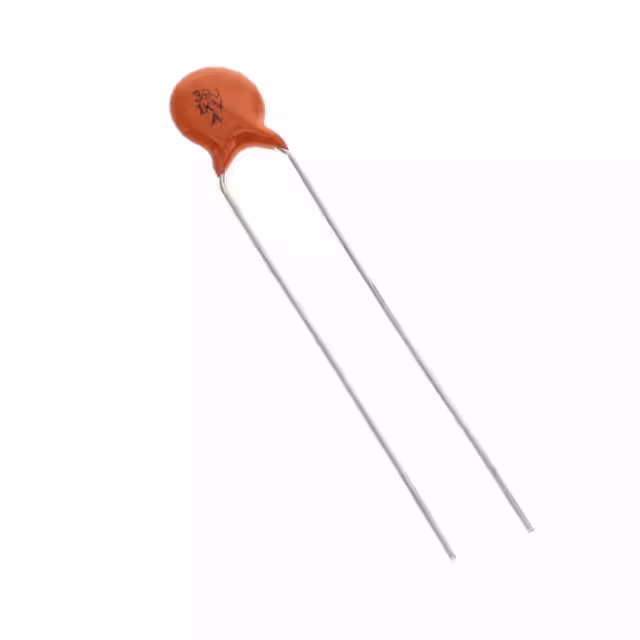

561R10TCCQ39CAP CER 39PF 1KV NP0 RADIAL |
1,237 |
|
Datasheet |
Cera-Mite 561R | Bulk | Active | 39 pF | ±5% | 1000V (1kV) | C0G, NP0 | -55°C ~ 105°C | Low Dissipation Factor | - | General Purpose | - | Through Hole | Radial, Disc | 0.370" Dia (9.40mm) | 0.495" (12.58mm) | - | 0.252" (6.40mm) | Straight |
|
|
GCM32D5C3A562JX01KCAP CER 5600PF 1KV C0G/NP0 1210 |
1,140 |
|
Datasheet |
GCM | Tape & Reel (TR) | Active | 5600 pF | ±5% | 1000V (1kV) | C0G, NP0 | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.079" (2.00mm) | - | - |
|
|
C1206C333J1GACTUCAP CER 0.033UF 100V C0GNP0 1206 |
906 |
|
Datasheet |
SMD Comm C0G | Tape & Reel (TR) | Active | 0.033 µF | ±5% | 100V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.047" (1.20mm) | - | - |
|
|
562R5GAD30CAP CER 3000PF 1KV Z5U RADIAL |
881 |
|
Datasheet |
Cera-Mite 562R | Bulk | Active | 3000 pF | ±20% | 1000V (1kV) | Z5U | -55°C ~ 105°C | - | - | General Purpose | - | Through Hole | Radial, Disc | 0.291" Dia (7.40mm) | 0.417" (10.58mm) | - | 0.252" (6.40mm) | Straight |
|
|
600S2R2BW250XT4KCAP CER 2.2PF 250V NP0 0603 |
493 |
|
Datasheet |
ATC 600S | Tape & Reel (TR) | Active | 2.2 pF | ±0.1pF | 250V | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Ultra Low ESR | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.032" W (1.60mm x 0.81mm) | - | 0.035" (0.89mm) | - | - |
|
|
GCM32D5C3A682JX01KCAP CER 6800PF 1KV C0G/NP0 1210 |
235 |
|
Datasheet |
GCM | Tape & Reel (TR) | Active | 6800 pF | ±5% | 1000V (1kV) | C0G, NP0 | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.079" (2.00mm) | - | - |
-2,80mm.jpg)
|
18121C475KAZ2ACAP CER SMD |
126 |
|
Datasheet |
FLEXITERM® | Tape & Reel (TR) | Active | 4.7 µF | ±10% | 100V | X7R | -55°C ~ 125°C | Soft Termination | - | Boardflex Sensitive | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.110" (2.79mm) | - | - |
-3,20x1,60x1,20mm.jpg)
|
C1206C333J1GACAUTOCAP CER 0.033UF 100V C0G 1206 |
7,279 |
|
Datasheet |
SMD Auto C0G | Tape & Reel (TR) | Active | 0.033 µF | ±5% | 100V | C0G, NP0 | -55°C ~ 125°C | Low ESL | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.047" (1.20mm) | - | - |
|
|
C1206H102J5GACTUCAP CER 1000PF 50V C0G/NP0 1206 |
4,007 |
|
Datasheet |
SMD Indust C0G HT200C | Tape & Reel (TR) | Active | 1000 pF | ±5% | 50V | C0G, NP0 | -55°C ~ 200°C | Low ESL, High Temperature | - | Downhole | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.035" (0.88mm) | - | - |
|
WKO472MCPERUKRCAP CER 4700PF 440VAC Y5U RADIAL |
3,823 |
|
Datasheet |
WKO | Bulk | Active | 4700 pF | ±20% | 440VAC | Y5U (E) | -40°C ~ 125°C | - | X1, Y2 | Safety | - | Through Hole | Radial, Disc | 0.709" Dia (18.00mm) | 0.827" (21.00mm) | - | 0.492" (12.50mm) | Straight |
