Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
-2,80mm.jpg)
|
1812GC332KAT2ACAP CER 3300PF 2KV X7R 1812 |
497 |
|
Datasheet |
KGM - HV | Tape & Reel (TR) | Active | 3300 pF | ±10% | 2000V (2kV) | X7R | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.181" L x 0.126" W (4.60mm x 3.20mm) | - | 0.087" (2.21mm) | - | - |
-2,30mm.jpg)
|
GRM43DR72J104KW01KCAP CER 0.1UF 630V X7R 1812 |
15,324 |
|
Datasheet |
GRM | Tape & Reel (TR) | Active | 0.1 µF | ±10% | 630V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.079" (2.00mm) | - | - |
|
CC1812JKNPO9BN103CAP CER 10000PF 50V C0G/NPO 1812 |
3,990 |
|
Datasheet |
CC | Tape & Reel (TR) | Active | 10000 pF | ±5% | 50V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.057" (1.45mm) | - | - |
|
VJ1111D100JXEQJHTCAP CER 10PF 500V C0G/NP0 1111 |
1,550 |
|
Datasheet |
VJ HIFREQ HT | Tape & Reel (TR) | Active | 10 pF | ±5% | 500V | C0G, NP0 | -55°C ~ 200°C | High Temperature | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 1111 (2828 Metric) | 0.117" L x 0.110" W (2.98mm x 2.79mm) | - | 0.102" (2.59mm) | - | - |
|
VJ0805A102FXAACCAP CER 1000PF 50V C0G/NP0 0805 |
122,203 |
|
Datasheet |
VJ | Tape & Reel (TR) | Active | 1000 pF | ±1% | 50V | C0G, NP0 | -55°C ~ 150°C | - | - | General Purpose | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.057" (1.45mm) | - | - |
|
CL32E475KCIVPNECAP CER 4.7UF 100V 1210 |
49,218 |
|
Datasheet |
CL | Tape & Reel (TR) | Active | 4.7 µF | ±10% | 100V | - | - | General Purpose | AEC-Q200 | Automotive | - | Surface Mount, MLCC, Epoxy | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.106" (2.70mm) | - | - |
|
AMK212BBJ107MG-TECAP CER 100UF 4V X5R 0805 |
7,515 |
|
Datasheet |
M | Tape & Reel (TR) | Active | 100 µF | ±20% | 4V | X5R | -55°C ~ 85°C | - | - | SMPS Filtering | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.057" (1.45mm) | - | - |
-1,30mm.jpg)
|
CDR31BX183AKUSCAP CER 0.018UF 50V BX 0805 |
5,165 |
|
Datasheet |
Military, MIL-PRF-55681, CDR31 | Tape & Reel (TR) | Active | 0.018 µF | ±10% | 50V | BX | -55°C ~ 125°C | - | - | High Reliability | S (0.001%) | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.051" (1.30mm) | - | - |
|
|
GRM32E5C3A123JWA1KCAP CER 0.012UF 1KV C0G/NP0 1210 |
3,651 |
|
Datasheet |
GRM | Tape & Reel (TR) | Active | 0.012 µF | ±5% | 1000V (1kV) | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.104" (2.65mm) | - | - |
|
|
C1206X335K3RAC7800CAP CER 3.3UF 25V X7R 1206 |
3,060 |
|
Datasheet |
SMD Comm X7R Flex | Tape & Reel (TR) | Active | 3.3 µF | ±10% | 25V | X7R | -55°C ~ 125°C | Soft Termination | - | Boardflex Sensitive | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.130" L x 0.063" W (3.30mm x 1.60mm) | - | 0.071" (1.80mm) | - | - |
|
C1206X153JCGACAUTOCAP CER 1206 15NF 500VDC C0G |
2,796 |
|
Datasheet |
SMD Auto C0G HV Flex | Tape & Reel (TR) | Active | 0.015 µF | ±5% | 500V | C0G, NP0 | -55°C ~ 125°C | Low ESL, Soft Termination, High Voltage | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.130" L x 0.063" W (3.30mm x 1.60mm) | - | 0.073" (1.85mm) | - | - |
-3,20x2,50x2,80mm.jpg)
|
C1210C103JDRAC7800CAP CER 10000PF 1KV X7R 1210 |
2,776 |
|
Datasheet |
SMD Comm X7R HV | Tape & Reel (TR) | Active | 10000 pF | ±5% | 1000V (1kV) | X7R | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.061" (1.55mm) | - | - |
.jpg)
|
600F360JT250XTCAP CER 36PF 250V C0G/NP0 0805 |
2,592 |
|
Datasheet |
ATC 600F | Tape & Reel (TR) | Active | 36 pF | ±5% | 250V | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Ultra Low ESR | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.01mm x 1.24mm) | - | 0.051" (1.30mm) | - | - |
|
|
GCM32E5C3A123JX01KCAP CER 0.012UF 1KV C0G/NP0 1210 |
2,317 |
|
Datasheet |
GCM | Tape & Reel (TR) | Active | 0.012 µF | ±5% | 1000V (1kV) | C0G, NP0 | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.104" (2.65mm) | - | - |
|
|
600S2R2AW250XT4KCAP CER 2.2PF 250V NP0 0603 |
2,270 |
|
Datasheet |
ATC 600S | Tape & Reel (TR) | Active | 2.2 pF | ±0.05pF | 250V | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Ultra Low ESR | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.032" W (1.60mm x 0.81mm) | - | 0.035" (0.89mm) | - | - |
|
|
600S2R4AW250XT4KCAP CER 2.4PF 250V NP0 0603 |
2,170 |
|
Datasheet |
ATC 600S | Tape & Reel (TR) | Active | 2.4 pF | ±0.05pF | 250V | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Ultra Low ESR | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.032" W (1.60mm x 0.81mm) | - | 0.035" (0.89mm) | - | - |
|
GRJ32ER71C226KE11LCAP CER 22UF 16V X7R 1210 |
1,868 |
|
Datasheet |
GRJ | Tape & Reel (TR) | Not For New Designs | 22 µF | ±10% | 16V | X7R | -55°C ~ 125°C | Soft Termination | - | Boardflex Sensitive | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.110" (2.80mm) | - | - |
|
|
561R1DF0T22CAP CER 220PF 1KV N2500 RADIAL |
1,866 |
|
Datasheet |
Cera-Mite 561R | Bulk | Active | 220 pF | ±10% | 1000V (1kV) | N2500 | -55°C ~ 105°C | Low Dissipation Factor | - | General Purpose | - | Through Hole | Radial, Disc | 0.252" Dia (6.40mm) | - | - | 0.252" (6.40mm) | Straight |
|
|
600F5R6CT250TCAP CER 5.6PF 250V C0G/NP0 0805 |
1,852 |
|
Datasheet |
ATC 600F | Tape & Reel (TR) | Active | 5.6 pF | ±0.25pF | 250V | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Ultra Low ESR | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.01mm x 1.24mm) | - | 0.051" (1.30mm) | - | - |
|

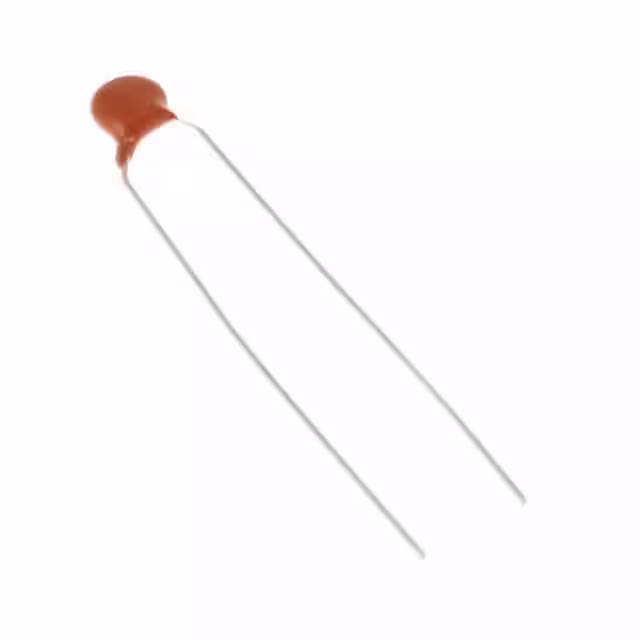

561R10TSQ10CAP CER 10PF 1KV NP0 RADIAL |
1,841 |
|
Datasheet |
Cera-Mite 561R | Bulk | Active | 10 pF | ±10% | 1000V (1kV) | C0G, NP0 | -55°C ~ 105°C | Low Dissipation Factor | - | General Purpose | - | Through Hole | Radial, Disc | 0.252" Dia (6.40mm) | 0.390" (9.90mm) | - | - | Straight |
