Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
-1,27mm.jpg)
|

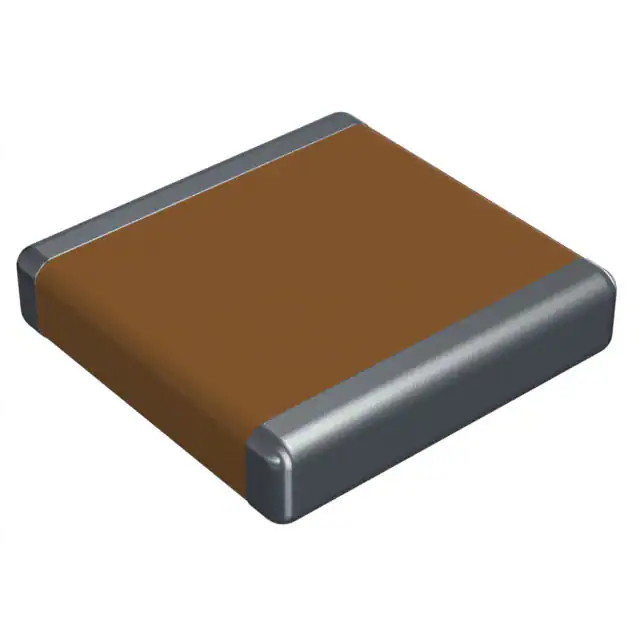

22255C105KAT2ACAP CER 1UF 50V X7R 2225 |
7,627 |
|
Datasheet |
KGM - X7R | Tape & Reel (TR) | Active | 1 µF | ±10% | 50V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 2225 (5763 Metric) | 0.224" L x 0.248" W (5.70mm x 6.30mm) | - | 0.087" (2.21mm) | - | - |
|
100A270JT150XT1KCAP CER 27PF 150V P90 0505 |
2,190 |
|
Datasheet |
Porcelain Superchip® ATC 100A | Tape & Reel (TR) | Active | 27 pF | ±5% | 150V | P90 | -55°C ~ 125°C | High Q, Low Loss, Low ESL | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 0505 (1313 Metric) | 0.055" L x 0.055" W (1.40mm x 1.40mm) | - | 0.057" (1.45mm) | - | - |
|
C1812C300JCGACTUCAP CER 30PF 500V C0G/NP0 1812 |
2,165 |
|
Datasheet |
SMD Comm C0G HV | Tape & Reel (TR) | Active | 30 pF | ±5% | 500V | C0G, NP0 | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.071" (1.80mm) | - | - |
|
|
C2220C562KHRACTUCAP CER 5600PF 3KV X7R 2220 |
2,108 |
|
Datasheet |
SMD Comm X7R HV | Tape & Reel (TR) | Active | 5600 pF | ±10% | 3000V (3kV) | X7R | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.061" (1.55mm) | - | - |
|
|
C1808C560JGGACAUTOCAP CER 56PF 2KV C0G/NP0 1808 |
3,000 |
|
Datasheet |
SMD Auto C0G HV | Tape & Reel (TR) | Active | 56 pF | ±5% | 2000V (2kV) | C0G, NP0 | -55°C ~ 125°C | Low ESL, High Voltage | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1808 (4520 Metric) | 0.185" L x 0.079" W (4.70mm x 2.00mm) | - | 0.069" (1.75mm) | - | - |
-2,54.jpg)
|
18255C105JAT2ACAP CER 1UF 50V X7R 1825 |
2,400 |
|
Datasheet |
KGM - X7R | Tape & Reel (TR) | Active | 1 µF | ±5% | 50V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1825 (4564 Metric) | 0.177" L x 0.252" W (4.50mm x 6.40mm) | - | 0.087" (2.21mm) | - | - |
|
|
C1812C680JCGACTUCAP CER 68PF 500V C0G/NP0 1812 |
2,242 |
|
Datasheet |
SMD Comm C0G HV | Tape & Reel (TR) | Active | 68 pF | ±5% | 500V | C0G, NP0 | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.071" (1.80mm) | - | - |
|
|
C1808C470JGGACAUTOCAP CER 47PF 2KV C0G/NP0 1808 |
1,780 |
|
Datasheet |
SMD Auto C0G HV | Tape & Reel (TR) | Active | 47 pF | ±5% | 2000V (2kV) | C0G, NP0 | -55°C ~ 125°C | Low ESL, High Voltage | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1808 (4520 Metric) | 0.185" L x 0.079" W (4.70mm x 2.00mm) | - | 0.069" (1.75mm) | - | - |
-1,30mm.jpg)
|
CDR31BP221BKUS7185CAP CER 220PF 100V BP 0805 |
1,040 |
|
Datasheet |
Military, MIL-PRF-55681, CDR31 | Tape & Reel (TR) | Active | 220 pF | ±10% | 100V | BP | -55°C ~ 125°C | - | - | High Reliability | S (0.001%) | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.051" (1.30mm) | - | - |
-4,50x3,20x2,7mm.jpg)
|
C1812X101JDGACAUTOCAP CER 1812 100PF 1000V C0G 5% |
645 |
|
Datasheet |
SMD Auto C0G HV Flex | Tape & Reel (TR) | Active | 100 pF | ±5% | 1000V (1kV) | C0G, NP0 | -55°C ~ 125°C | Low ESL, Soft Termination, High Voltage | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.071" (1.80mm) | - | - |
|
|
C1812C105K3RAC7800CAP CER 1UF 25V X7R 1812 |
528 |
|
Datasheet |
SMD Comm X7R | Tape & Reel (TR) | Active | 1 µF | ±10% | 25V | X7R | -55°C ~ 125°C | - | - | Bypass, Decoupling | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.055" (1.40mm) | - | - |
|
|
C1808C101JGGACAUTOCAP CER 100PF 2KV C0G/NP0 1808 |
2,835 |
|
Datasheet |
SMD Auto C0G HV | Tape & Reel (TR) | Active | 100 pF | ±5% | 2000V (2kV) | C0G, NP0 | -55°C ~ 125°C | Low ESL, High Voltage | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1808 (4520 Metric) | 0.185" L x 0.079" W (4.70mm x 2.00mm) | - | 0.069" (1.75mm) | - | - |
|
CGA6M1C0G3A562J200AECAP CER 5600PF 1KV C0G/NP0 1210 |
1,914 |
|
Datasheet |
CGA | Tape & Reel (TR) | Active | 5600 pF | ±5% | 1000V (1kV) | C0G, NP0 | -55°C ~ 125°C | Soft Termination | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.091" (2.30mm) | - | - |
-2,80mm_BN.jpg)
|
885012109003CAP CER 47UF 6.3V X5R 1210 |
1,406 |
|
Datasheet |
WCAP-CSGP | Tape & Reel (TR) | Active | 47 µF | ±20% | 6.3V | X5R | -55°C ~ 85°C | - | - | General Purpose | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.110" (2.80mm) | - | - |
|
|
564RC0GAJ602EJ240JCAP CER 24PF 6KV NP0 RADIAL |
854 |
|
Datasheet |
Cera-Mite 564R | Bulk | Active | 24 pF | ±5% | 6000V (6kV) | C0G, NP0 | -25°C ~ 105°C | Low Dissipation Factor | - | General Purpose | - | Through Hole | Radial, Disc | - | - | - | - | Straight |
-2,30mm.jpg)
|
GRM43DR73A473KW01KCAP CER 0.047UF 1KV X7R 1812 |
11,045 |
|
Datasheet |
GRM | Tape & Reel (TR) | Active | 0.047 µF | ±10% | 1000V (1kV) | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.079" (2.00mm) | - | - |
|
SR215C105KARTR1CAP CER 1UF 50V X7R RADIAL |
4,942 |
|
Datasheet |
SkyCap® SR | Tape & Reel (TR) | Active | 1 µF | ±10% | 50V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.200" L x 0.125" W (5.08mm x 3.18mm) | 0.300" (7.62mm) | - | 0.200" (5.08mm) | Formed Leads - Kinked |
|
|
600S7R5BW250XT4KCAP CER 7.5PF 250V NP0 0603 |
4,735 |
|
Datasheet |
ATC 600S | Tape & Reel (TR) | Active | 7.5 pF | ±0.1pF | 250V | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Ultra Low ESR | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.032" W (1.60mm x 0.81mm) | - | 0.035" (0.89mm) | - | - |
|
|
SR215C105KARCAP CER 1UF 50V X7R RADIAL |
978 |
|
Datasheet |
SkyCap® SR | Bulk | Active | 1 µF | ±10% | 50V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.200" L x 0.125" W (5.08mm x 3.18mm) | 0.200" (5.08mm) | - | 0.200" (5.08mm) | Formed Leads - Kinked |
-2.6.jpg)
|
CGA8N4NP02W473J230KACAP CER 0.047UF 450V C0G 1812 |
977 |
|
Datasheet |
CGA | Tape & Reel (TR) | Active | 0.047 µF | ±5% | 450V | C0G, NP0 | -55°C ~ 150°C | High Temperature | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.098" (2.50mm) | - | - |
