Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C320C162JDG5TACAP CER 1600PF 1KV NP0 RADIAL |
286 |
|
Datasheet |
GoldMax 300 Comm C0G HV | Bulk | Active | 1600 pF | ±5% | 1000V (1kV) | C0G, NP0 | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Through Hole | Radial | 0.200" L x 0.150" W (5.08mm x 3.81mm) | 0.290" (7.36mm) | - | 0.100" (2.54mm) | Straight |
|
C1210X106M3RACTUCAP CER 10UF 25V X7R 1210 |
17,372 |
|
Datasheet |
SMD Comm X7R Flex | Tape & Reel (TR) | Active | 10 µF | ±20% | 25V | X7R | -55°C ~ 125°C | Soft Termination | - | Boardflex Sensitive | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.130" L x 0.102" W (3.30mm x 2.60mm) | - | 0.110" (2.80mm) | - | - |
|
FG22C0G2W473JNT06CAP CER 0.047UF 450V C0G RADIAL |
3,429 |
|
Datasheet |
FG | Cut Tape (CT) | Active | 0.047 µF | ±5% | 450V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.295" L x 0.177" W (7.50mm x 4.50mm) | 0.335" (8.50mm) | - | 0.197" (5.00mm) | Formed Leads - Kinked |
-3,20x1,60x1,35mm.jpg)
|
C1206X106J4RAC7800CAP CER 10UF 16V X7R 1206 |
3,396 |
|
Datasheet |
SMD Comm X7R Flex | Tape & Reel (TR) | Active | 10 µF | ±5% | 16V | X7R | -55°C ~ 125°C | Soft Termination | - | Boardflex Sensitive | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.130" L x 0.063" W (3.30mm x 1.60mm) | - | 0.077" (1.95mm) | - | - |
|
CGA6P3X7T0E107M250ABCAP CER 100UF 2.5V X7T 1210 |
2,288 |
|
Datasheet |
CGA | Tape & Reel (TR) | Active | 100 µF | ±20% | 2.5V | X7T | -55°C ~ 125°C | Low ESL | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.114" (2.90mm) | - | - |
-1,50mm.jpg)
|
GRJ43DR72E474KWJ1KCAP CER 0.47UF 250V X7R 1812 |
1,798 |
|
Datasheet |
GRJ | Tape & Reel (TR) | Active | 0.47 µF | ±10% | 250V | X7R | -55°C ~ 125°C | Soft Termination | - | Boardflex Sensitive | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.079" (2.00mm) | - | - |
|

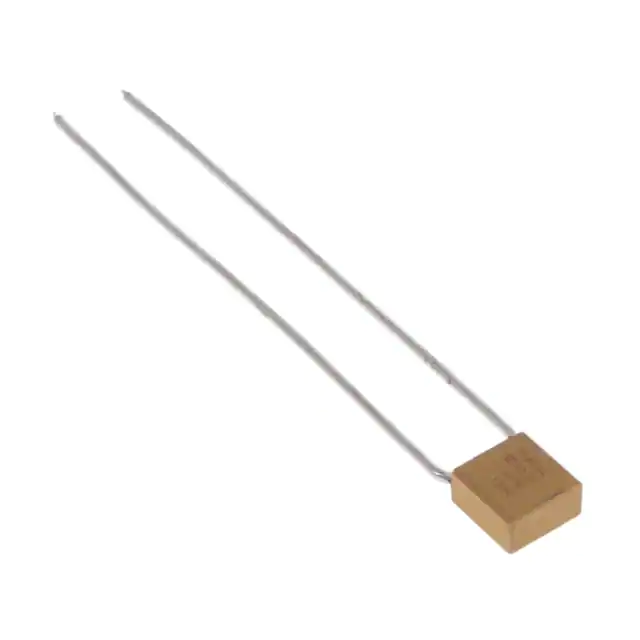

M39014/01-1317CAP CER 1000PF 200V BX RADIAL |
934 |
|
Datasheet |
Military, MIL-PRF-39014, CKR05 | Bulk | Active | 1000 pF | ±10% | 200V | BX | -55°C ~ 125°C | - | - | High Reliability | R (0.01%) | Through Hole | Radial | 0.190" L x 0.090" W (4.83mm x 2.29mm) | 0.200" (5.08mm) | - | 0.200" (5.08mm) | Formed Leads |
|
|
C1812X822KGRACTUCAP CER 8200PF 2KV X7R 1812 FLEX |
3,761 |
|
Datasheet |
SMD Comm X7R HV Flex | Tape & Reel (TR) | Active | 8200 pF | ±10% | 2000V (2kV) | X7R | -55°C ~ 125°C | Low ESL, Soft Termination, High Voltage | - | Boardflex Sensitive | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.087" (2.20mm) | - | - |
.jpg)
|
600F820GT250XTCAP CER 82PF 250V C0G/NP0 0805 |
1,484 |
|
Datasheet |
ATC 600F | Tape & Reel (TR) | Active | 82 pF | ±2% | 250V | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Ultra Low ESR | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.01mm x 1.24mm) | - | 0.051" (1.30mm) | - | - |
|
C340C225M5U5TACAP CER 2.2UF 50V Z5U RADIAL |
613 |
|
Datasheet |
GoldMax 300 Comm Z5U | Bulk | Active | 2.2 µF | ±20% | 50V | Z5U | 10°C ~ 85°C | - | - | General Purpose | - | Through Hole | Radial | 0.290" L x 0.160" W (7.36mm x 4.07mm) | 0.400" (10.16mm) | - | 0.200" (5.08mm) | Straight |
-2,00mm.jpg)
|
2225PC125KAT1ACAP CER 1.2UF 250V X7R 2225 |
409 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 1.2 µF | ±10% | 250V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 2225 (5763 Metric) | 0.225" L x 0.250" W (5.72mm x 6.35mm) | - | 0.079" (2.00mm) | - | - |
|
|
C1812C471JCGACTUCAP CER 470PF 500V NP0 1812 |
1,212 |
|
Datasheet |
SMD Comm C0G HV | Tape & Reel (TR) | Active | 470 pF | ±5% | 500V | C0G, NP0 | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.071" (1.80mm) | - | - |
|
|
C1808C101KHGAC7800CAP CER 100PF 3KV C0G/NP0 1808 |
1,800 |
|
Datasheet |
SMD Comm C0G HV | Tape & Reel (TR) | Active | 100 pF | ±10% | 3000V (3kV) | C0G, NP0 | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1808 (4520 Metric) | 0.185" L x 0.079" W (4.70mm x 2.00mm) | - | 0.069" (1.75mm) | - | - |
|
564R60GAD15CAP CER 1500PF 6KV Z5U RADIAL |
671 |
|
Datasheet |
Cera-Mite 564R | Bulk | Active | 1500 pF | ±20% | 6000V (6kV) | Z5U | -25°C ~ 105°C | - | - | General Purpose | - | Through Hole | Radial, Disc | 0.461" Dia (11.70mm) | 0.650" (16.50mm) | - | 0.374" (9.50mm) | Straight |
|
VJ0805D271FXPAJCAP CER 270PF 250V NP0 0805 |
28,498 |
|
Datasheet |
VJ HIFREQ | Tape & Reel (TR) | Active | 270 pF | ±1% | 250V | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.057" (1.45mm) | - | - |
|
|
VPDR602W221K1GV001ECAP CER 220PF 6KV X7R 1812 |
11,905 |
|
Datasheet |
HVS-PME | Tape & Reel (TR) | Active | 220 pF | ±10% | 6000V (6kV) | X7R | -55°C ~ 125°C | High Voltage | - | SMPS Filtering | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.125" W (4.50mm x 3.18mm) | - | 0.110" (2.80mm) | - | - |
|
|
C1812C223JAGACTUCAP CER 0.022UF 250V C0GNP0 1812 |
1,880 |
|
Datasheet |
SMD Comm C0G | Tape & Reel (TR) | Active | 0.022 µF | ±5% | 250V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.043" (1.10mm) | - | - |
.jpg)
|
600L9R1BW200TCAP CER 9.1PF 200V NP0 0402 |
1,811 |
|
Datasheet |
ATC 600L | Tape & Reel (TR) | Active | 9.1 pF | ±0.1pF | 200V | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Ultra Low ESR | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.040" L x 0.020" W (1.02mm x 0.51mm) | - | 0.024" (0.60mm) | - | - |
|
|
C1812C222KDGACTUCAP CER 2200PF 1KV C0G/NP0 1812 |
1,200 |
|
Datasheet |
SMD Comm C0G HV | Tape & Reel (TR) | Active | 2200 pF | ±10% | 1000V (1kV) | C0G, NP0 | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.071" (1.80mm) | - | - |
|
C331C472KGR5TACAP CER 4700PF 2KV X7R RADIAL |
250 |
|
Datasheet |
GoldMax 300 Comm X7R HV | Bulk | Active | 4700 pF | ±10% | 2000V (2kV) | X7R | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Through Hole | Radial | 0.300" L x 0.250" W (7.62mm x 6.35mm) | 0.360" (9.14mm) | - | 0.250" (6.35mm) | Formed Leads |
