Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M39014/01-1237CAP CER AXIAL |
700 |
|
Datasheet |
Military, MIL-PRF-39014, CKR05 | Bulk | Active | 1000 pF | ±10% | 200V | BX | -55°C ~ 125°C | - | - | High Reliability | M (1%) | Through Hole | Radial | 0.190" L x 0.090" W (4.83mm x 2.29mm) | 0.200" (5.08mm) | - | 0.200" (5.08mm) | Formed Leads |
|
M39014/02-1298VCAP CER 10000PF 200V BX RADIAL |
258 |
|
Datasheet |
Military, MIL-PRF-39014, CKR06 | Bag | Active | 10000 pF | ±10% | 200V | BX | -55°C ~ 125°C | - | - | High Reliability | R (0.01%) | Through Hole | Radial | 0.290" L x 0.090" W (7.37mm x 2.29mm) | 0.300" (7.62mm) | - | 0.200" (5.08mm) | Straight |
|
100A220JW150XT1KCAP CER 22PF 150V P90 0505 |
3,352 |
|
Datasheet |
Porcelain Superchip® ATC 100A | Tape & Reel (TR) | Active | 22 pF | ±5% | 150V | P90 | -55°C ~ 125°C | High Q, Low Loss, Low ESL | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 0505 (1313 Metric) | 0.055" L x 0.055" W (1.40mm x 1.40mm) | - | 0.057" (1.45mm) | - | - |
.jpg)
|
600S1R8AW250XTCAP CER 1.8PF 250V NP0 0603 |
4,419 |
|
Datasheet |
ATC 600S | Tape & Reel (TR) | Active | 1.8 pF | ±0.05pF | 250V | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Ultra Low ESR | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.032" W (1.60mm x 0.81mm) | - | 0.035" (0.89mm) | - | - |
|
|
VJ1111D4R7CXEQJHTCAP CER 4.7PF 500V C0G/NP0 1111 |
4,172 |
|
Datasheet |
VJ HIFREQ HT | Tape & Reel (TR) | Active | 4.7 pF | ±0.25pF | 500V | C0G, NP0 | -55°C ~ 200°C | High Temperature | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 1111 (2828 Metric) | 0.117" L x 0.110" W (2.98mm x 2.79mm) | - | 0.102" (2.59mm) | - | - |
-1,80mm-C-Series.jpg)
|
C1825C474KARAC7800CAP CER 0.47UF 250V X7R 1825 |
3,426 |
|
Datasheet |
SMD Comm X7R Tip-Ring | Tape & Reel (TR) | Active | 0.47 µF | ±10% | 250V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1825 (4564 Metric) | 0.177" L x 0.252" W (4.50mm x 6.40mm) | - | 0.057" (1.45mm) | - | - |
-1,79-mm-Tan.jpg)
|
111122K00100FQTCAP CER 10PF 2KV C0G/NP0 1111 |
2,850 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | 10 pF | ±1% | 2000V (2kV) | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Non-Magnetic | - | General Purpose | - | Surface Mount, MLCC | 1111 (2828 Metric) | 0.110" L x 0.110" W (2.79mm x 2.79mm) | - | 0.098" (2.50mm) | - | - |
.jpg)
|
GR355DD72J104KW01LCAP CER 0.1UF 630V X7T 2220 |
2,363 |
|
Datasheet |
GR3 | Tape & Reel (TR) | Active | 0.1 µF | ±10% | 630V | X7T | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.079" (2.00mm) | - | - |
|
|
C1825C683KFRAC7800CAP CER 0.068UF 1.5KV X7R 1825 |
1,550 |
|
Datasheet |
SMD Comm X7R HV | Tape & Reel (TR) | Active | 0.068 µF | ±10% | 1500V (1.5kV) | X7R | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1825 (4564 Metric) | 0.177" L x 0.252" W (4.50mm x 6.40mm) | - | 0.106" (2.70mm) | - | - |
|
C1812C332JCGACTUCAP CER 3300PF 500V NP0 1812 |
960 |
|
Datasheet |
SMD Comm C0G HV | Tape & Reel (TR) | Active | 3300 pF | ±5% | 500V | C0G, NP0 | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.071" (1.80mm) | - | - |
|
VJ1206A332FXBATCAP CER 3300PF 100V C0G/NP0 1206 |
2,304 |
|
Datasheet |
VJ | Tape & Reel (TR) | Active | 3300 pF | ±1% | 100V | C0G, NP0 | -55°C ~ 150°C | - | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.067" (1.70mm) | - | - |
|
|
600S3R0AW250XTCAP CER 3PF 250V NP0 0603 |
1,329 |
|
Datasheet |
ATC 600S | Tape & Reel (TR) | Active | 3 pF | ±0.05pF | 250V | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Ultra Low ESR | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.032" W (1.60mm x 0.81mm) | - | 0.035" (0.89mm) | - | - |
|
GRM55D7U2J473JW31LCAP CER 0.047UF 630V U2J 2220 |
1,299 |
|
Datasheet |
GRM | Tape & Reel (TR) | Active | 0.047 µF | ±5% | 630V | U2J | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.087" (2.20mm) | - | - |
.jpg)
|
600L2R0AW200TCAP CER 2PF 200V NP0 0402 |
1,229 |
|
Datasheet |
ATC 600L | Tape & Reel (TR) | Active | 2 pF | ±0.05pF | 200V | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Ultra Low ESR | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 0402 (1005 Metric) | 0.040" L x 0.020" W (1.02mm x 0.51mm) | - | 0.024" (0.60mm) | - | - |
|

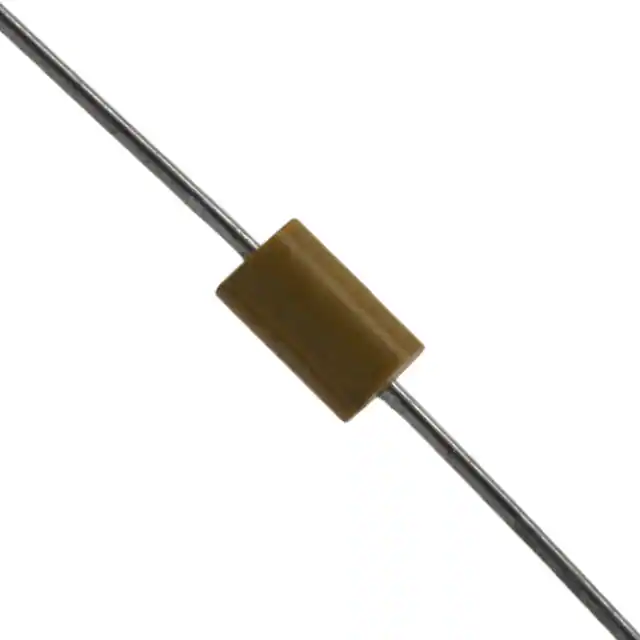

CCR75CG101JRCAP CER 100PF 100V 5% AXIAL |
215 |
|
Datasheet |
Military, MIL-PRF-20, CCR75 | Bulk | Active | 100 pF | ±5% | 100V | C0G, NP0 | -55°C ~ 125°C | - | - | High Reliability | R (0.01%) | Through Hole | Axial | 0.090" Dia x 0.160" L (2.29mm x 4.06mm) | - | - | - | Straight |
-1,55mm-C-Series.jpg)
|
C4532C0G2E683J230KNCAP CER 0.068UF 250V C0G 1812 |
7,439 |
|
Datasheet |
C | Tape & Reel (TR) | Active | 0.068 µF | ±5% | 250V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.098" (2.50mm) | - | - |
|
|
GC355DD7LP684KX18KCAP CER 0.68UF 450V X7T 2220 |
3,864 |
|
Datasheet |
GC3 | Tape & Reel (TR) | Active | 0.68 µF | ±10% | 450V | X7T | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.079" (2.00mm) | - | - |
|
|
C1812C391JZGACTUCAP CER 390PF 2.5KV C0G/NP0 1812 |
2,041 |
|
Datasheet |
SMD Comm C0G HV | Tape & Reel (TR) | Active | 390 pF | ±5% | 2500V (2.5kV) | C0G, NP0 | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.071" (1.80mm) | - | - |
|
|
C4532C0G2E683K230KNCAP CER 0.068UF 250V C0G 1812 |
946 |
|
Datasheet |
C | Tape & Reel (TR) | Not For New Designs | 0.068 µF | ±10% | 250V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.098" (2.50mm) | - | - |
|
|
C1812C561KFGACTUCAP CER 560PF 1.5KV C0G/NP0 1812 |
933 |
|
Datasheet |
SMD Comm C0G HV | Tape & Reel (TR) | Active | 560 pF | ±10% | 1500V (1.5kV) | C0G, NP0 | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.055" (1.40mm) | - | - |
