Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMDY1332MY5UDRSMDY1 X760Y500VAC 3300PF 20% Y5U |
6,816 |
|
Datasheet |
SMD Y1 | Tape & Reel (TR) | Active | 3300 pF | ±20% | 760VAC | Y5U | -55°C ~ 125°C | Flame Retardant | X1, Y1 | Safety | - | Surface Mount, SLCC | 2-SMD | 0.638" L x 0.575" W (16.20mm x 14.60mm) | - | 0.157" (4.00mm) | - | Gull Wing |
|
KGM32ECG1H472FUCAP CER 4700PF 50V C0G/NP0 1210 |
5,323 |
|
Datasheet |
KGM - C0G | Tape & Reel (TR) | Active | 4700 pF | ±1% | 50V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.057" (1.45mm) | - | - |
|
KVD101L155M55A0T00CAP CER 1.5UF 100V X8L RADIAL |
3,339 |
|
Datasheet |
KVD | Cut Tape (CT) | Active | 1.5 µF | ±20% | 100V | X8L | -55°C ~ 150°C | High Temperature | AEC-Q200 | Automotive | - | Through Hole | Radial | 0.295" L x 0.177" W (7.50mm x 4.50mm) | 0.354" (9.00mm) | - | 0.197" (5.00mm) | Straight |
.jpg)
|
1812B102K202NTCAP CER 1000PF 2KV X7R 1812 |
2,955 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 1000 pF | ±10% | 2000V (2kV) | X7R | -55°C ~ 125°C | - | - | SMPS Filtering | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.180" L x 0.125" W (4.57mm x 3.18mm) | - | 0.065" (1.65mm) | - | - |
|
SR305E225MARTR2CAP CER 2.2UF 50V Z5U RADIAL |
2,367 |
|
Datasheet |
SkyCap® SR | Tape & Reel (TR) | Active | 2.2 µF | ±20% | 50V | Z5U | 10°C ~ 85°C | - | - | General Purpose | - | Through Hole | Radial | 0.300" L x 0.150" W (7.62mm x 3.81mm) | 0.300" (7.62mm) | - | 0.200" (5.08mm) | Straight |
-2,54.jpg)
|
1825HC103KAZ1ACAP CER 10000PF 3KV X7R 1825 |
2,337 |
|
Datasheet |
FLEXITERM® | Tape & Reel (TR) | Active | 10000 pF | ±10% | 3000V (3kV) | X7R | -55°C ~ 125°C | Soft Termination, High Voltage | - | SMPS Filtering, Boardflex Sensitive | - | Surface Mount, MLCC | 1825 (4564 Metric) | 0.181" L x 0.248" W (4.60mm x 6.30mm) | - | 0.134" (3.40mm) | - | - |
|
|
SR305E225MARCAP CER 2.2UF 50V Z5U RADIAL |
1,070 |
|
Datasheet |
SkyCap® SR | Bulk | Active | 2.2 µF | ±20% | 50V | Z5U | 10°C ~ 85°C | - | - | General Purpose | - | Through Hole | Radial | 0.300" L x 0.125" W (7.62mm x 3.18mm) | 0.300" (7.62mm) | - | 0.200" (5.08mm) | Straight |
|
RHEL81H106MWK1H03BCAP CER 10UF 50V X8L RADIAL |
299 |
|
Datasheet |
RH | Bulk | Active | 10 µF | ±20% | 50V | X8L | -55°C ~ 150°C | - | AEC-Q200 | Automotive | - | Through Hole | Radial | 0.217" L x 0.157" W (5.50mm x 4.00mm) | 0.295" (7.50mm) | - | 0.197" (5.00mm) | Formed Leads |
|

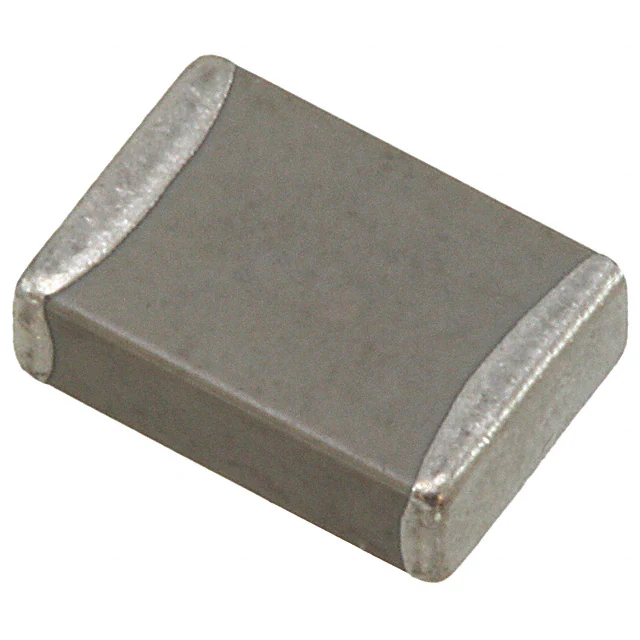

CDR34BX104AKUS7185CAP CER 0.1UF 50V BX 1812 |
260 |
|
Datasheet |
Military, MIL-PRF-55681, CDR34 | Tape & Reel (TR) | Active | 0.1 µF | ±10% | 50V | BX | -55°C ~ 125°C | - | - | High Reliability | S (0.001%) | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.059" (1.50mm) | - | - |
-4,50x3,20x2,7mm.jpg)
|
C1812X103KDRACAUTOCAP CER 10000PF 1KV X7R 1812 |
1,442 |
|
Datasheet |
SMD Auto X7R HV Flex | Tape & Reel (TR) | Active | 10000 pF | ±10% | 1000V (1kV) | X7R | -55°C ~ 125°C | Soft Termination, High Voltage | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.061" (1.55mm) | - | - |
|
SR215A152FARCAP CER 1500PF 50V NP0 RADIAL |
915 |
|
Datasheet |
SkyCap® SR | Bulk | Active | 1500 pF | ±1% | 50V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.200" L x 0.125" W (5.08mm x 3.18mm) | 0.300" (7.62mm) | - | 0.200" (5.08mm) | Formed Leads - Kinked |
.jpg)
|
KTF101B475M43EHT00CAP CER 4.7UF 100V X7R 1812 |
641 |
|
Datasheet |
NTF | Tape & Reel (TR) | Active | 4.7 µF | ±20% | 100V | X7R | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.110" (2.80mm) | - | - |
-4,70x2,00x2,15mm.jpg)
|
C1808C100JHGAC7800CAP CER 10PF 3KV C0G/NP0 1808 |
2,102 |
|
Datasheet |
SMD Comm C0G HV | Tape & Reel (TR) | Active | 10 pF | ±5% | 3000V (3kV) | C0G, NP0 | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1808 (4520 Metric) | 0.185" L x 0.079" W (4.70mm x 2.00mm) | - | 0.069" (1.75mm) | - | - |
.jpg)
|
C1812X223KDRACAUTOCAP CER 0.022UF 1KV X7R 1812 |
1,213 |
|
Datasheet |
SMD Auto X7R HV Flex | Tape & Reel (TR) | Active | 0.022 µF | ±10% | 1000V (1kV) | X7R | -55°C ~ 125°C | Low ESL, Soft Termination, High Voltage | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.071" (1.80mm) | - | - |
-2,70mm.jpg)
|
AMK325ABJ227MMHPCAP CER 220UF 4V X5R 1210 |
1,109 |
|
Datasheet |
M | Tape & Reel (TR) | Not For New Designs | 220 µF | ±20% | 4V | X5R | -55°C ~ 85°C | - | - | Automotive, SMPS Filtering | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.110" (2.80mm) | - | - |
.jpg)
|
600F1R2AT250XTCAP CER 1.2PF 250V C0G/NP0 0805 |
893 |
|
Datasheet |
ATC 600F | Tape & Reel (TR) | Active | 1.2 pF | ±0.05pF | 250V | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Ultra Low ESR | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.01mm x 1.24mm) | - | 0.051" (1.30mm) | - | - |
|
|
C1808C201JZGACTUCAP CER 200PF 2.5KV C0G/NP0 1808 |
678 |
|
Datasheet |
SMD Comm C0G HV | Tape & Reel (TR) | Active | 200 pF | ±5% | 2500V (2.5kV) | C0G, NP0 | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1808 (4520 Metric) | 0.185" L x 0.079" W (4.70mm x 2.00mm) | - | 0.085" (2.15mm) | - | - |
|
C062C105K5R5TACAP CER 1UF 50V X7R RADIAL |
291 |
|
Datasheet |
LDD Comm X7R | Bulk | Active | 1 µF | ±10% | 50V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.290" L x 0.090" W (7.37mm x 2.29mm) | 0.300" (7.62mm) | - | 0.200" (5.08mm) | Straight |
|
|
CAN21X154KARACTUCAP CER 2220 150NF 250VAC X7R |
527 |
|
Datasheet |
CAN SMD Indust X7R | Tape & Reel (TR) | Active | 0.15 µF | ±10% | 250VAC | X7R | -55°C ~ 125°C | Low ESL, Soft Termination | - | Boardflex Sensitive | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.232" L x 0.197" W (5.90mm x 5.00mm) | - | 0.061" (1.55mm) | - | - |
|
|
C1808C180JHGACTUCAP CER 18PF 3KV NP0 1808 |
321 |
|
Datasheet |
SMD Comm C0G HV | Tape & Reel (TR) | Active | 18 pF | ±5% | 3000V (3kV) | C0G, NP0 | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1808 (4520 Metric) | 0.185" L x 0.079" W (4.70mm x 2.00mm) | - | 0.069" (1.75mm) | - | - |
