Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C1812C122JHRACTUCAP CER 1200PF 3KV X7R 1812 |
141 |
|
Datasheet |
SMD Comm X7R HV | Tape & Reel (TR) | Active | 1200 pF | ±5% | 3000V (3kV) | X7R | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.071" (1.80mm) | - | - |
.jpg)
|
C1210X106K3RAC312310.0UF 25.0V |
2,158 |
|
Datasheet |
SMD Auto X7R Flex | Tape & Reel (TR) | Active | 10 µF | ±10% | 25V | X7R | -55°C ~ 125°C | Soft Termination | - | Boardflex Sensitive | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.130" L x 0.102" W (3.30mm x 2.60mm) | - | 0.110" (2.80mm) | - | - |
|
|
C1812C431JZGACTUCAP CER 430PF 2.5KV C0G/NP0 1812 |
1,324 |
|
Datasheet |
SMD Comm C0G HV | Tape & Reel (TR) | Active | 430 pF | ±5% | 2500V (2.5kV) | C0G, NP0 | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.071" (1.80mm) | - | - |
|
|
C1808C101JHGACTUCAP CER 100PF 3KV C0G/NP0 1808 |
989 |
|
Datasheet |
SMD Comm C0G HV | Tape & Reel (TR) | Active | 100 pF | ±5% | 3000V (3kV) | C0G, NP0 | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1808 (4520 Metric) | 0.185" L x 0.079" W (4.70mm x 2.00mm) | - | 0.069" (1.75mm) | - | - |
.jpg)
|
0603BW225K160YTCAP CER 2.2UF 16V X5R 0603 |
871 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 2.2 µF | ±10% | 16V | X5R | -55°C ~ 85°C | - | - | SMPS Filtering | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.032" W (1.60mm x 0.81mm) | - | 0.035" (0.89mm) | - | - |
 32.jpg)
|

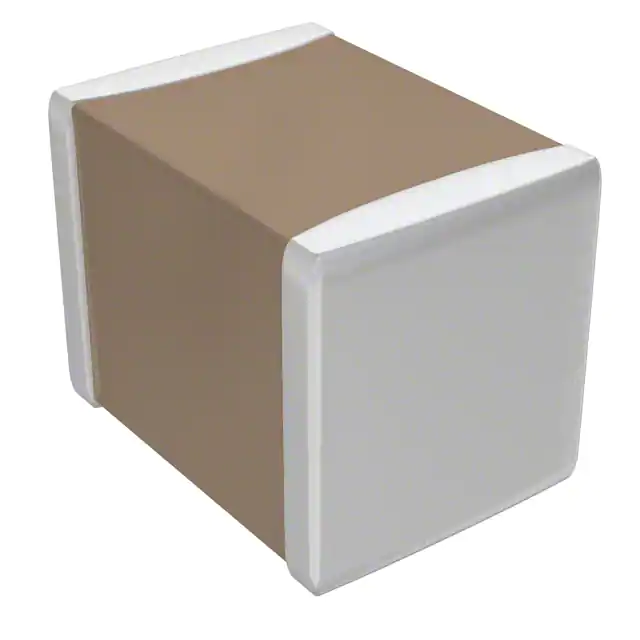

C4532C0G2J223J320KACAP CER 0.022UF 630V C0G 1812 |
7,666 |
|
Datasheet |
C | Tape & Reel (TR) | Active | 0.022 µF | ±5% | 630V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.138" (3.50mm) | - | - |
|
|
600S200FW250XT4KCAP CER 20PF 250V NP0 0603 |
4,954 |
|
Datasheet |
ATC 600S | Tape & Reel (TR) | Active | 20 pF | ±1% | 250V | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Ultra Low ESR | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.032" W (1.60mm x 0.81mm) | - | 0.035" (0.89mm) | - | - |
-1,55mm-C-Series.jpg)
|
C4532C0G2J223K320KACAP CER 0.022UF 630V C0G 1812 |
1,340 |
|
Datasheet |
C | Tape & Reel (TR) | Not For New Designs | 0.022 µF | ±10% | 630V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.138" (3.50mm) | - | - |
|
2225GC103KAT2ACAP CER 10000PF 2KV X7R 2225 |
780 |
|
Datasheet |
KGM - HV | Tape & Reel (TR) | Active | 10000 pF | ±10% | 2000V (2kV) | X7R | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Surface Mount, MLCC | 2225 (5763 Metric) | 0.224" L x 0.248" W (5.70mm x 6.30mm) | - | 0.087" (2.21mm) | - | - |
|
CK06BX334KCAP CER 0.33UF 50V BX RADIAL |
193 |
|
Datasheet |
Military, MIL-C-11015, CK06 | Bulk | Active | 0.33 µF | ±10% | 50V | BX | -55°C ~ 125°C | - | - | High Reliability | - | Through Hole | Radial | 0.290" L x 0.090" W (7.37mm x 2.29mm) | 0.300" (7.62mm) | - | 0.200" (5.08mm) | Straight |
|
1808B102K202NTCAP CER 1000PF 2KV X7R 1808 |
12,031 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 1000 pF | ±10% | 2000V (2kV) | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1808 (4520 Metric) | 0.180" L x 0.080" W (4.57mm x 2.03mm) | - | 0.065" (1.65mm) | - | - |
-3,20x2,50x2,80mm.jpg)
|
C1210C102FDGACAUTOCAP CER 1210 1NF 1000V C0G 1% |
5,452 |
|
Datasheet |
SMD Auto C0G HV | Tape & Reel (TR) | Active | 1000 pF | ±1% | 1000V (1kV) | C0G, NP0 | -55°C ~ 125°C | Low ESL, High Voltage | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.075" (1.90mm) | - | - |
|
|
C1808C121JHGAC7800CAP CER 120PF 3KV C0G/NP0 1808 |
1,940 |
|
Datasheet |
SMD Comm C0G HV | Tape & Reel (TR) | Active | 120 pF | ±5% | 3000V (3kV) | C0G, NP0 | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1808 (4520 Metric) | 0.185" L x 0.079" W (4.70mm x 2.00mm) | - | 0.069" (1.75mm) | - | - |
-1,80mm-C-Series.jpg)
|
C1825C104KCRAC7800CAP CER 0.1UF 500V X7R 1825 |
1,233 |
|
Datasheet |
SMD Comm X7R HV | Tape & Reel (TR) | Active | 0.1 µF | ±10% | 500V | X7R | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1825 (4564 Metric) | 0.177" L x 0.252" W (4.50mm x 6.40mm) | - | 0.071" (1.80mm) | - | - |
-4,50x3,20x2,7mm.jpg)
|
C1812C101FDGAC7800CAP CER 100PF 1KV C0G/NP0 1812 |
563 |
|
Datasheet |
SMD Comm C0G HV | Tape & Reel (TR) | Active | 100 pF | ±1% | 1000V (1kV) | C0G, NP0 | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.071" (1.80mm) | - | - |
|
GA355QR7GB153KW01LCAP CER 0.015UF 250VAC X7R 2220 |
5,799 |
|
Datasheet |
GA3 | Tape & Reel (TR) | Active | 0.015 µF | ±10% | 250VAC | X7R | -55°C ~ 125°C | - | X2 | Safety | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.059" (1.50mm) | - | - |
|
KTJ251B105M55AFT00CAP CER 1UF 250V X7R SMD |
3,830 |
|
Datasheet |
KTJ, NTJ | Tape & Reel (TR) | Active | 1 µF | ±20% | 250V | X7R | -55°C ~ 125°C | Low ESL | - | Bypass, Decoupling | - | Surface Mount, MLCC | SMD, J-Lead | 0.236" L x 0.209" W (6.00mm x 5.30mm) | - | 0.150" (3.80mm) | - | J-Lead |
|
RCEC72A475MWM1H03ACAP CER 4.7UF 100V X7S RADIAL |
2,758 |
|
Datasheet |
RCE | Cut Tape (CT) | Active | 4.7 µF | ±20% | 100V | X7S | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Through Hole | Radial | 0.217" L x 0.157" W (5.50mm x 4.00mm) | 0.295" (7.50mm) | - | 0.197" (5.00mm) | Formed Leads |
|
|
C0805C272F1GACTUCAP CER 2700PF 100V C0G/NP0 0805 |
1,797 |
|
Datasheet |
SMD Comm C0G | Tape & Reel (TR) | Active | 2700 pF | ±1% | 100V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.035" (0.88mm) | - | - |
|
|
C1825C104K1RAC7800CAP CER 0.1UF 100V X7R 1825 |
1,058 |
|
Datasheet |
SMD Comm X7R | Tape & Reel (TR) | Active | 0.1 µF | ±10% | 100V | X7R | -55°C ~ 125°C | - | - | Bypass, Decoupling | - | Surface Mount, MLCC | 1825 (4564 Metric) | 0.177" L x 0.252" W (4.50mm x 6.40mm) | - | 0.049" (1.25mm) | - | - |
