Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C2225X103KHRACTUCAP CER 10000PF 3KV X7R 2225 FLE |
1,040 |
|
Datasheet |
SMD Comm X7R HV Flex | Tape & Reel (TR) | Active | 10000 pF | ±10% | 3000V (3kV) | X7R | -55°C ~ 125°C | Low ESL, Soft Termination, High Voltage | - | Boardflex Sensitive | - | Surface Mount, MLCC | 2225 (5763 Metric) | 0.232" L x 0.252" W (5.90mm x 6.40mm) | - | 0.087" (2.20mm) | - | - |
-2.3.jpg)
|
CGA9M1X7S3D472K200KACAP CER 4700PF 2KV X7S 2220 |
465 |
|
Datasheet |
CGA | Tape & Reel (TR) | Not For New Designs | 4700 pF | ±10% | 2000V (2kV) | X7S | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.087" (2.20mm) | - | - |
|
|
C2220C334JBRACTUCAP CER 0.33UF 630V X7R 2220 |
450 |
|
Datasheet |
SMD Comm X7R HV | Tape & Reel (TR) | Active | 0.33 µF | ±5% | 630V | X7R | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.106" (2.70mm) | - | - |
-2,54.jpg)
|
1825GC153KAZ2ACAP CER 0.015UF 2KV X7R 1825 |
1,270 |
|
Datasheet |
FLEXITERM® | Tape & Reel (TR) | Active | 0.015 µF | ±10% | 2000V (2kV) | X7R | -55°C ~ 125°C | Soft Termination, High Voltage | - | SMPS Filtering, Boardflex Sensitive | - | Surface Mount, MLCC | 1825 (4564 Metric) | 0.181" L x 0.248" W (4.60mm x 6.30mm) | - | 0.134" (3.40mm) | - | - |
-3,20x1,60x1,10mm.jpg)
|
C1206C562F5GACAUTOCAP CER 5600PF 50V C0G/NP0 1206 |
821 |
|
Datasheet |
SMD Auto C0G | Tape & Reel (TR) | Active | 5600 pF | ±1% | 50V | C0G, NP0 | -55°C ~ 125°C | Low ESL | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.043" (1.10mm) | - | - |
|
|
GCM32E5C3A223FX0AKCAP CER 0.022UF 1KV C0G/NP0 1210 |
3,776 |
|
Datasheet |
GCM | Tape & Reel (TR) | Active | 0.022 µF | ±1% | 1000V (1kV) | C0G, NP0 | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.112" (2.85mm) | - | - |
|
|
C2220C105K2RACTUCAP CER 1UF 200V X7R 2220 |
3,007 |
|
Datasheet |
SMD Comm X7R | Tape & Reel (TR) | Active | 1 µF | ±10% | 200V | X7R | -55°C ~ 125°C | - | - | Bypass, Decoupling | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.065" (1.65mm) | - | - |
|
CKG32KC0G3A472J335AHCAP CER 4700PF 1KV C0G SMD |
1,239 |
|
Datasheet |
MEGACAP, CKG | Tape & Reel (TR) | Active | 4700 pF | ±5% | 1000V (1kV) | C0G, NP0 | -55°C ~ 125°C | Low ESL, High Voltage | - | SMPS Filtering, Bypass, Decoupling | - | Surface Mount, MLCC | SMD, J-Lead | 0.142" L x 0.102" W (3.60mm x 2.60mm) | - | 0.136" (3.45mm) | - | J-Lead |
|
KCA55L7UMF102KL01LCAP CER 1000PF 250V U2J SMD |
664 |
|
Datasheet |
KCA | Tape & Reel (TR) | Active | 1000 pF | ±10% | 250V | U2J | -55°C ~ 125°C | - | AEC-Q200, X1, Y2 | Safety, Automotive | - | Surface Mount, MLCC | SMD, J-Lead | 0.240" L x 0.201" W (6.10mm x 5.10mm) | - | 0.118" (3.00mm) | - | J-Lead |
|
|
CGA9M1X7S3D472M200KACAP CER 4700PF 2KV X7S 2220 |
543 |
|
Datasheet |
CGA | Tape & Reel (TR) | Not For New Designs | 4700 pF | ±20% | 2000V (2kV) | X7S | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.091" (2.30mm) | - | - |
-2,20mm-GCM-Series.jpg)
|
GCM32DR71H335KA55LCAP CER 3.3UF 50V X7R 1210 |
2,444 |
|
Datasheet |
GCM | Tape & Reel (TR) | Not For New Designs | 3.3 µF | ±10% | 50V | X7R | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.087" (2.20mm) | - | - |
|
|
CGA9N4NP02E154J230KNCAP CER 0.15UF 250V NP0 2220 |
1,950 |
|
Datasheet |
CGA | Tape & Reel (TR) | Active | 0.15 µF | ±5% | 250V | C0G, NP0 | -55°C ~ 150°C | High Temperature | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.098" (2.50mm) | - | - |
|
C340C335M5U5TACAP CER 3.3UF 50V Z5U RADIAL |
1,283 |
|
Datasheet |
GoldMax 300 Comm Z5U | Bulk | Active | 3.3 µF | ±20% | 50V | Z5U | 10°C ~ 85°C | - | - | General Purpose | - | Through Hole | Radial | 0.290" L x 0.160" W (7.36mm x 4.07mm) | 0.500" (12.70mm) | - | 0.200" (5.08mm) | Straight |
|
CAS26C102KARFCCAP CER 1000PF 250VAC X7R 2211 |
920 |
|
Datasheet |
CAS SMD SFTY 250 | Tape & Reel (TR) | Active | 1000 pF | ±10% | 250VAC | X7R | -55°C ~ 125°C | - | X1, Y2 | Safety | - | Surface Mount, MLCC | 2211 (5728 Metric) | 0.224" L x 0.110" W (5.70mm x 2.80mm) | - | 0.110" (2.80mm) | - | - |
|

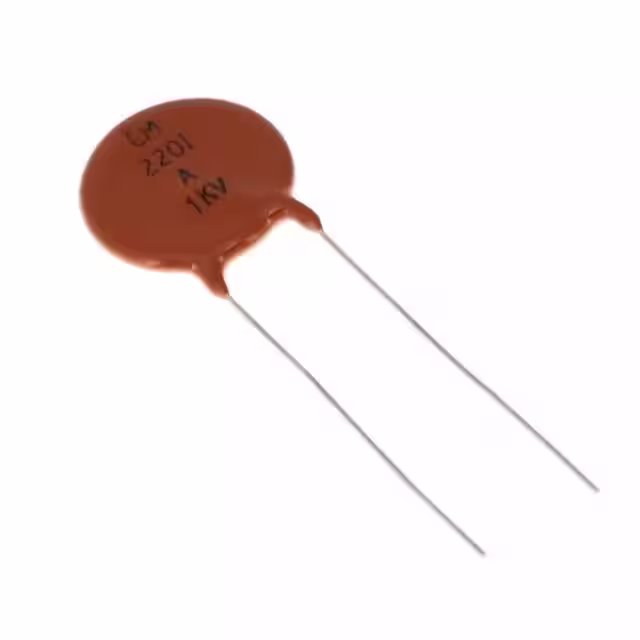

561R10TCCT22CAP CER 220PF 1KV NP0 RADIAL |
192 |
|
Datasheet |
Cera-Mite 561R | Bulk | Active | 220 pF | ±5% | 1000V (1kV) | C0G, NP0 | -55°C ~ 105°C | Low Dissipation Factor | - | General Purpose | - | Through Hole | Radial, Disc | 0.760" Dia (19.30mm) | 0.878" (22.30mm) | - | - | Straight |
-4,50x3,20x2,7mm.jpg)
|
C1812C333JBGACAUTOCAP CER 0.033UF 630V C0G 1812 |
17,192 |
|
Datasheet |
SMD Auto C0G HV | Tape & Reel (TR) | Active | 0.033 µF | ±5% | 630V | C0G, NP0 | -55°C ~ 125°C | Low ESL, High Voltage | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.087" (2.20mm) | - | - |
 2.5.jpg)
|
CGA6P1X8R1E106M250AECAP CER 10UF 25V X8R 1210 |
2,520 |
|
Datasheet |
CGA | Tape & Reel (TR) | Active | 10 µF | ±20% | 25V | X8R | -55°C ~ 150°C | Soft Termination, High Temperature | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.110" (2.80mm) | - | - |
|
C1812X304KBRLCAUTOCAP CER 0.3UF 630V X7R 1812 |
941 |
|
Datasheet |
KONNEKT Auto X7R | Tape & Reel (TR) | Active | 0.3 µF | ±10% | 630V | X7R | -55°C ~ 125°C | Low ESL (Stacked), Soft Termination, High Voltage | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.154" (3.90mm) | - | - |
|
|
KCA55L7UMF152KL01LCAP CER 1500PF 250V U2J SMD |
508 |
|
Datasheet |
KCA | Tape & Reel (TR) | Active | 1500 pF | ±10% | 250V | U2J | -55°C ~ 125°C | - | AEC-Q200, X1, Y2 | Safety, Automotive | - | Surface Mount, MLCC | SMD, J-Lead | 0.240" L x 0.201" W (6.10mm x 5.10mm) | - | 0.118" (3.00mm) | - | J-Lead |
|
C330C103JBG5TACAP CER 10000PF 630V C0G/NP0 RAD |
203 |
|
Datasheet |
GoldMax 300 Comm C0G HV | Bulk | Active | 10000 pF | ±5% | 630V | C0G, NP0 | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Through Hole | Radial | 0.300" L x 0.200" W (7.62mm x 5.08mm) | 0.420" (10.66mm) | - | 0.200" (5.08mm) | Straight |
