Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KTJ251B225M55BFT00CAP CER 2.2UF 250V X7R SMD |
5,310 |
|
Datasheet |
KTJ, NTJ | Tape & Reel (TR) | Active | 2.2 µF | ±20% | 250V | X7R | -55°C ~ 125°C | Low ESL (Stacked) | - | Bypass, Decoupling | - | Surface Mount, MLCC | Stacked SMD, 2 J-Lead | 0.236" L x 0.209" W (6.00mm x 5.30mm) | - | 0.217" (5.50mm) | - | J-Lead |
-2,54.jpg)
|
1825HC103KAT2ACAP CER 10000PF 3KV X7R 1825 |
1,190 |
|
Datasheet |
KGM - HV | Tape & Reel (TR) | Active | 10000 pF | ±10% | 3000V (3kV) | X7R | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1825 (4564 Metric) | 0.181" L x 0.248" W (4.60mm x 6.30mm) | - | 0.110" (2.80mm) | - | - |
|
C1812X664KCRLCAUTOCAP CER 0.66UF 500V X7R 1812 |
245 |
|
Datasheet |
KONNEKT Auto X7R | Tape & Reel (TR) | Active | 0.66 µF | ±10% | 500V | X7R | -55°C ~ 125°C | Low ESL (Stacked), Soft Termination, High Voltage | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.177" (4.50mm) | - | - |
|

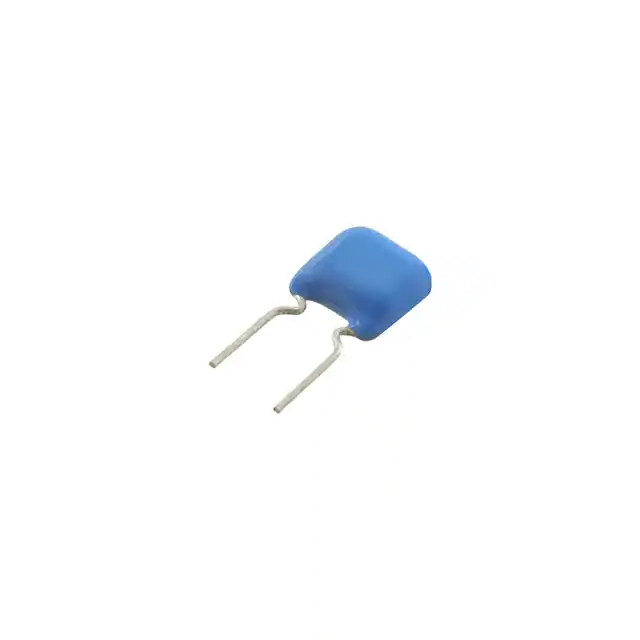

FG23X7R2A335KNT00CAP CER 3.3UF 100V X7R RADIAL |
149 |
|
Datasheet |
FG | Bulk | Active | 3.3 µF | ±10% | 100V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.335" L x 0.217" W (8.50mm x 5.50mm) | 0.433" (11.00mm) | - | 0.197" (5.00mm) | Formed Leads - Kinked |
|
VJ1210Y473KXGAT5ZCAP CER 0.047UF 1KV X7R 1210 |
5,655 |
|
Datasheet |
VJ HVArc Guard™ | Tape & Reel (TR) | Active | 0.047 µF | ±10% | 1000V (1kV) | X7R | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.067" (1.70mm) | - | - |
|
ES2211N100K502NTMCAP CER 10PF 250VAC C0G/NP0 2211 |
2,797 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | 10 pF | ±10% | 250VAC | C0G, NP0 | -55°C ~ 125°C | - | X1, Y2 | Safety | - | Surface Mount, MLCC | 2211 (5728 Metric) | 0.220" L x 0.110" W (5.58mm x 2.79mm) | - | 0.110" (2.79mm) | - | - |
|
CAN21C104JAGACTUCAP CER 0.1UF 250V C0G/NP0 2220 |
674 |
|
Datasheet |
CAN SMD Indust 250 | Tape & Reel (TR) | Active | 0.1 µF | ±5% | 250VAC | C0G, NP0 | -55°C ~ 125°C | Low ESL, Low ESR | - | General Purpose | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.106" (2.70mm) | - | - |
|

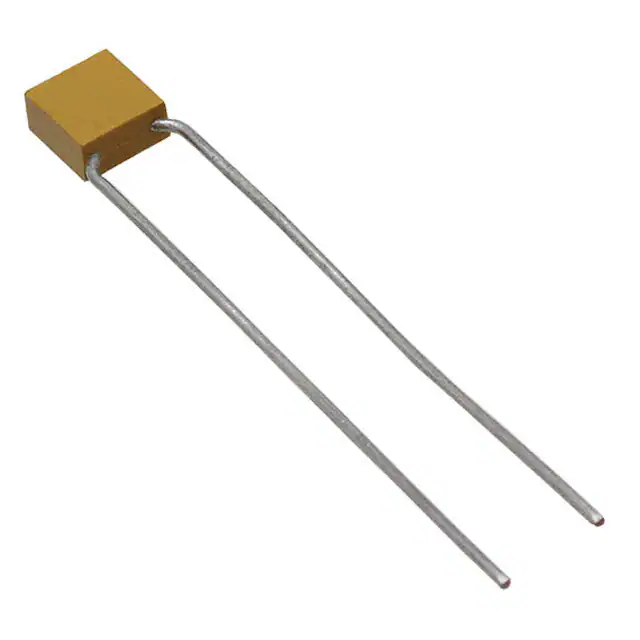

CCR05CG102JRCAP CER 1000PF 100V 5% RADIAL |
426 |
|
Datasheet |
Military, MIL-PRF-20, CCR05 | Bulk | Active | 1000 pF | ±5% | 100V | C0G, NP0 | -55°C ~ 125°C | - | - | High Reliability | R (0.01%) | Through Hole | Radial | 0.190" L x 0.090" W (4.83mm x 2.29mm) | 0.200" (5.08mm) | - | 0.200" (5.08mm) | Formed Leads |
-4,50x3,20x2,7mm.jpg)
|
C1812C106K3RACAUTOCAP CER 10UF 25V X7R 1812 |
397 |
|
Datasheet |
SMD Auto X7R | Tape & Reel (TR) | Active | 10 µF | ±10% | 25V | X7R | -55°C ~ 125°C | - | AEC-Q200 | Automotive, Bypass, Decoupling | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.071" (1.80mm) | - | - |
|
|
C2225C153KHRACTUCAP CER 0.015UF 3KV X7R 2225 |
1,206 |
|
Datasheet |
SMD Comm X7R HV | Tape & Reel (TR) | Active | 0.015 µF | ±10% | 3000V (3kV) | X7R | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Surface Mount, MLCC | 2225 (5763 Metric) | 0.220" L x 0.252" W (5.60mm x 6.40mm) | - | 0.106" (2.70mm) | - | - |
|
KCA55L7UMF471KL01LCAP CER 470PF 250V U2J SMD |
1,200 |
|
Datasheet |
KCA | Tape & Reel (TR) | Active | 470 pF | ±10% | 250V | U2J | -55°C ~ 125°C | - | AEC-Q200, X1, Y2 | Safety, Automotive | - | Surface Mount, MLCC | SMD, J-Lead | 0.240" L x 0.201" W (6.10mm x 5.10mm) | - | 0.118" (3.00mm) | - | J-Lead |
-2,00x1,20x1,00mm.jpg)
|
C0805C473F3GACAUTOCAP CER 0.047UF 25V C0G/NP0 0805 |
1,600 |
|
Datasheet |
SMD Auto C0G | Tape & Reel (TR) | Active | 0.047 µF | ±1% | 25V | C0G, NP0 | -55°C ~ 125°C | Low ESL | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | 0.055" (1.40mm) | - | - |
-2,70mm-C-Series.jpg)
|
C5750X7T2J334K200KCCAP CER 0.33UF 630V X7T 2220 |
700 |
|
Datasheet |
C | Tape & Reel (TR) | Not For New Designs | 0.33 µF | ±10% | 630V | X7T | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.087" (2.20mm) | - | - |
|
|
C5750X7T2W105M250KACAP CER 1UF 450V X7T 2220 |
490 |
|
Datasheet |
C | Tape & Reel (TR) | Not For New Designs | 1 µF | ±20% | 450V | X7T | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.110" (2.80mm) | - | - |
|
FG23X7R1C476MRT00CAP CER 47UF 16V X7R RADIAL |
183 |
|
Datasheet |
FG | Bulk | Active | 47 µF | ±20% | 16V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.335" L x 0.217" W (8.50mm x 5.50mm) | 0.433" (11.00mm) | - | 0.197" (5.00mm) | Formed Leads - Kinked |
|
C340C154K2R5TACAP CER 0.15UF 200V X7R RADIAL |
192 |
|
Datasheet |
GoldMax 300 Comm X7R | Bulk | Active | 0.15 µF | ±10% | 200V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.290" L x 0.160" W (7.36mm x 4.07mm) | 0.400" (10.16mm) | - | 0.200" (5.08mm) | Formed Leads |
-1,27mm-M-Code.jpg)
|
12065A202FAT2ACAP CER 2000PF 50V NP0 1206 |
2,854 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 2000 pF | ±1% | 50V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.050" (1.27mm) | - | - |
-2,54mm-Tan.jpg)
|
1812JA250331JKTSYXCAP CER 330PF 250VAC C0GNP0 1812 |
796 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 330 pF | ±5% | 250VAC | C0G, NP0 (1B) | -55°C ~ 125°C | DC Annex H, Humidity 3B Annex I, High Voltage | AEC-Q200, X1, Y2 | Safety, Automotive | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.195" L x 0.126" W (4.95mm x 3.20mm) | - | 0.059" (1.50mm) | - | - |
|
C1812C664KCRLCAUTOCAP CER 0.66UF 500V X7R 1812 |
239 |
|
Datasheet |
KONNEKT Auto X7R | Tape & Reel (TR) | Active | 0.66 µF | ±10% | 500V | X7R | -55°C ~ 125°C | Low ESL (Stacked), High Voltage | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.185" (4.70mm) | - | - |
|
|
C1812X665K1RLCAUTOCAP CER 6.6UF 100V X7R 1812 |
113 |
|
Datasheet |
KONNEKT Auto X7R | Tape & Reel (TR) | Active | 6.6 µF | ±10% | 100V | X7R | -55°C ~ 125°C | Low ESL (Stacked), Soft Termination | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.169" (4.30mm) | - | - |
