Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M39014/01-1311CAP CER 470PF 200V 10% RADIAL |
251 |
|
Datasheet |
Military, MIL-PRF-39014, CKR05 | Bag | Active | 470 pF | ±10% | 200V | BX | -55°C ~ 125°C | - | - | High Reliability | R (0.01%) | Through Hole | Radial | 0.190" L x 0.090" W (4.83mm x 2.29mm) | 0.200" (5.08mm) | - | 0.200" (5.08mm) | Formed Leads |
.jpg)
|
100B1R5CT500XT1KCAP CER 1.5PF 500V P90 1111 |
1,945 |
|
Datasheet |
Porcelain Superchip® ATC 100B | Tape & Reel (TR) | Active | 1.5 pF | ±0.25pF | 500V | P90 | -55°C ~ 125°C | High Q, Low Loss, Low ESL | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 1111 (2828 Metric) | 0.110" L x 0.110" W (2.79mm x 2.79mm) | - | 0.102" (2.59mm) | - | - |
|
C1812C944J5JLC7805CAP CER 0.94UF 50V U2J 1812 |
162 |
|
Datasheet |
KONNEKT Comm U2J | Tape & Reel (TR) | Active | 0.94 µF | ±5% | 50V | U2J | -55°C ~ 125°C | Low ESL (Stacked) | - | General Purpose | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.154" (3.90mm) | - | - |
|
C1210C106M5R2C7186CAP CER 10UF 50V X7R SMD |
2,507 |
|
Datasheet |
KPS SMD Comm X7R | Tape & Reel (TR) | Active | 10 µF | ±20% | 50V | X7R | -55°C ~ 125°C | Low ESL (Stacked) | - | Boardflex Sensitive | - | Surface Mount, MLCC | Stacked SMD, 2 J-Lead | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.248" (6.30mm) | - | J-Lead |
|
C1206C154F3JACTUCAP CER 0.15UF 25V U2J 1206 |
5,434 |
|
Datasheet |
SMD Comm U2J | Tape & Reel (TR) | Active | 0.15 µF | ±1% | 25V | U2J | -55°C ~ 125°C | Low ESL, Low Dissipation Factor | - | General Purpose | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.035" (0.88mm) | - | - |
-2,54mm-Tan.jpg)
|
2220YA250102KJTSYXCAP CER 1000PF 250VAC X7R 2220 |
2,691 |
|
Datasheet |
FlexiCap™ | Tape & Reel (TR) | Active | 1000 pF | ±10% | 250VAC | X7R | -55°C ~ 125°C | DC Annex H, Humidity 3B Annex I, Soft Termination, High Voltage | X1, Y2 | Safety, Boardflex Sensitive | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.079" (2.00mm) | - | - |
-1,55mm-Tan.jpg)
|
C08BL242X-5ZN-X0BCAP CER 2400PF 50V 0805 |
2,151 |
|
Datasheet |
- | Bulk | Active | 2400 pF | - | 50V | - | -55°C ~ 125°C | - | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 0805 (2012 Metric) | 0.081" L x 0.051" W (2.06mm x 1.30mm) | - | 0.030" (0.76mm) | - | - |
|
CKC18C822JDGACAUTOCAP CER 8.2NF 1000V C0G 1812 |
500 |
|
Datasheet |
KC Link Auto C0G | Tape & Reel (TR) | Active | 8200 pF | ±5% | 1000V (1kV) | C0G, NP0 | -55°C ~ 150°C | Low ESL, High Voltage, High Temperature | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.071" (1.80mm) | - | - |
|
|
C2220X562JFGACTUCAP CER 5600PF 1.5KV NP0 2220 |
3,000 |
|
Datasheet |
SMD Comm C0G HV Flex | Tape & Reel (TR) | Active | 5600 pF | ±5% | 1500V (1.5kV) | C0G, NP0 | -55°C ~ 125°C | Low ESL, Soft Termination, High Voltage | - | Boardflex Sensitive | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.106" (2.70mm) | - | - |
|
CK06BX473KCAP CER 0.047UF 100V BX RADIAL |
1,130 |
|
Datasheet |
Military, MIL-C-11015, CK06 | Bulk | Active | 0.047 µF | ±10% | 100V | BX | -55°C ~ 125°C | - | - | High Reliability | - | Through Hole | Radial | 0.290" L x 0.090" W (7.37mm x 2.29mm) | 0.300" (7.62mm) | - | 0.200" (5.08mm) | Straight |
|
VJ2220A472KBEAT4XCAP CER 4700PF 500V C0G/NP0 2220 |
2,899 |
|
Datasheet |
VJ OMD | Tape & Reel (TR) | Active | 4700 pF | ±10% | 500V | C0G, NP0 | -55°C ~ 125°C | Open Mode, Soft Termination | - | SMPS Filtering, Boardflex Sensitive | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.226" L x 0.200" W (5.74mm x 5.08mm) | - | 0.086" (2.18mm) | - | - |
|
CK06BX684KCAP CER 0.68UF 50V 10% RADIAL |
500 |
|
Datasheet |
Military, MIL-C-11015, CK06 | Bag | Active | 0.68 µF | ±10% | 50V | BX | -55°C ~ 125°C | - | - | High Reliability | - | Through Hole | Radial | 0.290" L x 0.090" W (7.37mm x 2.29mm) | 0.300" (7.62mm) | - | 0.200" (5.08mm) | Straight |
|
C2220X334KBRACAUTOCAP CER 0.33UF 630V X7R 2220 |
6,790 |
|
Datasheet |
SMD Auto X7R HV Flex | Tape & Reel (TR) | Active | 0.33 µF | ±10% | 630V | X7R | -55°C ~ 125°C | Soft Termination, High Voltage | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.232" L x 0.197" W (5.90mm x 5.00mm) | - | 0.106" (2.70mm) | - | - |
|
SR505E475MARCAP CER 4.7UF 50V Z5U RADIAL |
425 |
|
Datasheet |
SkyCap® SR | Bulk | Active | 4.7 µF | ±20% | 50V | Z5U | 10°C ~ 85°C | - | - | General Purpose | - | Through Hole | Radial | 0.500" L x 0.200" W (12.70mm x 5.08mm) | 0.500" (12.70mm) | - | 0.400" (10.16mm) | Straight |
-1,80mm-C-Series.jpg)
|
C1825C102JZGAC7800CAP CER 1000PF 2.5KV NP0 1825 |
1,648 |
|
Datasheet |
SMD Comm C0G HV | Tape & Reel (TR) | Active | 1000 pF | ±5% | 2500V (2.5kV) | C0G, NP0 | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1825 (4564 Metric) | 0.177" L x 0.252" W (4.50mm x 6.40mm) | - | 0.071" (1.80mm) | - | - |
-4,2mm-Tan.jpg)
|
2220Y5000334KXTCAP CER 0.33UF 500V X7R 2220 |
1,056 |
|
Datasheet |
FlexiCap™ | Tape & Reel (TR) | Active | 0.33 µF | ±10% | 500V | X7R | -55°C ~ 125°C | Soft Termination | - | Boardflex Sensitive | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.165" (4.20mm) | - | - |
|
FA23X7R2E105KNU06CAP CER 1UF 250V X7R RAD |
562 |
|
Datasheet |
FA | Cut Tape (CT) | Active | 1 µF | ±10% | 250V | X7R | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Through Hole | Radial | 0.335" L x 0.217" W (8.50mm x 5.50mm) | 0.433" (11.00mm) | - | 0.197" (5.00mm) | Formed Leads - Kinked |
|

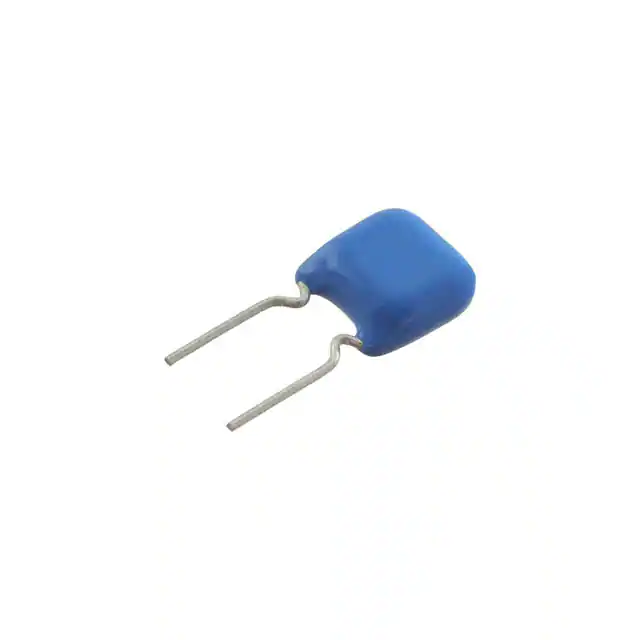

FA23X7R1H106KRU00CAP CER 10UF 50V X7R RADIAL |
474 |
|
Datasheet |
FA | Bulk | Active | 10 µF | ±10% | 50V | X7R | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Through Hole | Radial | 0.335" L x 0.217" W (8.50mm x 5.50mm) | 0.433" (11.00mm) | - | 0.197" (5.00mm) | Formed Leads - Kinked |
|
|
2220YA250222KJTSYXCAP CER 2200PF 250VAC X7R 2220 |
999 |
|
Datasheet |
FlexiCap™ | Tape & Reel (TR) | Active | 2200 pF | ±10% | 250VAC | X7R | -55°C ~ 125°C | DC Annex H, Humidity 3B Annex I, Soft Termination, High Voltage | X1, Y2 | Safety, Boardflex Sensitive | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.079" (2.00mm) | - | - |
|
|
1812JA250471JKTSYXCAP CER 470PF 250VAC C0GNP0 1812 |
1,057 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 470 pF | ±5% | 250VAC | C0G, NP0 (1B) | -55°C ~ 125°C | DC Annex H, Humidity 3B Annex I, High Voltage | AEC-Q200, X1, Y2 | Safety, Automotive | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.195" L x 0.126" W (4.95mm x 3.20mm) | - | 0.079" (2.00mm) | - | - |
