Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
-2.2.jpg)
|
CGA8M4C0G2J333J200KECAP CER .033UF 630V C0G/NP0 1812 |
5,028 |
|
Datasheet |
CGA | Tape & Reel (TR) | Active | 0.033 µF | ±5% | 630V | C0G, NP0 | -55°C ~ 125°C | Soft Termination | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.091" (2.30mm) | - | - |
-2.3.jpg)
|
CGA9M3X7T2E155M200KACAP CER 1.5UF 250V X7T 2220 |
818 |
|
Datasheet |
CGA | Tape & Reel (TR) | Active | 1.5 µF | ±20% | 250V | X7T | -55°C ~ 125°C | - | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.087" (2.20mm) | - | - |

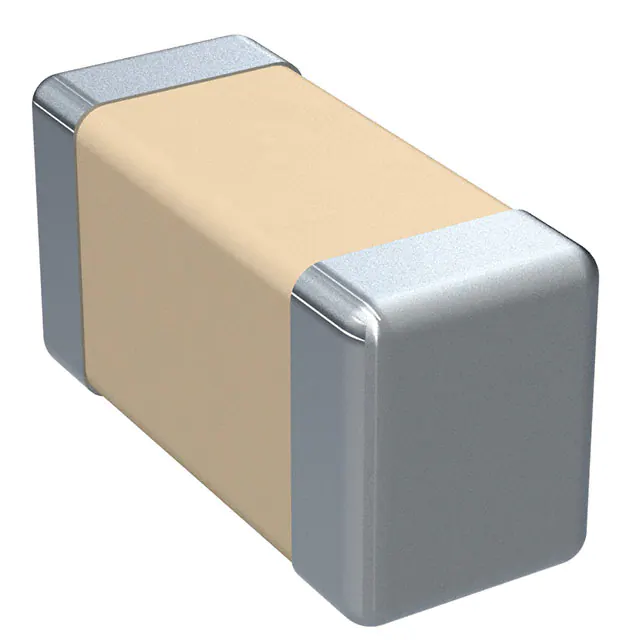

-1,60x0,81x0,99mm.jpg)
|
M3253503E1B101JZMBTRCAP CER 100PF 100V C0G/NP0 0603 |
228 |
|
Datasheet |
Military, MIL-PRF-32535 | Tape & Reel (TR) | Active | 100 pF | ±5% | 100V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | High Reliability | M (1%) | Surface Mount, MLCC | 0603 (1608 Metric) | 0.063" L x 0.032" W (1.60mm x 0.81mm) | - | 0.039" (0.99mm) | - | - |
-2,70mm-C-Series.jpg)
|
C5750X7S3A473K250KACAP CER 0.047UF 1KV X7S 2220 |
224 |
|
Datasheet |
C | Tape & Reel (TR) | Active | 0.047 µF | ±10% | 1000V (1kV) | X7S | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.110" (2.80mm) | - | - |
.JPG)
|
HV1825Y471KX6ATHVCAP CER 470 PF 6KV X7R 1825 |
2,134 |
|
Datasheet |
HV | Tape & Reel (TR) | Active | 470 pF | ±10% | 6000V (6kV) | X7R | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1825 (4564 Metric) | 0.177" L x 0.252" W (4.50mm x 6.40mm) | - | 0.106" (2.70mm) | - | - |
-4,2mm-Tan.jpg)
|
2220J1K00682KCTCAP CER 6800PF 1KV C0G/NP0 2220 |
1,451 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 6800 pF | ±10% | 1000V (1kV) | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.160" (4.06mm) | - | - |
.JPG)
|
HV2220Y472KXHATHVCAP CER 4700PF 3KV X7R 2220 |
2,859 |
|
Datasheet |
HV | Tape & Reel (TR) | Active | 4700 pF | ±10% | 3000V (3kV) | X7R | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.220" L x 0.200" W (5.59mm x 5.08mm) | - | 0.106" (2.70mm) | - | - |
|
|
2220Y1K00223KSTCAP CER 0.022UF 1KV X7R 2220 |
823 |
|
Datasheet |
FlexiCap™ | Tape & Reel (TR) | Active | 0.022 µF | ±10% | 1000V (1kV) | X7R | -55°C ~ 125°C | Soft Termination | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.165" (4.20mm) | - | - |
|
CKC21C682JEGACAUTOCAP CER 6800PF 1.2KV C0G 2220 |
392 |
|
Datasheet |
KC Link Auto C0G | Tape & Reel (TR) | Active | 6800 pF | ±5% | 1200V (1.2kV) | C0G, NP0 | -55°C ~ 150°C | Low ESL, High Voltage, High Temperature | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.106" (2.70mm) | - | - |
-4,50x6,40x1,55mm.jpg)
|
C1825C681JHGAC7800CAP CER 680PF 3000V C0G/NP0 1825 |
170 |
|
Datasheet |
SMD Comm C0G HV | Tape & Reel (TR) | Active | 680 pF | ±5% | 3000V (3kV) | C0G, NP0 | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Surface Mount, MLCC | 1825 (4564 Metric) | 0.177" L x 0.252" W (4.50mm x 6.40mm) | - | 0.106" (2.70mm) | - | - |
,-4-PC-Pad.jpg)
|
1206Y0500224MXTE03CAP CER 0.22UF 50V X7R 1206 |
9,129 |
|
Datasheet |
FlexiCap™ | Tape & Reel (TR) | Active | 0.22 µF | ±20% | 50V | X7R | -55°C ~ 125°C | Low ESL (X2Y), Soft Termination | - | Bypass, Decoupling, Boardflex Sensitive | - | Surface Mount, MLCC | 1206 (3216 Metric) | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.051" (1.30mm) | - | - |
|
CKG32KC0G3A223J335AHCAP CER 0.022UF 1KV C0G SMD |
3,075 |
|
Datasheet |
MEGACAP, CKG | Tape & Reel (TR) | Active | 0.022 µF | ±5% | 1000V (1kV) | C0G, NP0 | -55°C ~ 125°C | Low ESL, High Voltage | - | SMPS Filtering, Bypass, Decoupling | - | Surface Mount, MLCC | SMD, J-Lead | 0.142" L x 0.102" W (3.60mm x 2.60mm) | - | 0.136" (3.45mm) | - | J-Lead |
-2,28mm.jpg)
|
22203C226MAT2ACAP CER 22UF 25V X7R 2220 |
337 |
|
Datasheet |
KGM - X7R | Tape & Reel (TR) | Active | 22 µF | ±20% | 25V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.130" (3.30mm) | - | - |
-2.8.jpg)
|
CGA9N4C0G2E154J230KECAP CER 0.15UF 250V C0G/NP0 2220 |
160 |
|
Datasheet |
CGA | Tape & Reel (TR) | Active | 0.15 µF | ±5% | 250V | C0G, NP0 | -55°C ~ 125°C | Soft Termination | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.102" (2.60mm) | - | - |
|
|
HV2220Y682KXHATHVCAP CER 6800PF 3KV X7R 2220 |
2,004 |
|
Datasheet |
HV | Tape & Reel (TR) | Active | 6800 pF | ±10% | 3000V (3kV) | X7R | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.220" L x 0.200" W (5.59mm x 5.08mm) | - | 0.106" (2.70mm) | - | - |
-2,54mm-Tan.jpg)
|
2211YA250102KETSPUCAP CER 1000PF 250V X7R 2211 |
5,694 |
|
- |
FlexiCap™ | Tape & Reel (TR) | Not For New Designs | 1000 pF | ±10% | 250V | X7R | -55°C ~ 125°C | Soft Termination | AEC-Q200, X1, Y2 | Safety, Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 2211 (5728 Metric) | 0.224" L x 0.110" W (5.70mm x 2.80mm) | - | 0.100" (2.54mm) | - | - |
|
CKC18C562JDGACAUTOCAP CER 5.6NF 1000V C0G 1812 |
1,095 |
|
Datasheet |
KC Link Auto C0G | Tape & Reel (TR) | Active | 5600 pF | ±5% | 1000V (1kV) | C0G, NP0 | -55°C ~ 150°C | Low ESL, High Voltage, High Temperature | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.055" (1.40mm) | - | - |
|
|
2220YA250222KSTU16CASE SIZE 2220 - FLEXICAP - 250V |
1,430 |
|
Datasheet |
FlexiCap™ | Tape & Reel (TR) | Not For New Designs | 2200 pF | ±10% | 250VAC | X7R | -55°C ~ 125°C | Soft Termination | AEC-Q200, X1, X2, Y2 | Safety, Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.098" (2.50mm) | - | - |
|
C2225C104KCRACTUCAP CER 0.1UF 500V X7R 2225 |
1,176 |
|
Datasheet |
SMD Comm X7R HV | Tape & Reel (TR) | Active | 0.1 µF | ±10% | 500V | X7R | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Surface Mount, MLCC | 2225 (5763 Metric) | 0.220" L x 0.252" W (5.60mm x 6.40mm) | - | 0.061" (1.55mm) | - | - |
|
KCM55QR71E226KH01KCAP CER 22UF 25V X7R SMD |
328 |
|
Datasheet |
KCM | Tape & Reel (TR) | Active | 22 µF | ±10% | 25V | X7R | -55°C ~ 125°C | - | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | SMD, J-Lead | 0.240" L x 0.209" W (6.10mm x 5.30mm) | - | 0.154" (3.90mm) | - | J-Lead |
