Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
-5,60x6,40x1,80mm.jpg)
|
C2225C222KHRACAUTOCAP CER X7R 2225 2200PF 10% 3000 |
965 |
|
Datasheet |
SMD Auto X7R HV | Tape & Reel (TR) | Active | 2200 pF | ±10% | 3000V (3kV) | X7R | -55°C ~ 125°C | Low ESL, High Voltage | AEC-Q200 | Automotive, Bypass, Decoupling | - | Surface Mount, MLCC | 2225 (5763 Metric) | 0.220" L x 0.252" W (5.60mm x 6.40mm) | - | 0.071" (1.80mm) | - | - |
|
SR751C105KARCAP CER RADIAL |
1,974 |
|
Datasheet |
SkyCap® SR | Bulk | Active | 1 µF | ±10% | 100V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.400" L x 0.150" W (10.16mm x 3.81mm) | 0.460" (11.68mm) | - | 0.200" (5.08mm) | Straight |
.jpg)
|
100B390GW500XTCAP CER 39PF 500V P90 1111 |
625 |
|
Datasheet |
Porcelain Superchip® ATC 100B | Tape & Reel (TR) | Active | 39 pF | ±2% | 500V | P90 | -55°C ~ 125°C | High Q, Low Loss, Low ESL | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 1111 (2828 Metric) | 0.110" L x 0.110" W (2.79mm x 2.79mm) | - | 0.102" (2.59mm) | - | - |
,-4-PC-Pad.jpg)
|

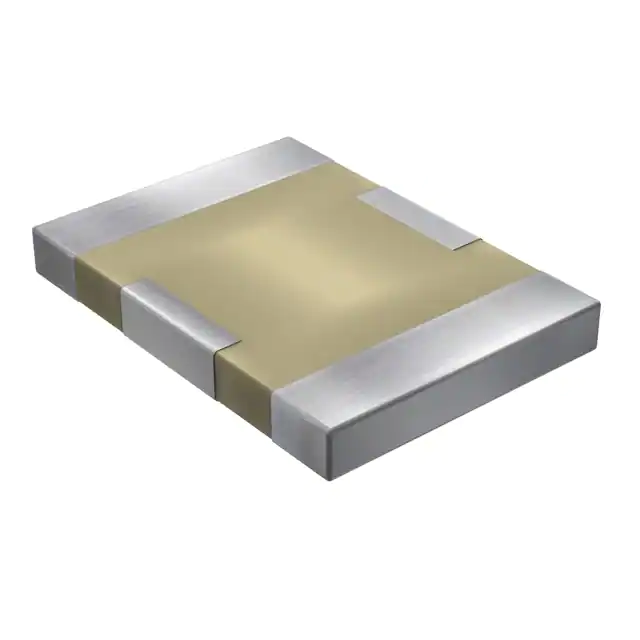

1812Y1000104METE03CAP CER 0.1UF 100V X7R 1812 |
323 |
|
Datasheet |
FlexiCap™ | Tape & Reel (TR) | Active | 0.1 µF | ±20% | 100V | X7R | -55°C ~ 125°C | Low ESL (X2Y), Soft Termination | AEC-Q200 | Automotive, Bypass, Decoupling, Boardflex Sensitive | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.030" (0.75mm) | - | - |
-2,54.jpg)
|
1825SC333KAZ2ACAP CER 0.033UF 1.5KV X7R 1825 |
580 |
|
Datasheet |
FLEXITERM® | Tape & Reel (TR) | Active | 0.033 µF | ±10% | 1500V (1.5kV) | X7R | -55°C ~ 125°C | Soft Termination, High Voltage | - | SMPS Filtering, Boardflex Sensitive | - | Surface Mount, MLCC | 1825 (4564 Metric) | 0.177" L x 0.252" W (4.50mm x 6.40mm) | - | 0.080" (2.03mm) | - | - |
|

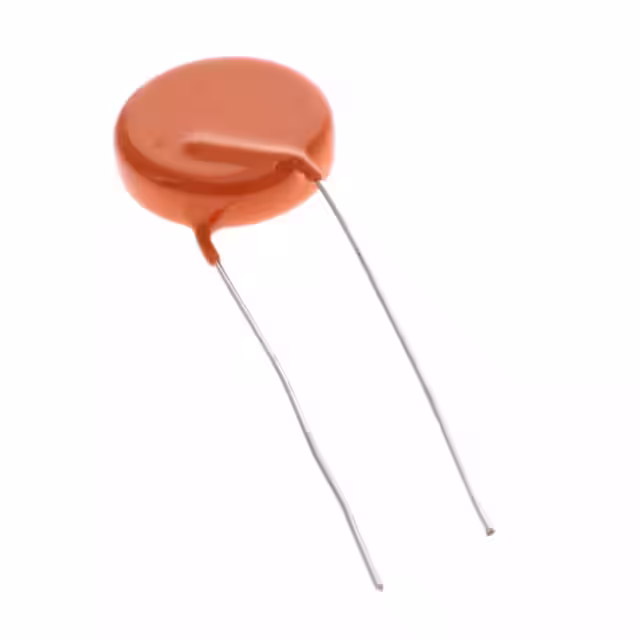

615R100GAD47CAP CER 4700PF 10KV RADIAL |
206 |
|
Datasheet |
Cera-Mite 615R | Bulk | Active | 4700 pF | -20%, +80% | 10000V (10kV) | - | -25°C ~ 105°C | High Voltage | - | SMPS Filtering | - | Through Hole | Radial, Disc | - | - | - | - | Straight |
-4,60x6,40x1,65mm.jpg)
|
C1825X104JBGACAUTOCAP CER 1825 0.1UF 630V C0G |
1,017 |
|
Datasheet |
SMD Auto C0G HV Flex | Tape & Reel (TR) | Active | 0.1 µF | ±5% | 630V | C0G, NP0 | -55°C ~ 125°C | Low ESL, Soft Termination, High Voltage | AEC-Q200 | Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 1825 (4564 Metric) | 0.181" L x 0.252" W (4.60mm x 6.40mm) | - | 0.106" (2.70mm) | - | - |
-1,79-mm-Tan.jpg)
|
111122K00330FQTCAP CER 33PF 2KV C0G/NP0 1111 |
2,050 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | 33 pF | ±1% | 2000V (2kV) | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Non-Magnetic | - | General Purpose | - | Surface Mount, MLCC | 1111 (2828 Metric) | 0.110" L x 0.110" W (2.79mm x 2.79mm) | - | 0.098" (2.50mm) | - | - |
|
|
100B240JW500XTCAP CER 24PF 500V P90 1111 |
1,256 |
|
Datasheet |
Porcelain Superchip® ATC 100B | Tape & Reel (TR) | Active | 24 pF | ±5% | 500V | P90 | -55°C ~ 125°C | High Q, Low Loss, Low ESL | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 1111 (2828 Metric) | 0.110" L x 0.110" W (2.79mm x 2.79mm) | - | 0.102" (2.59mm) | - | - |
|
|
100B330JW500XT1KCAP CER 33PF 500V P90 1111 |
4,355 |
|
Datasheet |
Porcelain Superchip® ATC 100B | Tape & Reel (TR) | Active | 33 pF | ±5% | 500V | P90 | -55°C ~ 125°C | High Q, Low Loss, Low ESL | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 1111 (2828 Metric) | 0.110" L x 0.110" W (2.79mm x 2.79mm) | - | 0.102" (2.59mm) | - | - |
|
|
800B3R3CT500XT1KCAP CER 3.3PF 500V NP0 1111 |
1,111 |
|
Datasheet |
ATC 800B | Tape & Reel (TR) | Active | 3.3 pF | ±0.25pF | 500V | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Ultra Low ESR | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 1111 (2828 Metric) | 0.110" L x 0.110" W (2.79mm x 2.79mm) | - | 0.070" (1.78mm) | - | - |
|
|
700B1R0BT500XT1KCAP CER 1PF 500V C0G/NP0 1111 |
694 |
|
Datasheet |
ATC 700B | Tape & Reel (TR) | Active | 1 pF | ±0.1pF | 500V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 1111 (2828 Metric) | 0.110" L x 0.110" W (2.79mm x 2.79mm) | - | 0.102" (2.59mm) | - | - |
|
|
615R100GAD10CAP CER 1000PF 10KV Y5R RADIAL |
1,166 |
|
Datasheet |
Cera-Mite 615R | Bulk | Active | 1000 pF | ±20% | 10000V (10kV) | Y5R | -25°C ~ 105°C | High Voltage | - | SMPS Filtering | - | Through Hole | Radial, Disc | 0.752" Dia (19.10mm) | 1.004" (25.50mm) | - | 0.500" (12.70mm) | Straight |
-2,54mm-Tan.jpg)
|
2220YA300333KSTS3XCAP CER 0.033UF 305VAC X7R 2220 |
947 |
|
Datasheet |
FlexiCap™ | Tape & Reel (TR) | Active | 0.033 µF | ±10% | 305VAC | X7R | -55°C ~ 125°C | DC Annex H, Humidity 3B Annex I, Soft Termination, High Voltage | AEC-Q200, X2 | Safety, Automotive, Boardflex Sensitive | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.128" (3.25mm) | - | - |
|
C2220C474MCR2CAUTOCAP CER 0.47UF 500V X7R 2220 |
386 |
|
Datasheet |
KPS SMD Auto X7R HV | Tape & Reel (TR) | Active | 0.47 µF | ±20% | 500V | X7R | -55°C ~ 125°C | Low ESL (Stacked), High Voltage | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.106" (2.70mm) | - | - |
|

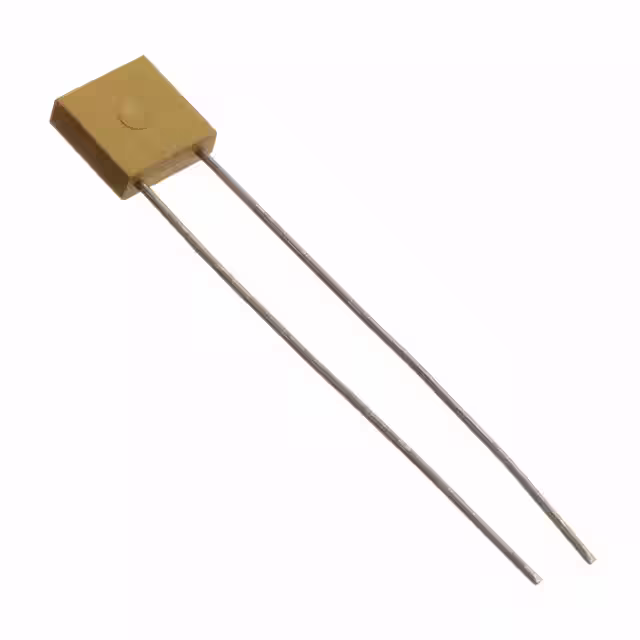

MR065C105KAACAP CER 1UF 50V X7R RADIAL |
824 |
|
Datasheet |
Ceralam® MR | Bulk | Active | 1 µF | ±10% | 50V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.290" L x 0.090" W (7.36mm x 2.28mm) | 0.290" (7.36mm) | - | 0.200" (5.08mm) | Straight |
|
MD025C224KABCAP CER 0.22UF 50V X7R 2-DIP |
113 |
|
Datasheet |
DIPGuard® MD | Tube | Active | 0.22 µF | ±10% | 50V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | 2-DIP | 0.260" L x 0.100" W (6.60mm x 2.54mm) | 0.200" (5.08mm) | - | 0.325" (8.25mm) | - |
|
C346C474KCR5TACAP CER 0.47UF 500V X7R RADIAL |
688 |
|
Datasheet |
GoldMax 300 Comm X7R HV | Bulk | Active | 0.47 µF | ±10% | 500V | X7R | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Through Hole | Radial | 0.400" L x 0.270" W (10.16mm x 6.85mm) | 0.589" (14.97mm) | - | 0.200" (5.08mm) | Formed Leads - Kinked |
-2,70mm-C-Serics.jpg)
|
C7563X7R1E476M230LECAP CER 47UF 25V X7R SMD |
10,855 |
|
Datasheet |
C | Tape & Reel (TR) | Active | 47 µF | ±20% | 25V | X7R | -55°C ~ 125°C | Soft Termination | - | Boardflex Sensitive | - | Surface Mount, MLCC | 3025 (7563 Metric) | 0.295" L x 0.248" W (7.50mm x 6.30mm) | - | 0.102" (2.60mm) | - | - |
|
CKG57NC0G2E304J500JHCAP CER 0.3UF 250V C0G/NP0 SMD |
1,943 |
|
Datasheet |
CKG | Tape & Reel (TR) | Active | 0.3 µF | ±5% | 250V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | SMPS Filtering, Boardflex Sensitive | - | Surface Mount, MLCC | Stacked SMD, 2 J-Lead | 0.236" L x 0.197" W (6.00mm x 5.00mm) | - | 0.217" (5.50mm) | - | J-Lead |
