Ceramic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | Temperature Coefficient | Operating Temperature | Features | Ratings | Applications | Failure Rate | Mounting Type | Package / Case | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing | Lead Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
800B100GT500XT1KCAP CER 10PF 500V NP0 1111 |
1,695 |
|
Datasheet |
ATC 800B | Tape & Reel (TR) | Active | 10 pF | ±2% | 500V | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Ultra Low ESR | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 1111 (2828 Metric) | 0.110" L x 0.110" W (2.79mm x 2.79mm) | - | 0.070" (1.78mm) | - | - |
|
C062C103F1G5CACAP CER 10000PF 100V C0G/NP0 RAD |
105 |
|
Datasheet |
LDD Comm C0G | Bulk | Active | 10000 pF | ±1% | 100V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | General Purpose | - | Through Hole | Radial | 0.290" L x 0.090" W (7.37mm x 2.29mm) | - | - | 0.200" (5.08mm) | Straight |
|
|
800B0R5BT500XT1KCAP CER 0.5PF 500V C0G/NP0 1111 |
7,743 |
|
Datasheet |
ATC 800B | Tape & Reel (TR) | Active | 0.5 pF | ±0.1pF | 500V | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Ultra Low ESR | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 1111 (2828 Metric) | 0.110" L x 0.110" W (2.79mm x 2.79mm) | - | 0.070" (1.78mm) | - | - |
|
|
800B5R6BT500XT1KCAP CER 5.6PF 500V C0G/NP0 1111 |
766 |
|
Datasheet |
ATC 800B | Tape & Reel (TR) | Active | 5.6 pF | ±0.1pF | 500V | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Ultra Low ESR | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 1111 (2828 Metric) | 0.110" L x 0.110" W (2.79mm x 2.79mm) | - | 0.070" (1.78mm) | - | - |
|
700B122JT50XTCAP CER 1200PF 50V C0G/NP0 1111 |
379 |
|
Datasheet |
ATC 700B | Tape & Reel (TR) | Active | 1200 pF | ±5% | 50V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 1111 (2828 Metric) | 0.110" L x 0.110" W (2.79mm x 2.79mm) | - | 0.102" (2.59mm) | - | - |
|

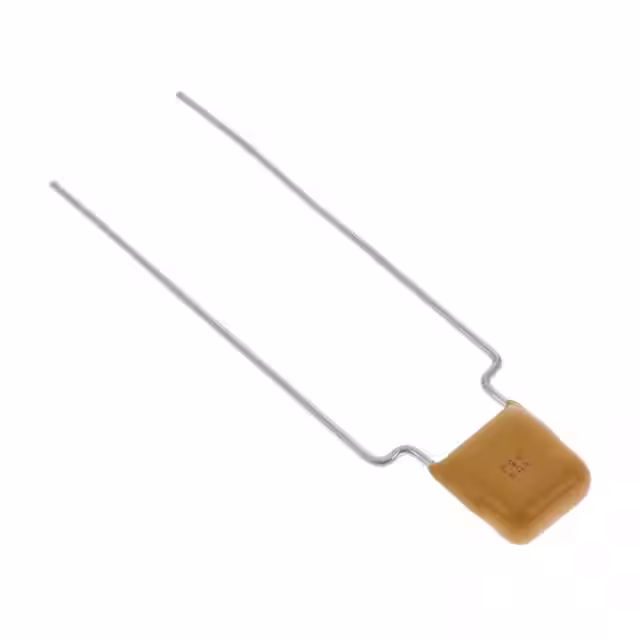

SR505A104JARCAP CER RADIAL |
870 |
|
Datasheet |
SkyCap® SR | Bulk | Active | 0.1 µF | ±5% | 50V | C0G, NP0 | -55°C ~ 125°C | - | - | General Purpose | - | Through Hole | Radial | 0.500" L x 0.200" W (12.70mm x 5.08mm) | 0.560" (14.22mm) | - | 0.400" (10.16mm) | Straight |
-2,54mm-Tan.jpg)
|
2220YA300563KJTS3XCAP CER 0.056UF 305VAC X7R 2220 |
6,546 |
|
Datasheet |
FlexiCap™ | Tape & Reel (TR) | Active | 0.056 µF | ±10% | 305VAC | X7R | -55°C ~ 125°C | DC Annex H, Humidity 3B Annex I, Soft Termination, High Voltage | X2 | Safety, Boardflex Sensitive | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.177" (4.50mm) | - | - |
.jpg)
|
700A102KTN50XT1KCAP CER 1000PF 50V C0G/NP0 0505 |
1,573 |
|
Datasheet |
ATC 700A | Tape & Reel (TR) | Active | 1000 pF | ±10% | 50V | C0G, NP0 | -55°C ~ 125°C | Low ESL | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 0505 (1313 Metric) | 0.055" L x 0.055" W (1.40mm x 1.40mm) | - | 0.057" (1.45mm) | - | - |
|
CKC21C143KJGLCAUTOCAP CER 0.014UF 1.7KV C0G 2220 |
1,073 |
|
Datasheet |
KC Link Auto C0G | Tape & Reel (TR) | Active | 0.014 µF | ±10% | 1700V (1.7kV) | C0G, NP0 | -55°C ~ 150°C | Low ESL, High Voltage, High Temperature | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | - | - | - |
|
2225Y6300334KZTCAP CER 0.33UF 630V 2225 |
291 |
|
Datasheet |
Hiteca™ | Tape & Reel (TR) | Active | 0.33 µF | ±10% | 630V | - | -55°C ~ 125°C | Low ESL, Soft Termination | - | Boardflex Sensitive | - | Surface Mount, MLCC | 2225 (5763 Metric) | 0.224" L x 0.248" W (5.70mm x 6.30mm) | - | 0.157" (4.00mm) | - | - |
|
|
C2225C152JGGACTUCAP CER 1500PF 2KV C0G/NP0 2225 |
2,737 |
|
Datasheet |
SMD Comm C0G HV | Tape & Reel (TR) | Active | 1500 pF | ±5% | 2000V (2kV) | C0G, NP0 | -55°C ~ 125°C | Low ESL, High Voltage | - | General Purpose | - | Surface Mount, MLCC | 2225 (5763 Metric) | 0.220" L x 0.252" W (5.60mm x 6.40mm) | - | 0.071" (1.80mm) | - | - |
|
|
100B820JTN500XT1KCAP CER 82PF 500V P90 1111 |
3,888 |
|
Datasheet |
Porcelain Superchip® ATC 100B | Tape & Reel (TR) | Active | 82 pF | ±5% | 500V | P90 | -55°C ~ 125°C | High Q, Low Loss, Low ESL | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 1111 (2828 Metric) | 0.110" L x 0.110" W (2.79mm x 2.79mm) | - | 0.102" (2.59mm) | - | - |
|
|
CKC18C144KWGLCAUTO7805CAP CER 0.14UF 650V C0G/NP0 1812 |
700 |
|
Datasheet |
KC Link Auto C0G | Tape & Reel (TR) | Active | 0.14 µF | ±10% | 650V | C0G, NP0 | -55°C ~ 150°C | Low ESL, High Voltage, High Temperature | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | - | - | - |
|

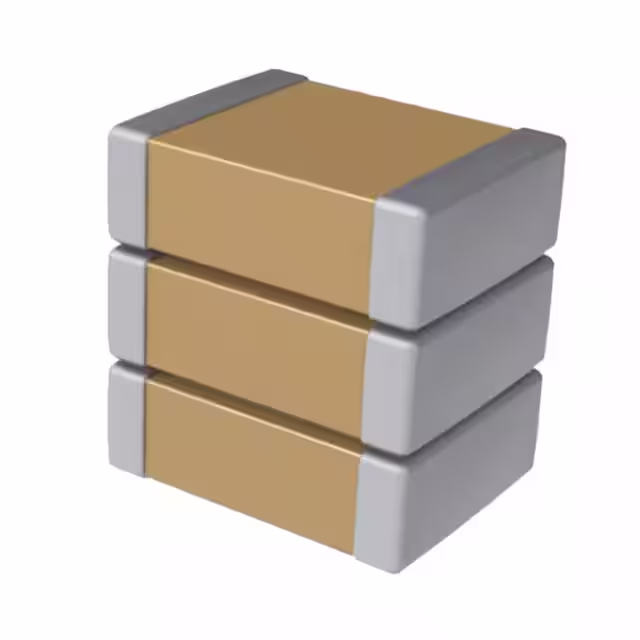

CKC18C453KDGLCAUTO7805CAP CER 0.045UF 1KV C0G/NP0 1812 |
700 |
|
Datasheet |
KC Link Auto C0G | Tape & Reel (TR) | Active | 0.045 µF | ±10% | 1000V (1kV) | C0G, NP0 | -55°C ~ 150°C | Low ESL, High Voltage, High Temperature | AEC-Q200 | Automotive | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | - | - | - |
-4,2mm-Tan.jpg)
|
2220YA250472MXTB16CAP CER 4700PF 250V X7R 2220 |
4,014 |
|
Datasheet |
FlexiCap™ | Tape & Reel (TR) | Not For New Designs | 4700 pF | ±20% | 250V | X7R | -55°C ~ 125°C | Soft Termination, High Voltage | X1, Y2 | Safety, Boardflex Sensitive | - | Surface Mount, MLCC | 2220 (5750 Metric) | 0.224" L x 0.197" W (5.70mm x 5.00mm) | - | 0.098" (2.50mm) | - | - |
|
|
800B180GT500XT1KCAP CER 18PF 500V NP0 1111 |
1,973 |
|
Datasheet |
ATC 800B | Tape & Reel (TR) | Active | 18 pF | ±2% | 500V | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Ultra Low ESR | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 1111 (2828 Metric) | 0.110" L x 0.110" W (2.79mm x 2.79mm) | - | 0.070" (1.78mm) | - | - |
.jpg)
|
1210BW106K500NGX110TCAP CER 10UF 50V X5R 1210 |
12,010 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 10 µF | ±10% | 50V | X5R | -55°C ~ 85°C | Bonding Mountable, Gold Flash Termination | - | SMPS Filtering | - | Surface Mount, MLCC, Epoxy | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | 0.110" (2.79mm) | - | - |
-0,36mm-Tan.jpg)
|
P62BNL820M5STMILLI-CAP - SMD MILLIMETER WAVE |
458 |
|
Datasheet |
Milli‐Cap® | Tape & Reel (TR) | Active | 82 pF | - | 50V | BN | -55°C ~ 125°C | High Q, Low Loss, Low ESL, Epoxy Mountable | - | General Purpose | - | Surface Mount, MLCC, Epoxy | 0603 (1608 Metric) | 0.058" L x 0.020" W (1.47mm x 0.51mm) | - | 0.022" (0.56mm) | - | - |
|
|
800A3R0BT250XT4KCAP CER 3PF 250V C0G/NP0 0505 |
4,413 |
|
Datasheet |
ATC 800A | Tape & Reel (TR) | Active | 3 pF | ±0.1pF | 250V | C0G, NP0 | -55°C ~ 125°C | Ultra Low ESR | - | RF, Microwave, High Frequency, Bypass, Decoupling | - | Surface Mount, MLCC | 0505 (1313 Metric) | 0.055" L x 0.055" W (1.40mm x 1.40mm) | - | 0.057" (1.45mm) | - | - |
,-4-PC-Pad.jpg)
|
1812Y1000334MXTE03CAP CER 0.33UF 100V X7R 1812 |
392 |
|
Datasheet |
FlexiCap™ | Tape & Reel (TR) | Active | 0.33 µF | ±20% | 100V | X7R | -55°C ~ 125°C | Low ESL (X2Y), Soft Termination | - | Bypass, Decoupling, Boardflex Sensitive | - | Surface Mount, MLCC | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | 0.083" (2.10mm) | - | - |
